• Model NO.：94867
• Style：Modern simplism style
• Base Type：LED+MPCB
• Technics：Precision Dewaxing Casting Process
• Voltage：24V
• Certification：CE, EMC, RoHS
• Lens：Optional Lens, Efficiency ≥ 85%
• Beam Angle：24,36,60,10X30 Degrees
• LED Chip：Optional CREE,Osram,Bridgelux
• Working Temperature：-20-40 Centigrade
• Glass：Tempered Glass T=10mm
• Other Models：30W Single Color, RGBW 4in1
• Transport Package：Shockproof Carton Box
• Specification：4PCS,CTN
• Trademark：JP Lighting
• Origin：Dongguan, Guangdong, China
• HS Code：94054090
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. 94867 Style Modern simplism style Base Type LED+MPCB Technics Precision Dewaxing Casting Process Voltage 24V Certification CE, EMC, RoHS Lens Optional Lens, Efficiency ≥ 85% Beam Angle 24/36/60/10X30 Degrees LED Chip Optional CREE/Osram/Bridgelux Working Temperature -20-40 Centigrade Glass Tempered Glass T=10mm Other Models 30W Single Color, RGBW 4in1 Transport Package Shockproof Carton Box Specification 4PCS/CTN Trademark JP Lighting Origin Dongguan, Guangdong, China HS Code 94054090 Production Capacity 10000PCS/Month

Product Description

IP68 Waterproof Mini Type Recessed Led Swimming Pool Light 12v Underwater Light

Product Description

IP68 30W RGBW 4in1 LED underwater light, led swimming pool light, led pond light, led pool light, swimming pool light, waterproof led light, waterproof underwater light, outdoor light, outdoor underwater light, lights for pool, embedded pool lighting, submersible lighting fixture

This 6 LEDs underwater light with mounting sleeve is beautifully shaped and powerful, it adopts RGB color change technology combined with pure white output to create billions of possible color choices in outdoor and underwater lighting applications.

Main Features1.Cast stainless steel 304# or 316# housing and polished front cover.2.Low working voltage DC24V, safe for underwater use.3.High light transmittance tempered glass and PMMA optical lens.4.Waterproof grade: IP68.5.BRIDGELUX/CREE/OSRAM LEDs are super bright, high efficiency, low power consumption.6.Extremely long service life: up to 50,000 hours.7.The standard rubber cable length is 2m. Longer lengths could be provided.8.Driver: Constant current output. Imported Japanese brand capacitor, long service life.9.Single color and RGBW 4in1 are available.
Main Specifications
Front Cover & Housing: Molding shaped 304#/316#/316L# stainless steel
LED Source: 6x5W single color / RGBW 4in1
Lens: Optical lens, efficiency ≥85%
Glass: Tempered glass T=10mm
Cable gland: IP-68 PG-11 copper and nickel coated
Light Color: Single color / RGBW 4in1 (W=3000K, 4000K, 6000K)
Working temperature: -20ºC to 40ºC
Driver: Constant current output
            Single color LED=1-circuit output
               RGBW 4in1 LED=4-circuit output
MCPCB: Aluminum, coefficient of heat conductivity≥2.0w/mk
Power cable: H05RN-F 2x0.75mm2 L=2m (for single color)
                      H05RN-F 5x0.75mm2 L=2m (for RGBW 4in1)
Mounting sleeve: Plastic

Product Models

Item No.	Lighting Source	Lens Beam Angle (°)	Consumption(Watt)	Input Voltage(V)	IK Rate
94869	6x5W RGBW 4in1 (W=3000K, 4000K, 6000K)	24°/36°/60°/10°x30°	30.6	DC24V	08
94867	6x5W LED	8°/12°/24°/36°/60°/10°x30°	35.5	DC24V	08

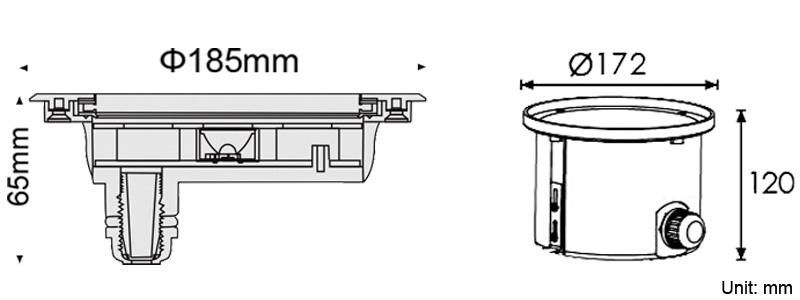

Product Dimension

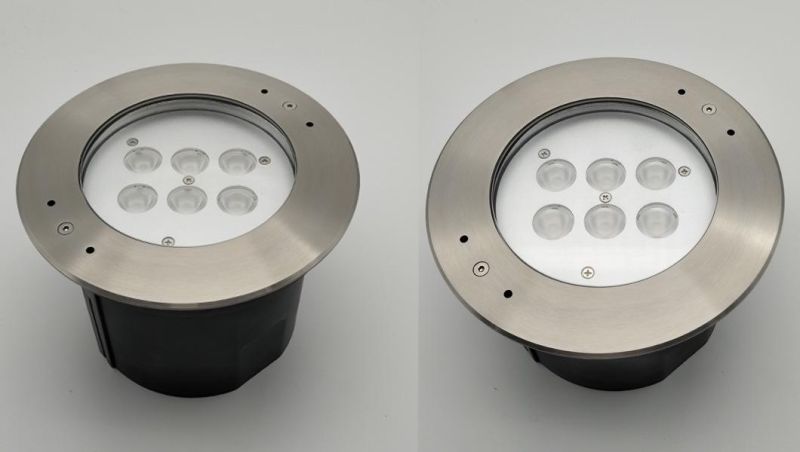

Product Image

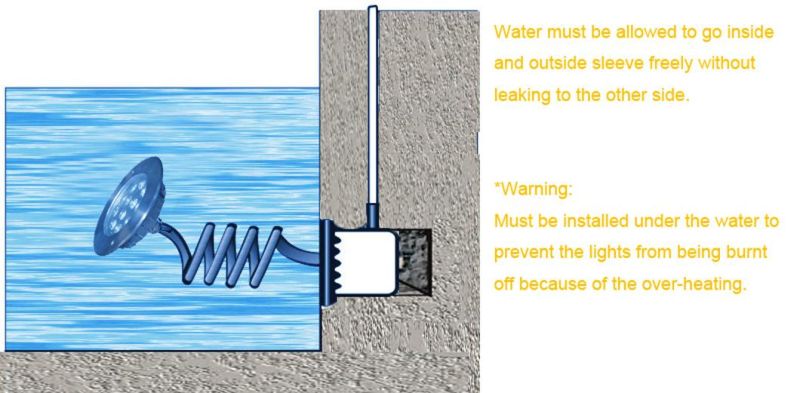

Product Installation

Production Test

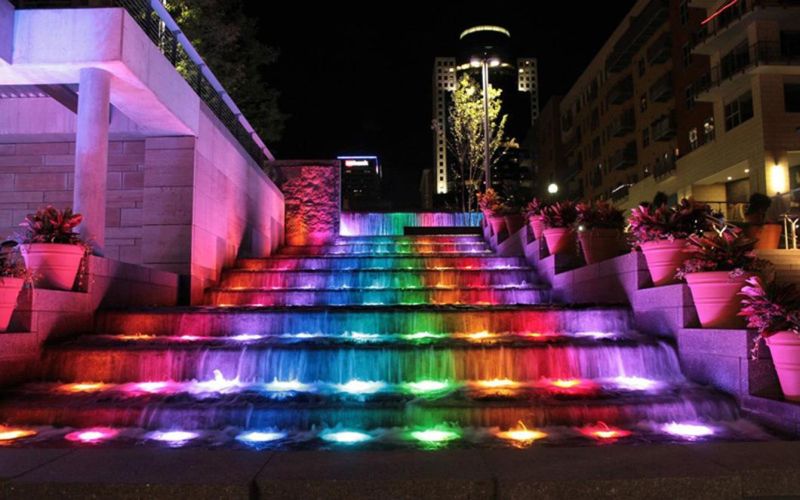

Product Application
These lights are used for any underwater lighting projects like fountains, waterfalls, water shows, music water fountains, swimming pools etc. (The underwater lights must always be submerged when operating to ensure proper heat dissipation)
