• Model NO.：94093
• Style：Modern simplism style
• Base Type：LED+MPCB
• Technics：Stainless Electrolytic Polishing
• Voltage：DC12V,DC24V
• Certification：CE, EMC, LVD, RoHS
• Working Lifetime：>50000hrs
• Beam Angle：8,15,25, 30,45,60,90 Degrees
• LED Chip：CREE,Bridgelux,Epistar
• Working Temperature：-20-40 Centigrade
• Driver：Built-in Constant Current Output
• Product Size：Dia170mm*H61mm
• Lighting Source：9X1w RGB
• Transport Package：Shockproof Carton Box
• Specification：4PCS,CTN
• Trademark：JP Lighting
• Origin：Dongguan, Guangdong, China
• HS Code：94054090
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. 94093 Style Modern simplism style Base Type LED+MPCB Technics Stainless Electrolytic Polishing Voltage DC12V/DC24V Certification CE, EMC, LVD, RoHS Working Lifetime >50000hrs Beam Angle 8/15/25/ 30/45/60/90 Degrees LED Chip CREE/Bridgelux/Epistar Working Temperature -20-40 Centigrade Driver Built-in Constant Current Output Product Size Dia170mm*H61mm Lighting Source 9X1w RGB Transport Package Shockproof Carton Box Specification 4PCS/CTN Trademark JP Lighting Origin Dongguan, Guangdong, China HS Code 94054090 Production Capacity 10000PCS/Month

Product Description

Promotional High Power Low Voltage 12V 24V Stainless Steel RGB Red Green Blue White Underwater Led Fountain Lights


These high power LED central ejective fountain lights are created to provide long-lasting and colorful fountain lighting for any various of applications. 9 LEDs could be made to emit warm white, cold white, neutral white, green, blue, red and changing RGB color. Each of the light is made of optical lens and front cover glass with high light transmittance >85%.

Main Features

1.Completely stainless steel SUS 304# or 316# housing, front cover & accessory.
2.Symmetrical light output. Single color and RGB for options.
3.IP68 rated waterproof, CE and RoHS proved.
4.9 pcs of high power CREE and OSRAM LEDs.
5.Extremely long service life: up to 50,000 hours.
6.High-strength step tempered glass, no fear of heavy pressure.
7.Dimmable, automatic colour change, DMX 512, DALI, 1-10 V controllable.
 Main Specifications
Front Cover & Housing: Molding shaped 304#/316#/316L# stainless steel
LED Source: 9x1W / 2W / 1W RGB / 2W RGB / 3W RGB3in1
Lens: Optical lens, efficiency ≥85%
Glass: Tempered glass T=10mm
Cable gland: IP-68 PG-11 copper and nickel coated
Light Color: Single color/ RGB
Working temperature: -20ºC to 40ºC
Driver: Constant current output
            Single color LED=3-circuit output
            RGB LED=3-circuit output
               RGB 3in1 LED=6-circuit output
MCPCB: Aluminum, coefficient of heat conductivity≥2.0w/mk
Power cable: H05RN-F 2x1.0mm2 L=2m (for Single color)
                      H05RN-F 4x0.75mm2 L=2m (for RGB)

Product Models

Item No.	Lighting Source	Lens Beam Angle (°)	Consumption(Watt)	Input Voltage(V)	IK Rate
94091	9x1W	8°/15°/20°/30°/45°/60°/90°	9.4	DC12V/DC24V	09
94092	9x2W	8°/15°/20°/30°/45°/60°/90°	19.2	DC12V/DC24V	09
94093	9x1W RGB	8°/15°/20°/30°/45°/60°/90°	9.0	DC12V/DC24V	09
94094	9x2W RGB	8°/15°/20°/30°/45°/60°/90°	17.4	DC12V/DC24V	09
94096	9x3W RGB 3in1	25°/30°/45°/60°/90°	26.1	DC24V	09

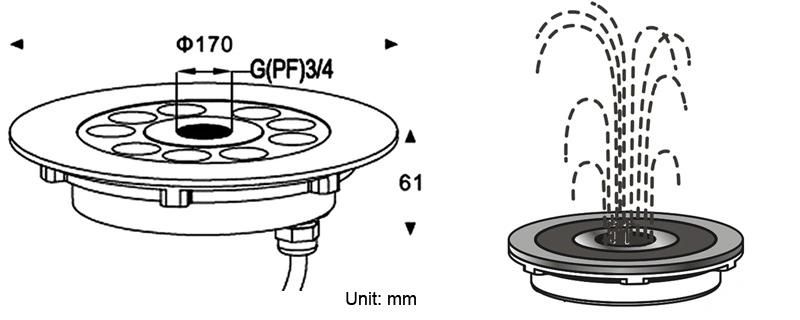

Product Dimension

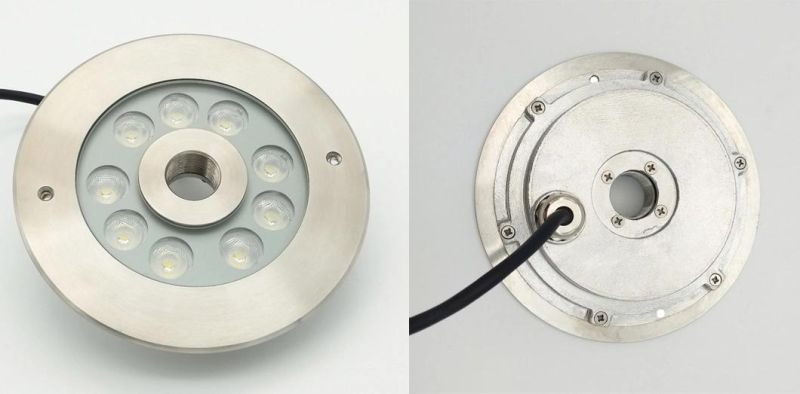

Product Image

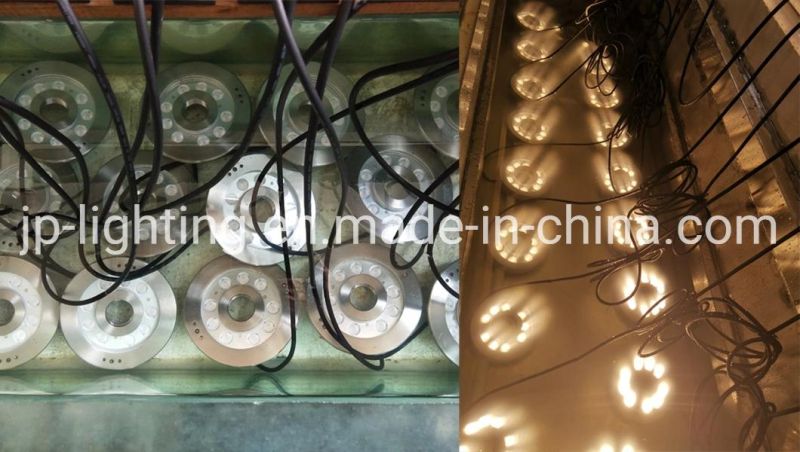

Production Test

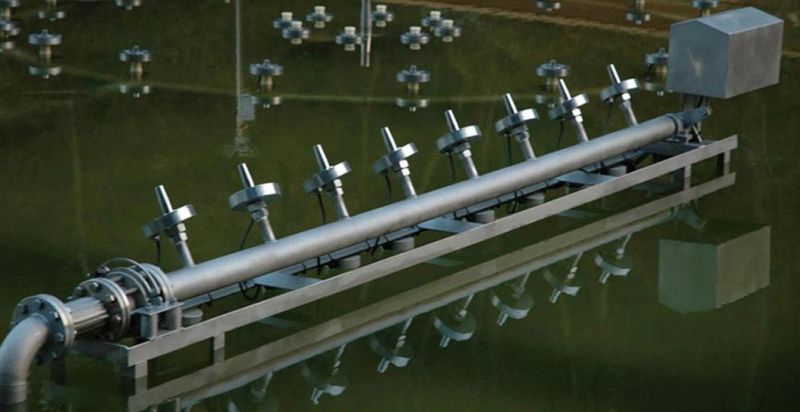

Product Installation

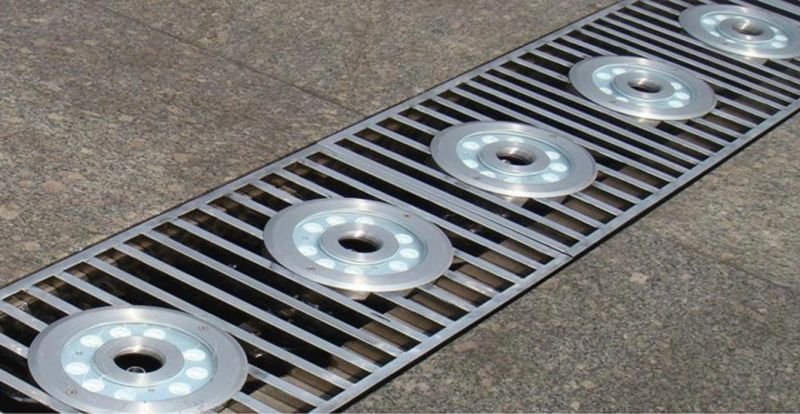

Dry Land Fountain Light (underground)
Pool Fountain Light (above ground)
*Warning:
Must be installed under the water to prevent the lights from being burnt off because of the over-heating.

Product Application

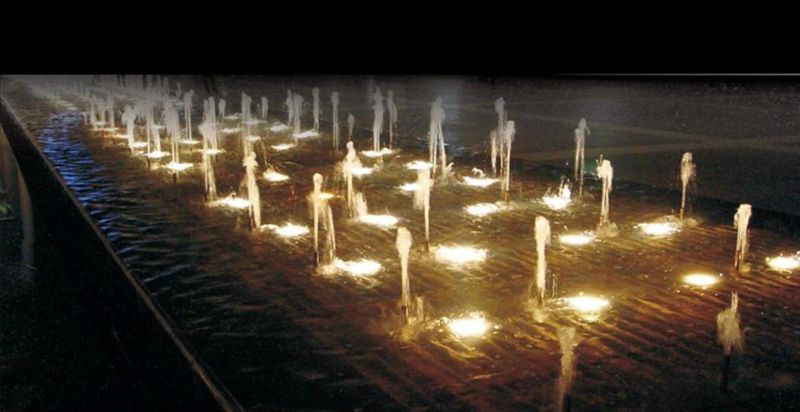

Central Ejective LED fountain light is the perfect solution for lighting water landscape, it is widely used in square fountain, swimming pool fountain, natatorium, water show, shopping center pool, water hotel fountain, seaside fountain, landscape lighting, etc.
