• Model NO.：942123
• Style：Modern simplism style
• Base Type：LED+MPCB
• Technics：Stainless Electrolytic Polishing
• Voltage：DC12V,DC24V
• Certification：CE, EMC, LVD, RoHS
• Working Lifetime：>50000hrs
• Beam Angle：8,15,25,30,45,60 Degree
• LED Chip：CREE,Bridgelux,Epistar
• Working Temperature：-20-40 Centigrade
• Driver：Built-in Constant Current Output
• Transport Package：Shockproof Carton Box
• Specification：4PCS,CTN
• Trademark：JP Lighting
• Origin：Dongguan, Guangdong, China
• HS Code：94054090
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. 942123 Style Modern simplism style Base Type LED+MPCB Technics Stainless Electrolytic Polishing Voltage DC12V/DC24V Certification CE, EMC, LVD, RoHS Working Lifetime >50000hrs Beam Angle 8/15/25/30/45/60 Degree LED Chip CREE/Bridgelux/Epistar Working Temperature -20-40 Centigrade Driver Built-in Constant Current Output Transport Package Shockproof Carton Box Specification 4PCS/CTN Trademark JP Lighting Origin Dongguan, Guangdong, China HS Code 94054090 Production Capacity 10000PCS/Month

Product Description

IP68 Rating Pond Light Led Underwater Mini Led Light Led Underwater Fountain Light For Fountain

This multi-wattage available submersible fountain light has 12 SMD LEDs with diameter of 200mm, deep 65mm, there is a G(PF) 1 1/2" threaded cut-out hole in the center (designed to insert the matched fountain nozzle).

The entire lamp is corrosion-resistant stainless steel, structurally waterproof with the silicone ring seal, so that these LED underwater lights are waterproof (IP68 rating) and submersible.

Main Features

1. Stainless steel 304# or 316#, front cover is polished stainless steel with step tempered 10mm thickness glass.
2. Single color and RGB color are available. Compatible with DMX-512 controllers for color changing.
3. Rated IP68 for underwater use, CE and RoHS proved.
4. CREE or OSRAM LEDs are super bright, high intensity and low power consumption.
5. Extremely up to 50,000 hours long service life.
6. Optical lens, efficiency >85%.
7. 2m rubber cable is included. Longer lengths are available for an extra charge.

Main Specifications
Front Cover & Housing: Molding shaped 304#/316# (316L# available as special order) stainless steel
LED Source: 12*1W / 2W / 1W RGB / 2W RGB / 3W RGB3in1
Lens: Optical lens, efficiency ≥85%
Glass: Tempered glass T=10mm
Cable gland: IP-68 PG-11 copper and nickel coated
Light Color: Single color/ RGB
Working temperature: -20ºC to 40ºC
Driver: Constant current output
            Single color LED=1-circuit output
            RGB 3in1 LED=3-circuit output
MCPCB: Aluminum, coefficient of heat conductivity≥2.0w/mk
Power cable: H05RN-F 2x1.0mm² L=2m (for Single color)
                      H05RN-F 4x0.75mm² L=2m (for RGB)

Product Models

Item No.	Lighting Source	Lens Beam Angle (°)	Consumption(Watt)	Input Voltage(V)	IK Rate
942121	12x1W	8°/15°/20°/30°/45°/60°/90°	12.4	DC12V/DC24V	09
942122	12x2W	8°/15°/20°/30°/45°/60°/90°	24.6	DC12V/DC24V	09
942123	12x1W RGB	8°/15°/20°/30°/45°/60°/90°	12.0	DC12V/DC24V	09
942124	12x2W RGB	8°/15°/20°/30°/45°/60°/90°	23.5	DC12V/DC24V	09
942126	12x3W RGB 3in1	8°/15°/20°/30°/45°/60°/90°	35.4	DC12V/DC24V	09

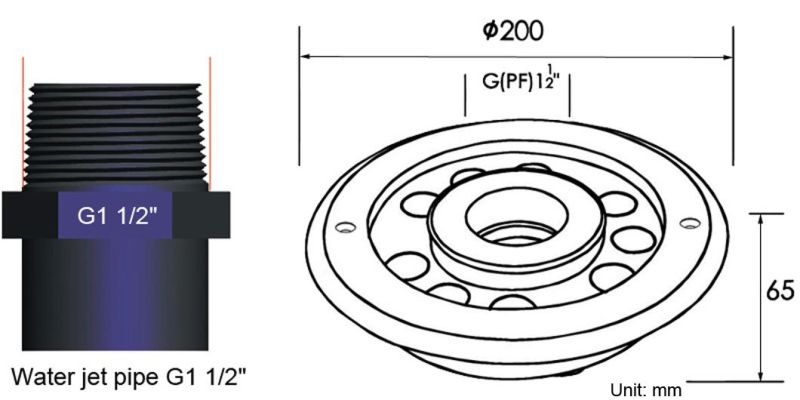

Product Dimension

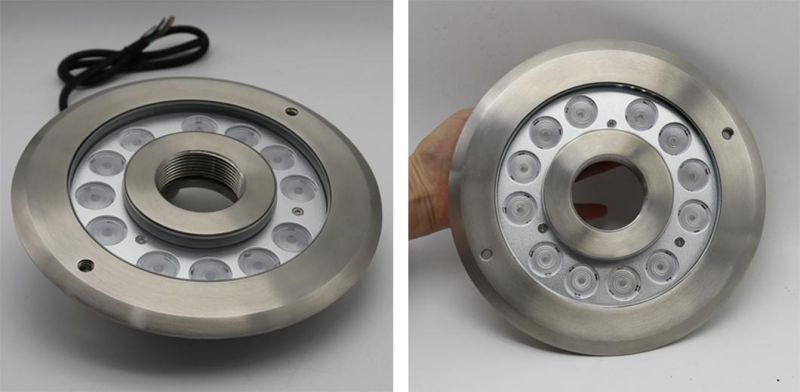

Product Image

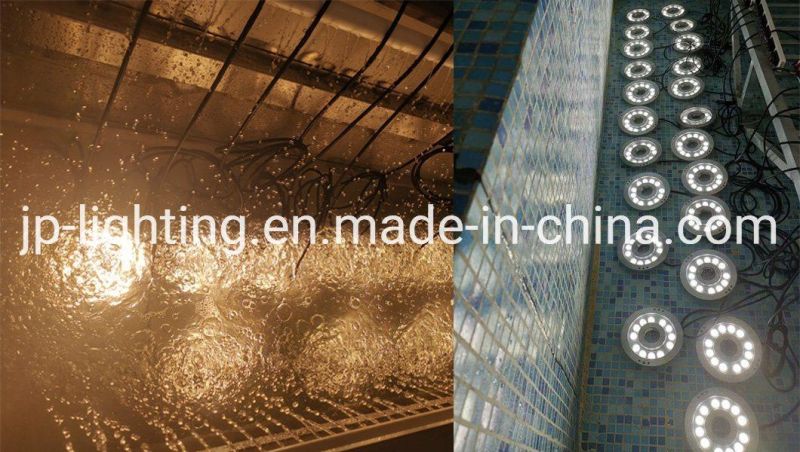

Production Test

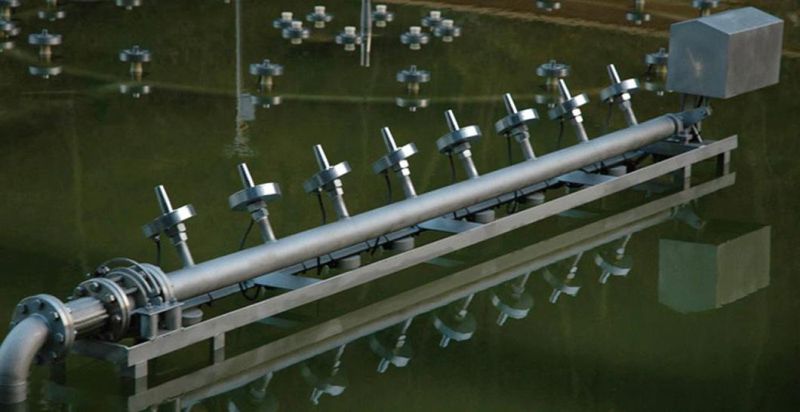

Product Installation

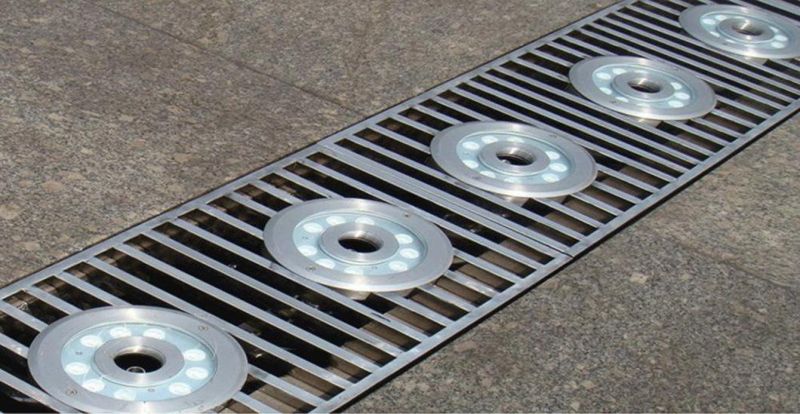

Dry Land Fountain Light (underground)
Pool Fountain Light (above ground)
*Warning:
Must be installed under the water to prevent the lights from being burnt off because of the over-heating.

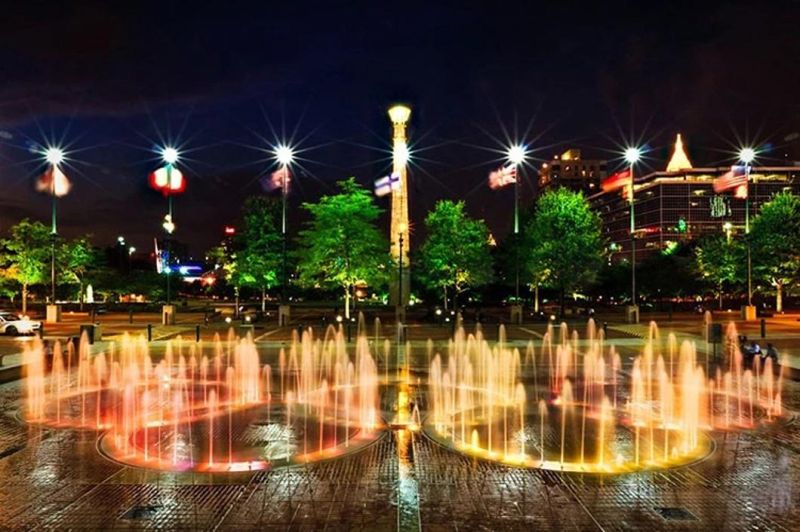

Product Application
Joy and Partner's underwater LED fountain lights are bright, energy-saving, and beautifully shaped, they are perfect solution for almost any underwater application. It is ideal for installation in ponds, pools, squares, aquariums, waterfalls, shopping malls, fountains, docks, and in marine environments.
