• Model NO.：WFL13
• Style：Modern simplism style
• Base Type：Weefine Design
• Technics：Chrome-plating
• Voltage：12V
• Certification：CE, EMC, FCC, LVD, RoHS
• Mounting：M67 X P0.75
• Depth Rated：60m
• Weight：300g
• Dome Lens：Optical Grade Polycarbonate Resin
• Glass / Coating：Optical Glass , Multi-Layer Bbar Coating
• Lens Barrel：Aluminum with Type II Anodizing
• Lens Type：Automatic
• Focus Mode：Af, Mf
• Transport Package：Cartons
• Specification：72* 32 mm
• Trademark：Weefine
• Origin：Foshan, China
• HS Code：9002113900
• Production Capacity：5000PCS, Per Month

Basic Info.

Model NO. WFL13 Style Modern simplism style Base Type Weefine Design Technics Chrome-plating Voltage 12V Certification CE, EMC, FCC, LVD, RoHS Mounting M67 X P0.75 Depth Rated 60m Weight 300g Dome Lens Optical Grade Polycarbonate Resin Glass / Coating Optical Glass / Multi-Layer Bbar Coating Lens Barrel Aluminum with Type II Anodizing Lens Type Automatic Focus Mode Af, Mf Transport Package Cartons Specification 72* 32 mm Trademark Weefine Origin Foshan, China HS Code 9002113900 Production Capacity 5000PCS/ Per Month

Product Description

Production Description


WEEFINE Diving Gear WFL13 is a premium underwater equipment close-up lens.Diving supplies comes with a +18 diopter (Air and Underwater) in optical power and allow the close-up shooting in a very short object distance (30mm-53mm).

Diving Equipment WFL13 is designed by 3 high quality optical glasses with an achromatic doublet.This achromatic helps to reduce the axle chromatic aberration.

Features

* Magnification: x3 Macro Lens
* Optical power in Water: +18 dioptres
* Coated with broadband anti-reflecton coating
* M67x P0.75 thread mounting
* Fit for M67 waterproof housing
* Aluminum body Hard anodized coated 40 microns
* Two flat glass BK7 with anti scratch and anti-glare
* Focus range: 30~53mm
*  Allow the close-up shooting in a very short object distance (30~53mm)
* Compatible cameras: Optimized for sensor sizes 36 mm x 24 mm (135 mm full frame)
* Depth rated to 60m



Specification

Model	WFL13
Lens Construction	3 elements; 3 groups
Compatible Camera (Up to)	Sensor Size: 18mm x 13.5mm
Diopter (Underwater Focal Length)	+18(55.2mm)
Focusing Range	30mm-53mm
Max.Magnification	3 x
Glass	Optical Glass
Coating	Multi-Layer BBAR Coating
Lens Barrel	Aluminum with Type II Anodizing
Mounting	M67 x P0.75
Dimension	⊘72 x 32 mm
Weight (Air)	300g
Weight (Underwater)	125g
Depth Rate	60m (197ft)

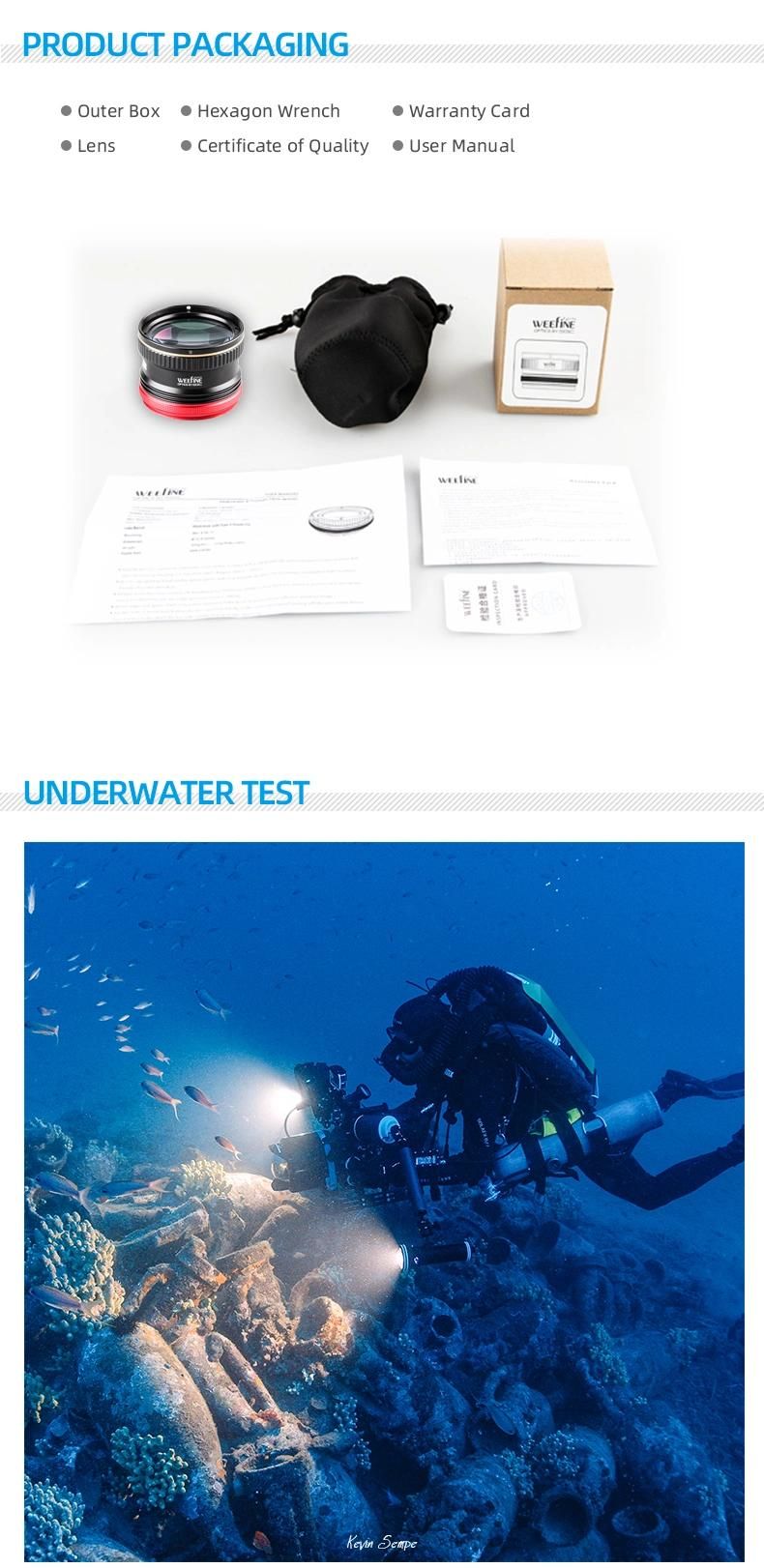

Package

1X Lens
1X User Manual
1X Warranty Card
1X Certificate of Quality
1X Hexagon Wrench
1X Outer Box


Application

Underwater for photography in Ocean, Freshwater lake, sea, swimming pool, river.


Product Details

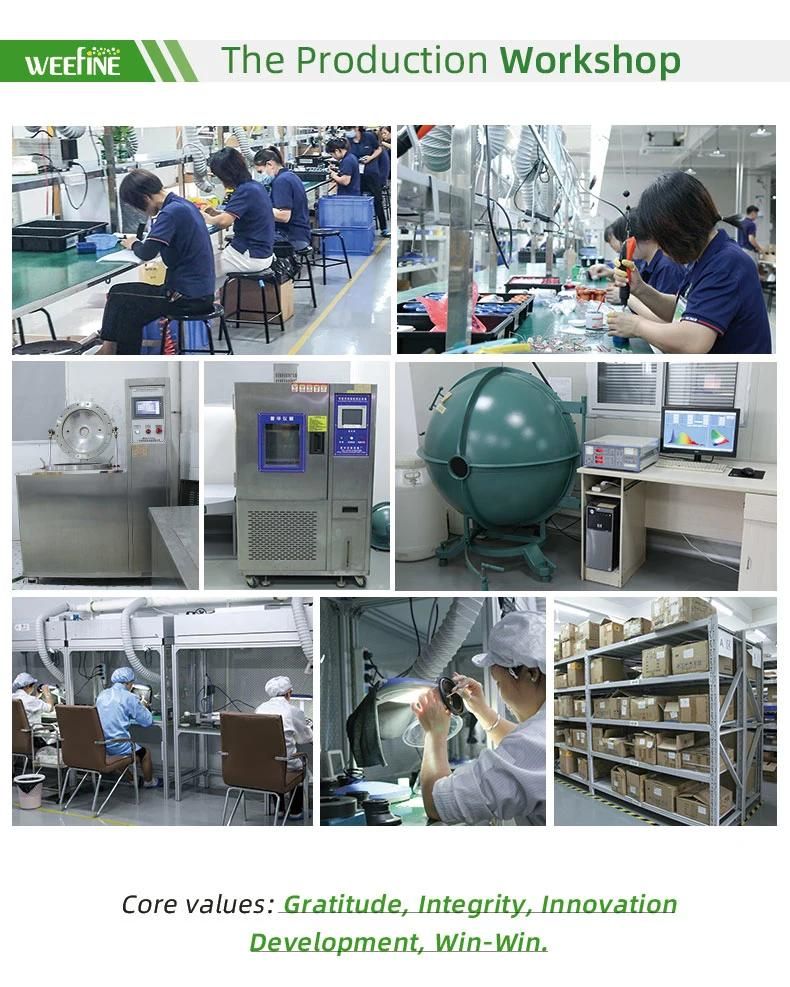

Weefine Company Presentation
