Hard Rigid 2835 5630 LED Strip DC12V 72LEDs 50cm 100cm LED Light Bar for Kitchen Under Cabinet Showcase
MSS LED Lighting Co., Ltd.- Power：8W 10W 12W
- Color Temperature：White 2800K 4000K 6500K 10000K
- Emitting Color：White
- Installation Mode：Backtape Stick or Screw Fix
- IP Rating：IP33
- Input Voltage：12V 24V
Base Info
- LED Chips Brand：Epistar
- Certification：UL, RoHS, CE
- LED Q′ty：120,M
- Chip：SMD 2835
- Cuttable：25mm
- CRI：90
- Lumens：130lm,Watt
- Transport Package：400PCS,Box
- Specification：110*25*25cm
- Trademark：MSS,OEM
- Origin：China
- HS Code：9405429000
- Production Capacity：1, 000, 000PCS,Month
Description
Basic Info.
LED Chips Brand Epistar Certification UL, RoHS, CE LED Q′ty 120/M Chip SMD 2835 Cuttable 25mm CRI 90 Lumens 130lm/Watt Transport Package 400PCS/Box Specification 110*25*25cm Trademark MSS/OEM Origin China HS Code 9405429000 Production Capacity 1, 000, 000PCS/MonthProduct Description

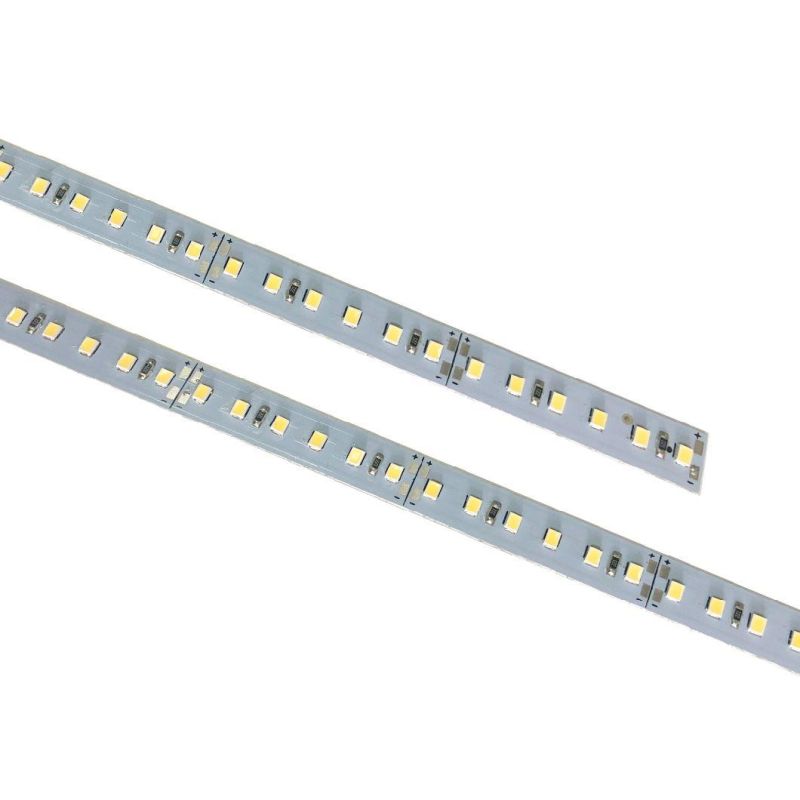

Ultra-bright 130lm/W 8mm 10mm 12mm PCB 12V 24V Led Rigid Strip Smd 2835 5630 5050 Led Rigid Light Bar Strips for Cabinet lightFeatures:
1) Assembled with PCB hard boards,it is convenient to process and install for cabinet and wall etc.
2) The LED rigid strip bar has 30 LEDs,36 LEDs, 60 LEDs 72 LEDs, and 120 LEDs and support customized.
3) DC 12V 3led or 24V 6led cuttable
4) Aluminium PCB ultra thick 1.2mm ~1.6mm
5) Ra 90, high reliability and excellent color performance
6) 130lm-150lm/watt, high brightness at same power consumption.
7) Widely used for jewelry display lighting, reveal ark lighting, ambry lighting, chest lighting etc.
Specifications:
| Model | RGL100WA |
| LED Qty | 120leds/m |
| LED Type | Epistar |
| LED Color | White |
| Input Voltage | 12V DC / 24V DC |
| Watt | 10W/meter |
| Luminous Efficiency | 130-150lm/W |
| Dimension | W8*L990mm or custom size |
| Color Temperature | Warm white 2800-3200K |
| Natural white 4000-4500K | |
| Cool white 6000-6500K | |
| Light Efficiency | >85% |
| Beam Angle | 120° |
| Working Temperature | -40°C ~ +50°C |
| Life span | 50000hrs |
| Certificate | CE, RoHS |
| IP Grade | IP33 |
| PCB Color | Copper / White / Black |
| Installation way | Screw or Back adhsive |

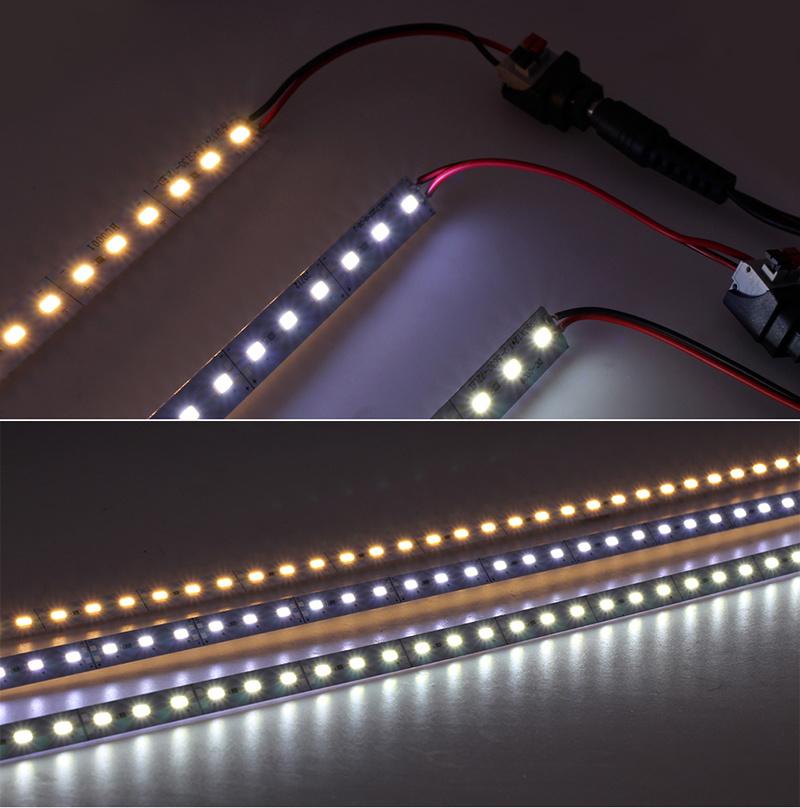

Different CCT:

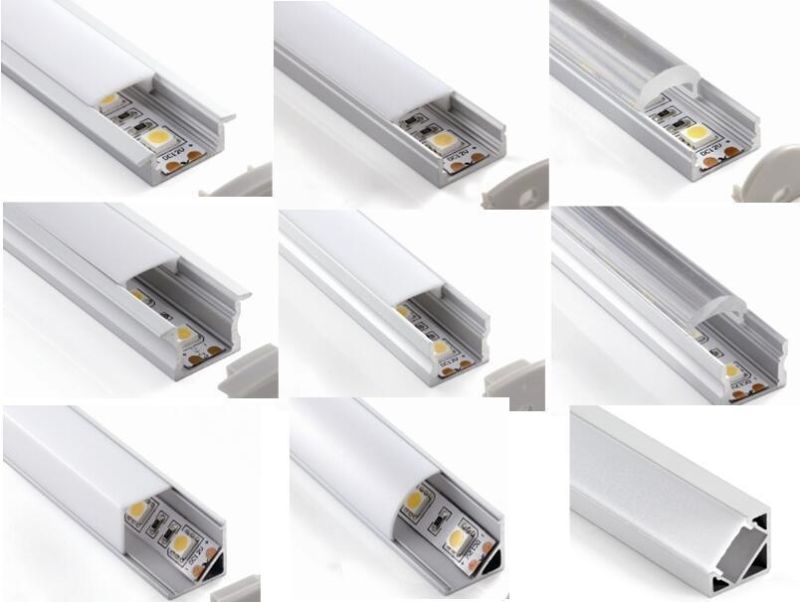

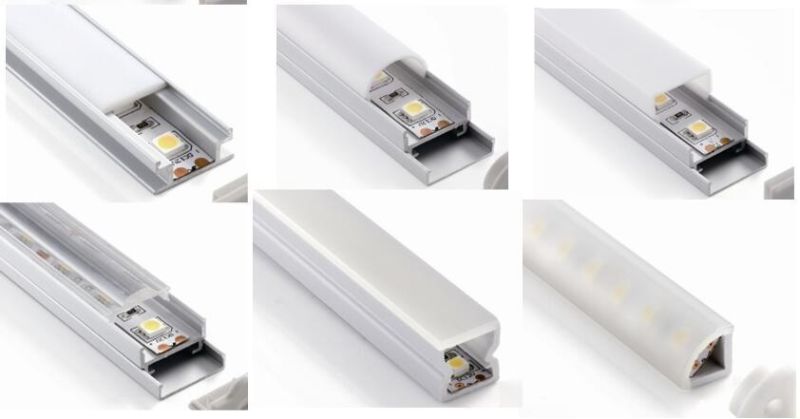

Optional Aluminium profile:

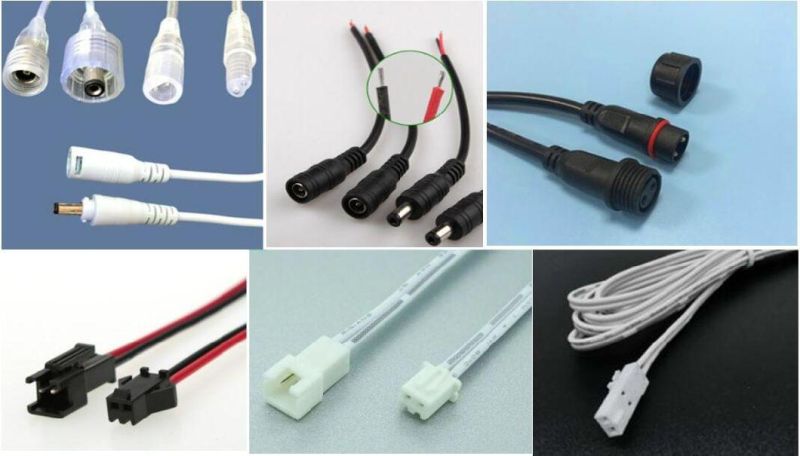

Male or female connectors:
Certificates:

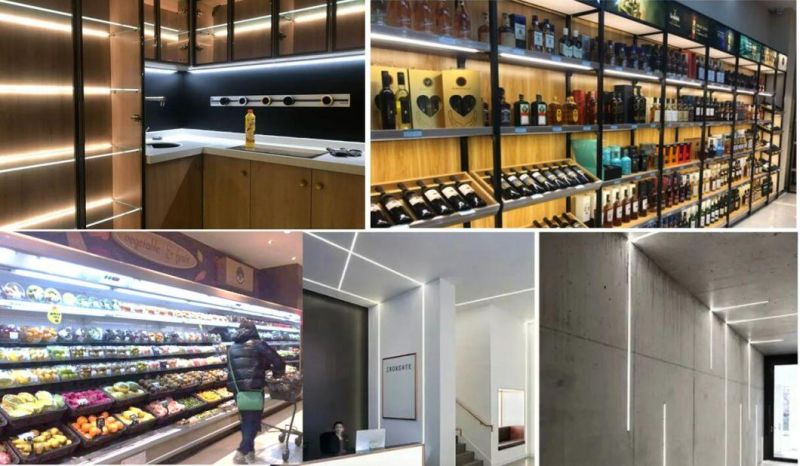

Application:
>Architectural lights for canopy, corridor, window and archway
>Advertising board lighting, Backlight or edge lighting for signage
>Auditorium walkway lighting
>Stairway lighting & decoration
>Showcase, under-cabinet lighting
>Decorative lights for holiday, event, show, exhibition
>Bar and freezer cabinets
>Cove lighting
