• LED Chips Brand：Epistar
• Certification：UL, RoHS, CE
• LED Q′ty：120,M
• Chip：SMD 2835
• Cuttable：25mm
• CRI：90
• Lumens：130lm,Watt
• Transport Package：400PCS,Box
• Specification：110*25*25cm
• Trademark：MSS,OEM
• Origin：China
• HS Code：9405429000
• Production Capacity：1, 000, 000PCS,Month

Basic Info.

LED Chips Brand Epistar Certification UL, RoHS, CE LED Q′ty 120/M Chip SMD 2835 Cuttable 25mm CRI 90 Lumens 130lm/Watt Transport Package 400PCS/Box Specification 110*25*25cm Trademark MSS/OEM Origin China HS Code 9405429000 Production Capacity 1, 000, 000PCS/Month

Product Description

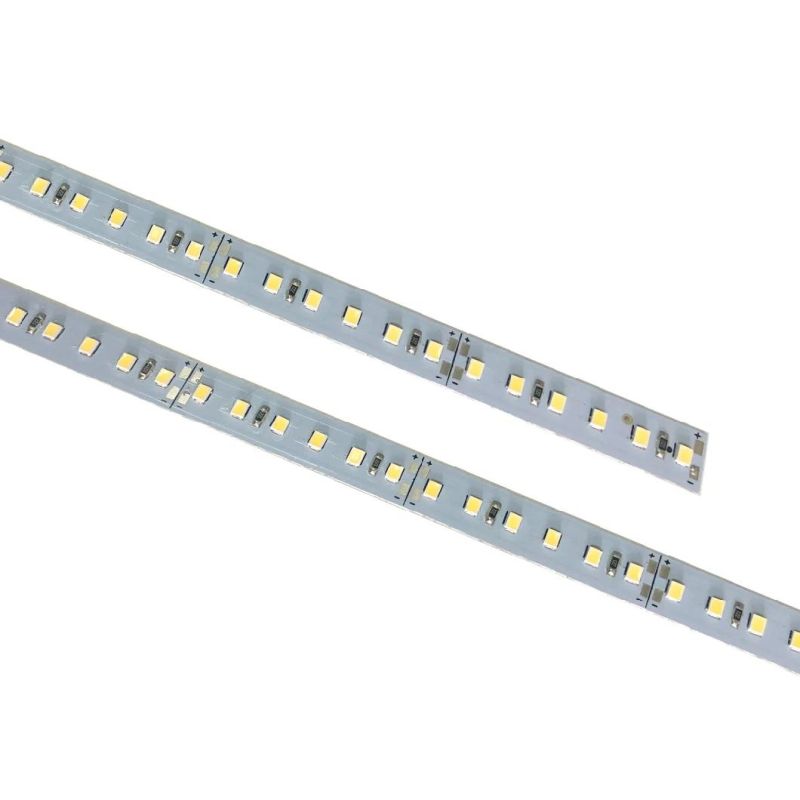

Ultra-bright 130lm/W 8mm 10mm 12mm PCB 12V 24V Led Rigid Strip Smd 2835 5630 5050 Led Rigid Light Bar Strips for Cabinet light

Features:

1) Assembled with PCB hard boards,it is convenient to process and install for cabinet and wall etc.
2) The LED rigid strip bar has 30 LEDs,36 LEDs, 60 LEDs 72 LEDs, and 120 LEDs and support customized.
3) DC 12V 3led or 24V 6led cuttable
4) Aluminium PCB ultra thick 1.2mm ~1.6mm
5) Ra 90,  high reliability and excellent color performance
6) 130lm-150lm/watt, high brightness at same power consumption.
7) Widely used for jewelry display lighting, reveal ark lighting, ambry lighting, chest lighting etc.


Specifications:


Model	RGL100WA
LED Qty	120leds/m
LED Type	Epistar
LED Color	White
Input Voltage	12V DC / 24V DC
Watt	10W/meter
Luminous Efficiency	130-150lm/W
Dimension	W8*L990mm or custom size
Color Temperature	Warm white 2800-3200K
	Natural white 4000-4500K
	Cool white 6000-6500K
Light Efficiency	>85%
Beam Angle	120°
Working Temperature	-40°C ~ +50°C
Life span	50000hrs
Certificate	CE, RoHS
IP Grade	IP33
PCB Color	Copper / White / Black
Installation way	Screw or Back adhsive

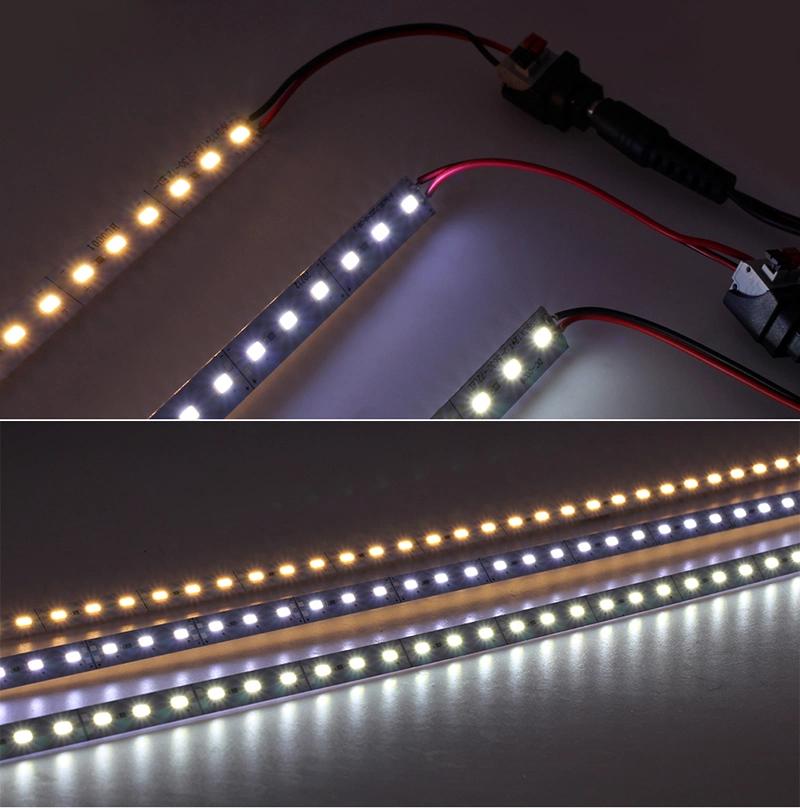

Different CCT:

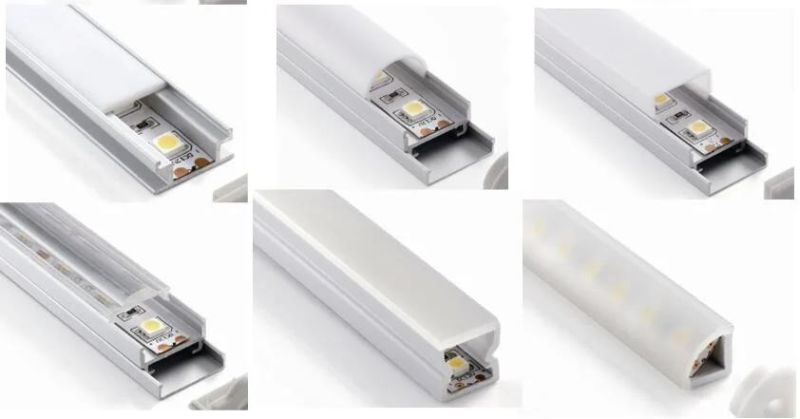

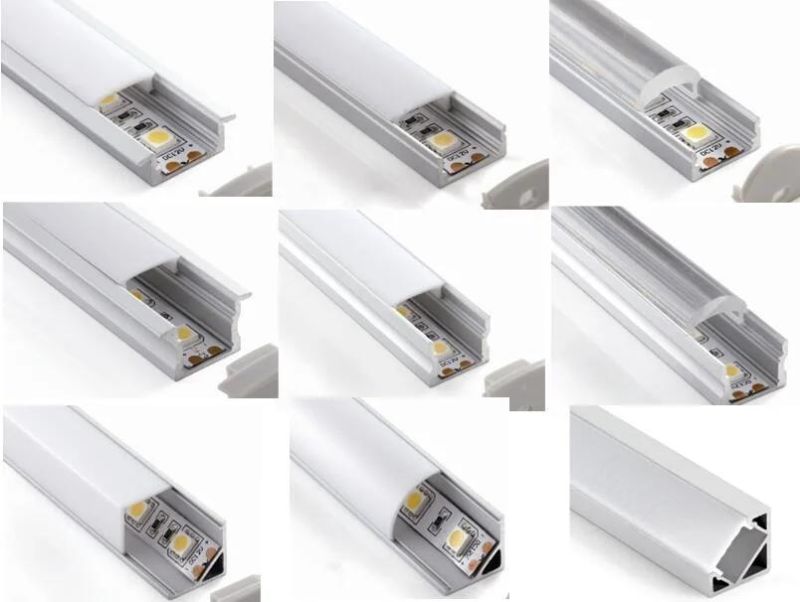

Optional Aluminium profile:

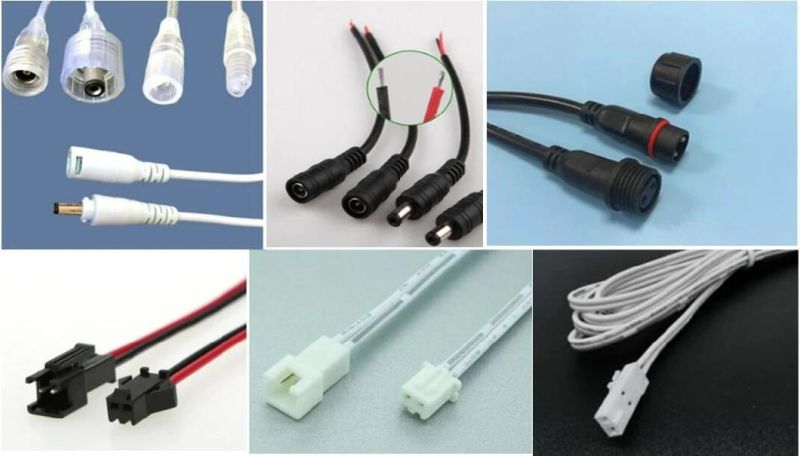

Male or female connectors:


Certificates:

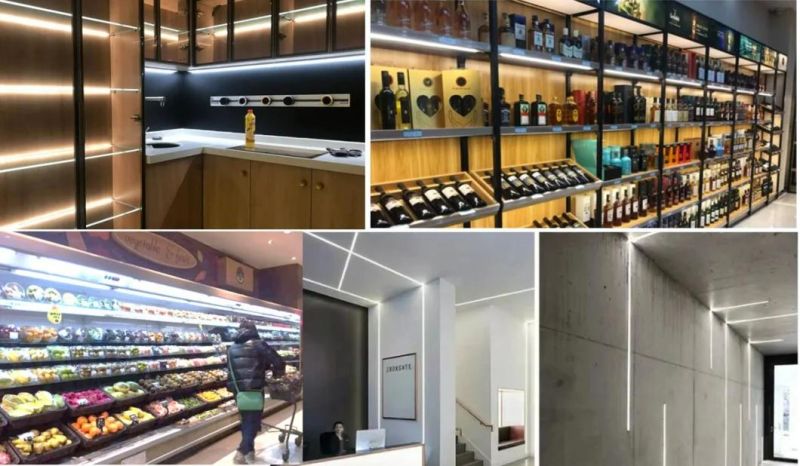

Application:

>Architectural lights for canopy, corridor, window and archway
>Advertising board lighting, Backlight or edge lighting for signage
>Auditorium walkway lighting
>Stairway lighting & decoration
>Showcase, under-cabinet lighting
>Decorative lights for holiday, event, show, exhibition
>Bar and freezer cabinets
>Cove lighting
