• Model NO.：TY-G-200W-S
• Warranty：3 Years
• Housing Material：Film
• Life：50000h
• LED Chips：LED Taoyuan
• Certification：CE, RoHS, EMC, LVD
• Voltagevf(V)：32-34V
• Transport Package：2PCS
• Trademark：UVTaoYuan
• Origin：Shenzhen, China
• HS Code：901390200
• Production Capacity：50000 Pieces,Year

Basic Info.

Model NO. TY-G-200W-S Warranty 3 Years Housing Material Film Life 50000h LED Chips LED Taoyuan Certification CE, RoHS, EMC, LVD Voltagevf(V) 32-34V Transport Package 2PCS Trademark UVTaoYuan Origin Shenzhen, China HS Code 901390200 Production Capacity 50000 Pieces/Year

Product Description

1.  LED Grow Light Chip380-840nm 30-100W Product parameter table:

Part Number	Emitted Color	VoltageVf(V)	Current(mA)	Wave Length(nm)	Output power(LM)	Angle 2θ 1/2
TY-G-200W	Pink	30-34V	3400-3500mA	380-840nm	5200-2600LM	120

2.Full spectrum 30-200w led grow chip
LED grow chip details:
Power :30-200W
Chip Qty:200pcs
Chip brand: Epileds
Holder:high quality red copper holder
Wire:pure 1.2mm gold wire
Current:3.5A
Voltage:30-34V

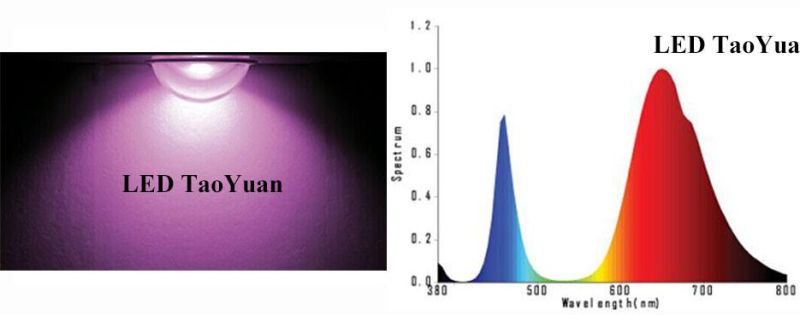

Color ratio:full spectrum 380nm-840nm
Lifespan:50000h

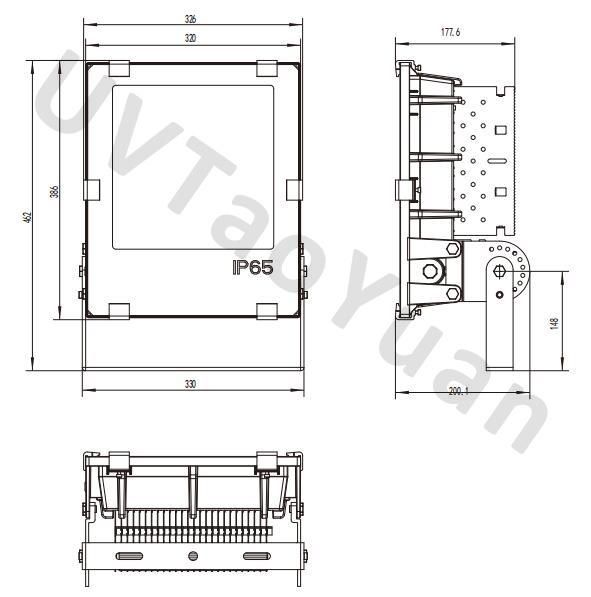

Casing Dimensions(Unit:mm)

Application:

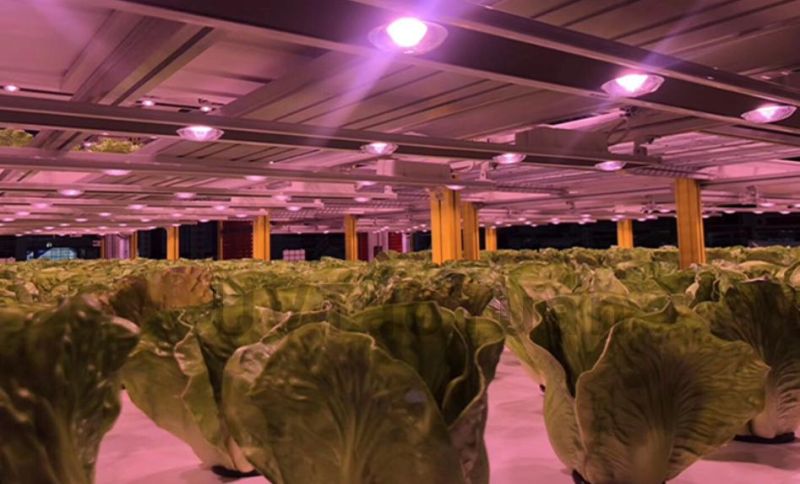

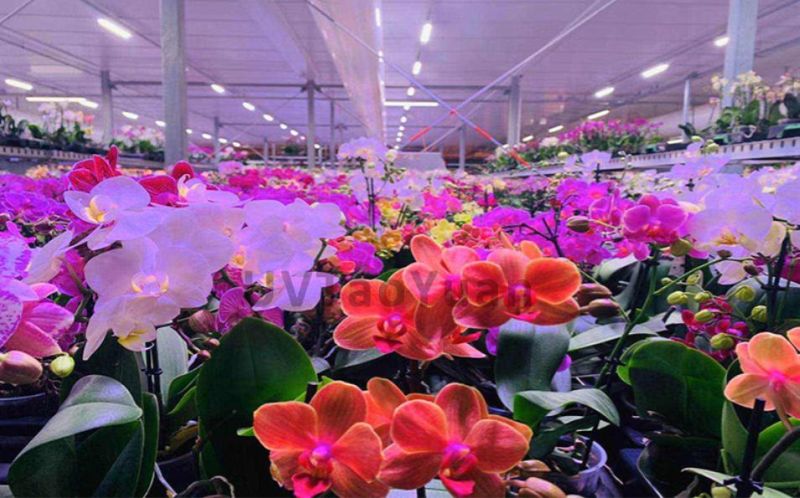

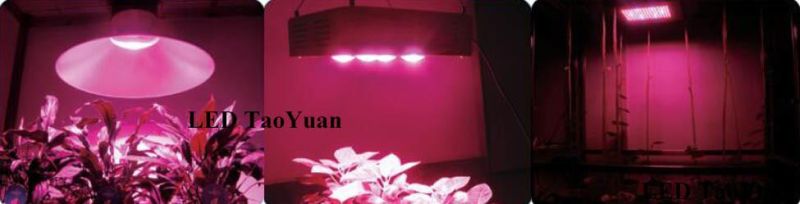

1. Supplementary light for plant growing . In providing of sufficient photosynthesis for plants according to different plants&environments.to guarantee healthy grow and energy saving.
2. Flowering phase controlling.Providing the special light spectrums for plant flowering.controlling the flower cycle in order to adjust the duration of plant flowering.
3. Seeding & tissue cultivation.Provide even and continual seeding light spectrum .shorten the cycle of plant seeding.ensure the consistency of seedlings growth.
4. Special growing.Providing the ideal lighting environment under the dark or gloomy environment.i.e. aerospace.neurotic environment.medical plant indoor growing,etc.

Advantages:

1. Environmental protection. LED grow light.no pollution.no mercury like fluorescent tube,so popular for vegetables and fruits growing.
2. Energy saving LED grow light .they only provide the spectrum demanded for plants growing and flowering.Remove the part which do not take part in photosynthesis. It save energy >70%.,compared with traditional bulb,HPS,HID lights.
3. Cold light source.LED do not have thermal radiation which harmful to plants.
4. Long Lifespan.LED's lifespan could reach 100.000h in theory. Traditional fluorescent/incandescent/HPS/HID lights only have 1000- more hours.

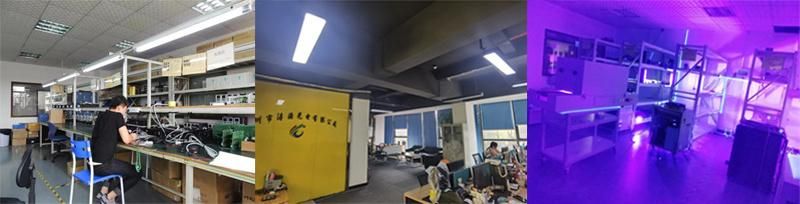

TAOYUAN ELECTRON (HK) LIMITED is specializing in the production and sales. Our main products include
high power LED,COB LED,UV LED series (LED 1W, LED 3W, LED 5W, 10W, LED 30W, LED 50W, LED 100W),
LED Flood lights, LED Drivers,UV curing lamps and LED light strip. Collected advantages of exquisite technology
and experienced talents, we are committed to further researching and manufacturing, to create a new LED world.
