Home > Product > LED Explosion-proof Light

12-15 mm Thick Temper Glass and 6 mm Flame Proof Housing for Atex Iecex Certificate Explosion Proor Ex Lighting Fixture and IP66 with Beam Angle 60 / 90 / 120

LCD (HK) -CESP LIGHTING CO., LIMITED
  • Lamp Body Material：Aluminum Alloy
  • IP Rating：IP66
  • Base Type：CREE LEDs Engine
  • Irradiated Area：≥30m²
  • Input Voltage：220v
  • Power：60-100w

Base Info

  • Model NO.：LCD-GYD780-50,80,100W
  • Color Temperature：3000K 4000K 6500K
  • Emitting Color：Warm White
  • LED Chips Brand：CREE
  • Certification：CCC, CE, C-tick, EMC, Energy Star, ETL, FCC, FDA, LVD, PSE, RoHS, SAA, UL, Iecex, Atex, cUL, TUV
  • Transport Package：Carton Box
  • Specification：365*420*60mm
  • Trademark：LCD brand
  • Origin：Shenzhen City, China
  • HS Code：9405409000
  • Production Capacity：50000PCS , Year

Description

50W / 80W /100W ATEX & IECEx Flood & high bay lightLCD-GYD780-50/80/100LEDsBrand: CreeCCT: 3000k, 4000k, 6000KEfficiency: 135lm/wLumen: 6250-13500lmCRI:75Test: LM80Beam Angle60° / 90° / 120° degreeDriverBrand: MeanwellPF: 0.95Efficiency: 90%Voltage: 100~277vAC or 12-32VDCFrequency: 50/60HzCurrent: 1.44 AInstructureMaterial: 12mm flame proof Aluminum alloy + 15mm Temple glassConnecting terminals: 3 cores standardGland: 1 x M25 or 1xM20Support: BracketWaterproofIP66ATEX InformationCertificate: TUV 18 ATEX 8298 XMarks: D II 2 G Ex db IIB T6 Gb / D II 2 D Ex tb IIIC T80°C Db IP66Zone 1& 21, 2 & 22IECEx InformationCertificate: IECEx TUR 18.0064 XMarks: Ex db IIB T6 Gb/ Ex tb IIIC T80°C DbZone 1& 21, 2 & 22Working Temp.:T -30 °C up to +55 °CWeight10KGWarranty5 years

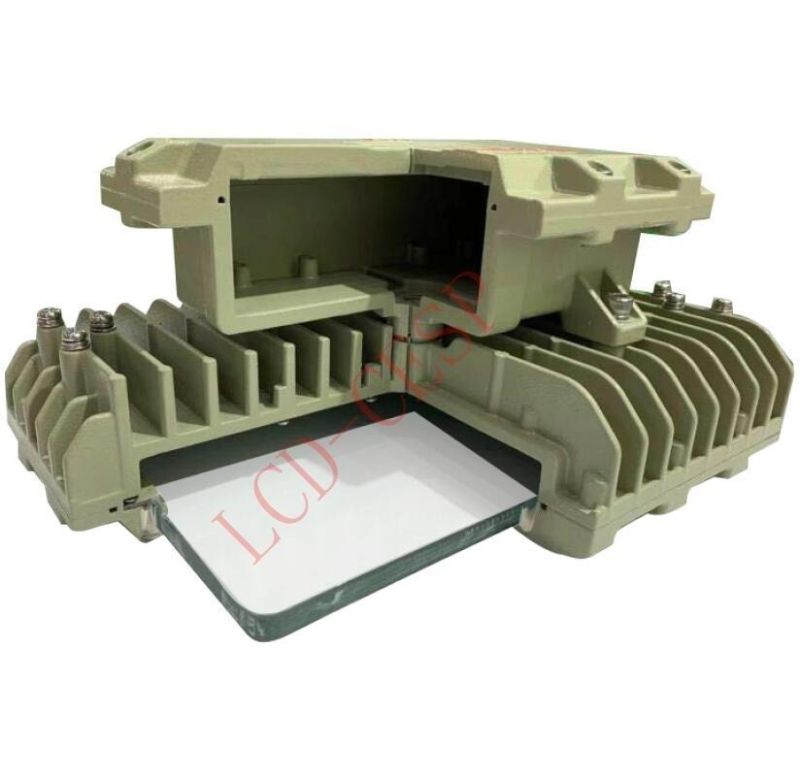

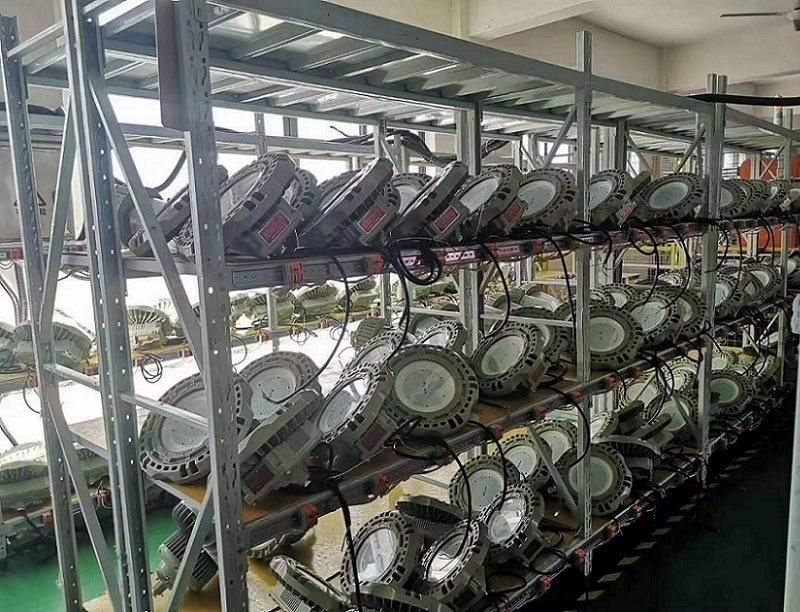

Product Pictures:
12-15 mm Thick Temper Glass and 6 mm Flame Proof Housing for Atex Iecex Certificate Explosion Proor Ex Lighting Fixture and IP66 with Beam Angle 60 / 90 / 120
Installation
• Mounting options include:
• Adjustable U-Bracket for ceiling, wall, etc.
• Pendant
• For installations where power surge may be possible, NICOR recommends installing additional
surge protection at the electrical distribution panel.

12-15 mm Thick Temper Glass and 6 mm Flame Proof Housing for Atex Iecex Certificate Explosion Proor Ex Lighting Fixture and IP66 with Beam Angle 60 / 90 / 120

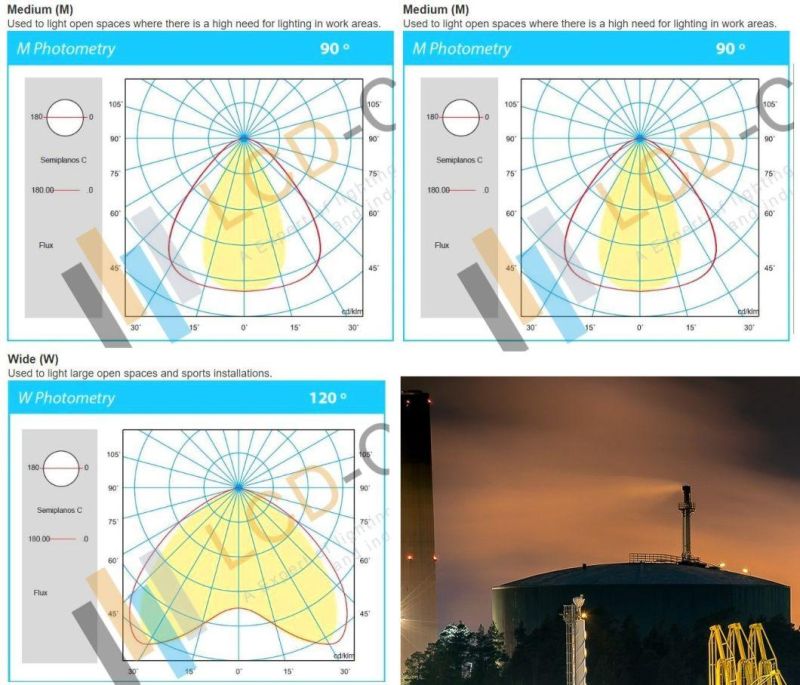

Photometric Data (LIGHT DISTRIBUTION CURVE)
