DC12V 18W RGB External Control LED Ultra PAR56 ABS Swimming Pool Light

Shenzhen Heguang Lighting Co., Ltd.
  • IP Rating：IP68, IP68
  • Emitting Color：RGB, RGB
  • With Light Source：With Light Source
  • Application：Swimming Pool, Pond, Swimming Pool Light, Swimming Pool
  • Lamp Body Material：ABS
  • Lampshade Material：PC

Base Info

  • Model NO.：HG-P56-18W-A2-X
  • Style：Modern Chinese Style
  • Base Type：,
  • Technics：Structure Waterproof
  • Voltage：12V
  • Certification：CE, EMC, FCC, RoHS, VDE, IP68, CE, RoHS, FCC, EMC, LVD
  • Type：PAR56
  • Waterproof：Waterproof
  • Life：50000h
  • Input Voltage：12V
  • Diffuser：Tempered Glass
  • LED Chips：CREE
  • Power：18W
  • Electric Current Type：AC,DC
  • Shell Material：ABS
  • Color：RGB External Control
  • Certificate：FCC, CE, RoHS, IP68
  • LED Color：7color RGB
  • Beam Angle：120 Degree
  • IP Grade：IP68 Waterproof
  • Product Name：Hg-P56-18W-A2-X Underwater LED Pool Light
  • Transport Package：Color Box
  • Specification：185x185x76mm
  • Trademark：Birmate
  • Origin：China Shenzhen
  • HS Code：9405409000
  • Production Capacity：50000pieces,Year

Description

Lamp paramaterMaterialNylon+Anti-UV PC coverLight dimensionΦ177×58mmInput voltageAC12/DC12VWattage18W±10%Light lumen1700LM±10%Halogen replacement150WBeam angle120°BASEWIRE OUTCCTPure White: 6500±10% Warm White:3000K±10% costomizedSpecificsOperating Temperature (ºC)-20~40ºCIP RatingIP68CertificateCE, ROHS,FCC, IP68,VDELife-span50,000 hoursWarranty2 Years!!! RemarksConnect coil transformermust be coil transformerWaterproof ring of housingmust do right to get IP68Test positionLED PAR56 swimming pool lights (Min)Working temperature 28ºCWorking temperature 40ºCUnderwater test time(Min)480480LED edge temperature(ºC)7175

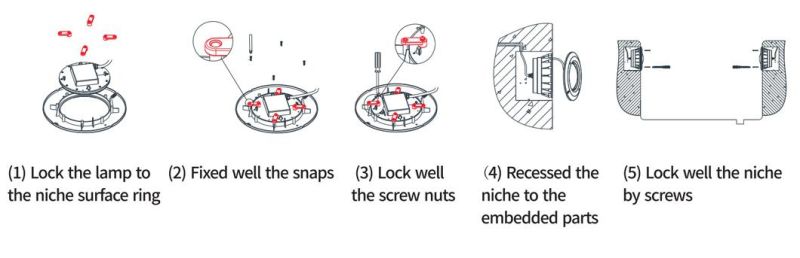

Installation Instructions:

DC12V 18W RGB External Control LED Ultra PAR56 ABS Swimming Pool Light

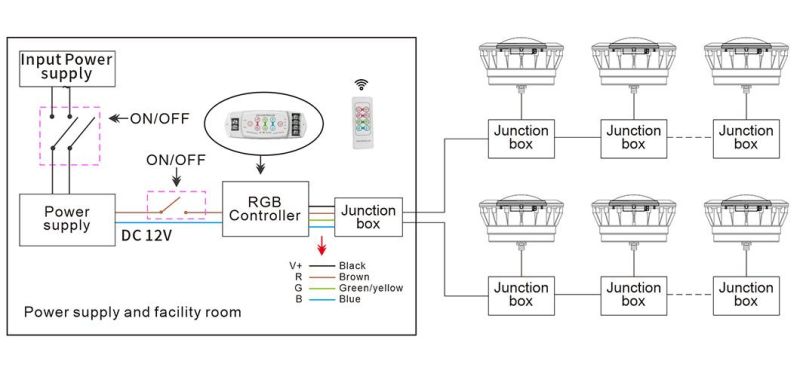

connection instruction:
DC12V 18W RGB External Control LED Ultra PAR56 ABS Swimming Pool Light


Application:widely used in swimming pool ,family pool,outdoor pool,underwater,underwater fountain ,etc.
DC12V 18W RGB External Control LED Ultra PAR56 ABS Swimming Pool Light

Heguang LED pool lighting Certification :

DC12V 18W RGB External Control LED Ultra PAR56 ABS Swimming Pool Light


About Company:
DC12V 18W RGB External Control LED Ultra PAR56 ABS Swimming Pool Light
Shenzhen Heguang Lighting Co.,Ltd is a manufacture and high-tech enterprise established in 2009-specialized in IP68 LED light (pool light,underwater light,fountain light,etc),factory covers around 2000Square meters
,3 assembly lines with the production capacity 50000 sets/month,we have the independent R&D ability with professional OEM/ODM project experience.
Heguang certification :ISO9001:2015,CE,ROHS,FCC,LVD,IP68,IK10,UL,we are the only one UL certificated pool light supplier in China.All the production with 30 steps strict quality control to insure the quality before shipment.
Heguang always insist 100% original design for private mode , we will constantly develop new products to adapt the market request and provide customers with comprehensive and intimate product solutions to ensure worry-free after-sales !   We are located in Bao'an,Shenzhen,close to HongKong and Shenzhen Airport ,welcome to visit our factory !
Exhibition
Heguang Exhibitions :
We attend the lighting fair/spa fair all over the world ,such as the Germany lighting fair,US-LAS VEGAS lighting fair ,HK lighting fair ,Spain lighting fair ,France lighting fair ,etc .we aim to a win-win cooperation from all of our clients!
DC12V 18W RGB External Control LED Ultra PAR56 ABS Swimming Pool Light


Why Choose Us
1.Heguang with 14 years experience specialized in LED pool light/IP68 underwater lights
2.Professional R&D team,Patent design with private mold, structure waterproof technology instead of glue filled
3.Experienced in different OEM/ODM project, artwork design for free
4.Strict quality control : 30 Steps inspection before shipment,reject ratio ≤0.3%
5.Quick response to the complains ,worry-free after-sale service
6.The only one China pool light supplier who listed in UL (for US and Canada)
