• Model NO.：ES-LS-2HY02I
• Battery Type：Lithium Battery
• IP Rating：IP68
• Material of Reflecting cup：Metallic
• Surface Preparation of Reflecting cup：Concave-convex
• Material：Aircraft Aluminum 6061-T6
• Certification：CE
• Powered by：2xcr2 Rechargeable Batteries
• Color：Matte Black
• Brand：OEM
• Product Catagory Sort：Tactical LED Light, Flashlight ,Torch
• Charger Included：Yes
• Pressure Pad Switch Included：Yes
• LED Sort：CREE Q5
• Strobe Function：Optional
• Brightness：220 Lumens
• LED Lifetime：60, 000 Hours
• Transport Package：Packing: 1 Unit,Gift Box, 50 Units,Master Carton
• Specification：Police standard
• Trademark：Buyer′s logo
• Origin：China
• HS Code：8513101000
• Production Capacity：1000 Per Month

Basic Info.

Model NO. ES-LS-2HY02I Battery Type Lithium Battery IP Rating IP68 Material of Reflecting cup Metallic Surface Preparation of Reflecting cup Concave-convex Material Aircraft Aluminum 6061-T6 Certification CE Powered by 2xcr2 Rechargeable Batteries Color Matte Black Brand OEM Product Catagory Sort Tactical LED Light/ Flashlight /Torch Charger Included Yes Pressure Pad Switch Included Yes LED Sort CREE Q5 Strobe Function Optional Brightness 220 Lumens LED Lifetime 60, 000 Hours Transport Package Packing: 1 Unit/Gift Box, 50 Units/Master Carton Specification Police standard Trademark Buyer′s logo Origin China HS Code 8513101000 Production Capacity 1000 Per Month

Product Description

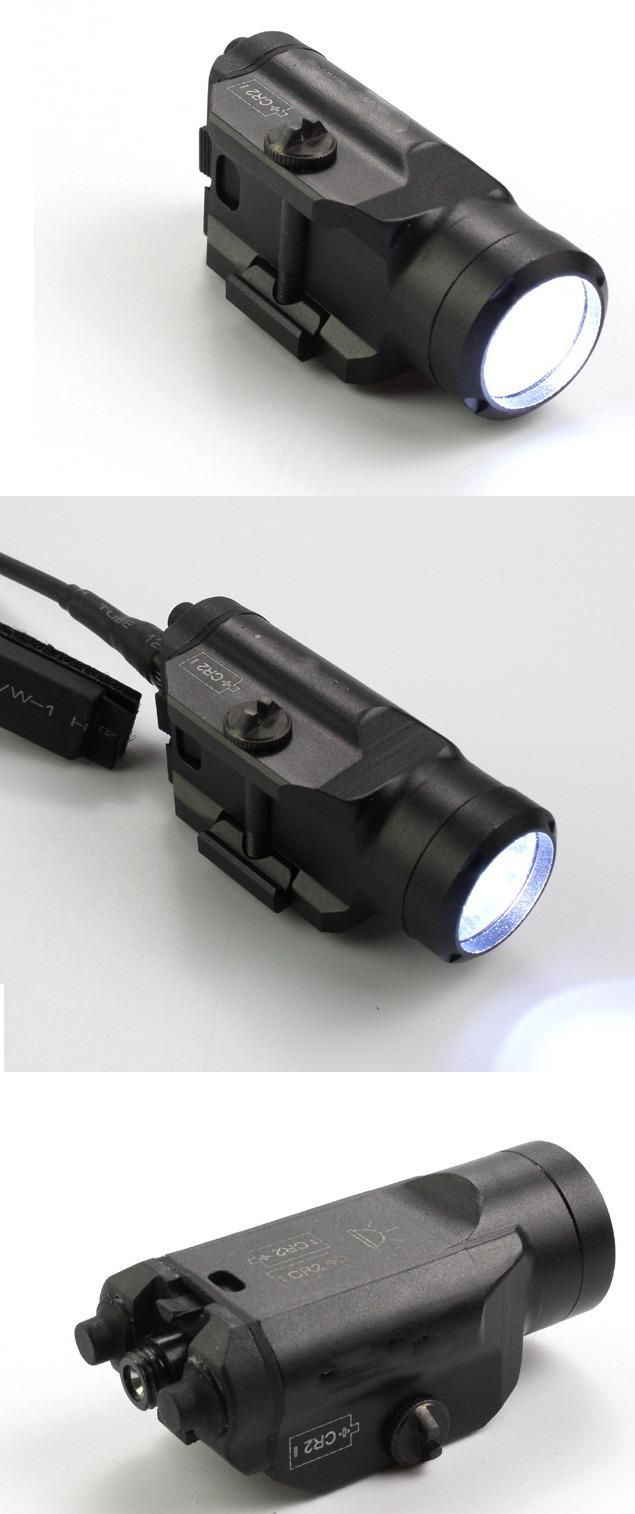

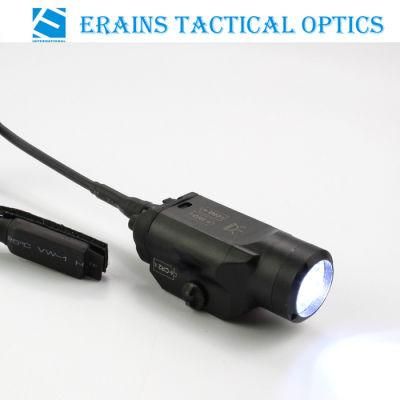

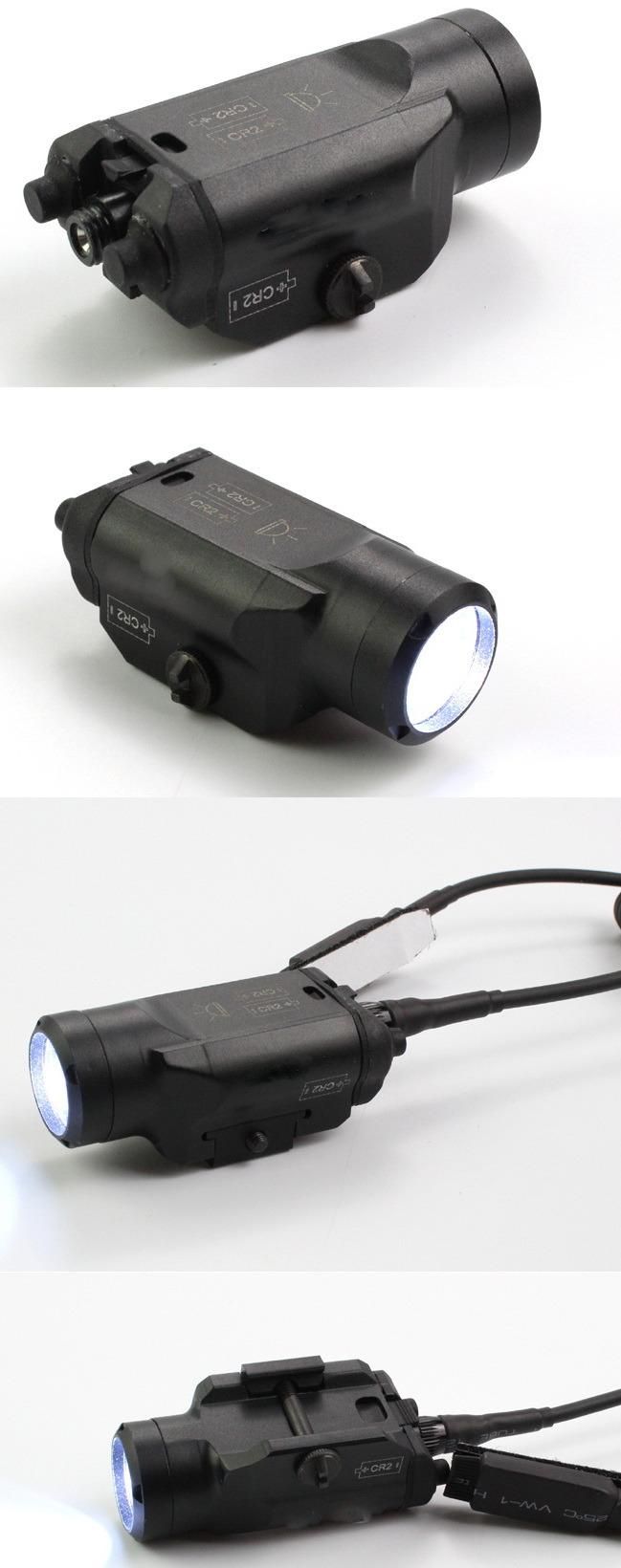

Tactical Pistol weapon LED flashlight with 225 lumens CREE LED
1. Buyer's LOGO printed.
2. Pistol mount integrated
3. OEM &ODM serivce offered
4. Pressure pad switch included
5. Rechargeable batteries with charger are optional
6. Strobe led light function optional

Model: ES-LS-2HY02I
Name: Tactical Compact 225 lumens Pistol Weapon mountable CREE Q5 LED Light/ Flashlight and Torch

TECHNICAL DESCRIPTION
Power Output: 3 W
Battery: Two CR2 Lithium Batteries
Battery Life: 2.5 hours of runtime for new or fully charged batteries



LED detailed information
LED model: CREE Q5 LED
Power Voltage: 3V-8.2V
Length: 72.5 mm
Width: 33mm for the torch boday, 21mm for the mount rail width
Heigt: 31mm
LED brightness: Up to 200 or 225 lumens blinding beam, Bright sidelight
Light color: Cold white
LED effective range: 300 meters
Working Temperature: -40 ~ +80
Light attenuation: Less than 3% after 10k hours
Life time: ≤ 60000 hours
Weight with Battery: 4.72 oz, 133.8g
Warranty: Extended Warranty
Construction: Aircraft aluminum 7061-T6
Finish: Anodic oxidation/ V' r3 black
Operation: Ambidextrous Momentary/Steady on-off Switch
Rail Mount: Integrated mount



KIT INCLUDES
Tactical LED Flashlight integrated mount
Calibration tools
2 CR-2 lithium batteries (rechargeable batteries with charger are optional)
Tail wire pressure pad switch

PACKING
Packing: 1 unit/gift box, 50 units/master carton
Unit package: Gift paper box or white box
Master Carton: Top cardboard carton

FEATURES
Lightweight
Compact
Safe and adjustable
Dust and Shockproof
Ambidextrous Momentary/Steady on-off Switch
Machined anodized aluminum housing
Fits existing light bearing holsters
Adjustable mount flexibility that can accommodate the Glock or Picatinny (1913) accessory rails.

Unique purpose and application:
Our light can mount on helmet which has the picatinny rail intergated.

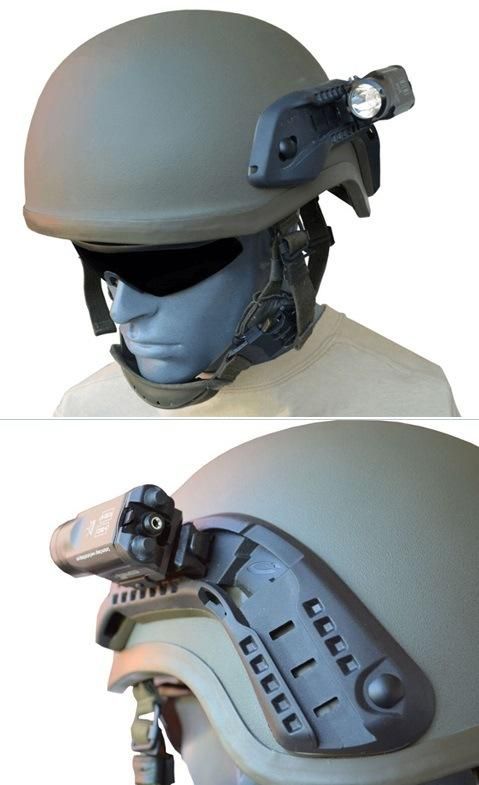

See below image of our other customer offer of our light mounted on the helmet, which is perfect for the hiking or activities in the dark with safety.


BATTERY ASSEMBLY
The ES-LS-2HY02I (02QD) LED flashlight uses 2 CR-2 (6V) batteries. The CR-2s negative and positive pole has been indicated on the mount.

DANGER: DO NOT use anything other than a CR-2 battery or rechargeable batteries with this product.

To access the battery compartment you must first remove the flashlight from the firearm. Follow the QD light removal procedure instructions to remove the flashlight from the firearm.

1. Unclip the door latch, the latch is tight, it may help to use a coin.
2. Slip the batteries from the flashlight.
3. Insert the new batteries observing polarity. Note: The flashlight is polarity protected and will not light if the batteries are inserted incorrectly.
4. Hold the battery switch/door at an angle and place the small tab on the bottom of the battery/door switch into the slot in the flashlight body.
5. Firmly push and hold the door closed against the flashlight body.
6. Swing the door latch over the door and snap it into place.


MAINTENACE
The LS-2HY02 series rail clamp tensioning bolt requires an application of high quality gun oil to keep it rust free. Use a soft cloth and mild detergent to clean the glass LED lens and keep it free of dirt and grime. The laser aperture (LS-2HY02) can be cleaned with a Q-tip 9or similar item) and mild detergent.
Note: Always avoid aggressive cleaning solutions as they may damage the LS-2HY02 series light or combos

LS-2HY02 PARTS
Note: The LS-2HY02 rail key can be changed to accommodate several varieties of mounting rails, as well as the end pressure pad switch plug.
Remove the rail key screw with a 7/64th hex wrench and pull the rail key from the body. Insert the new rail key and fasten it in place with the rail key screw.



Our Service
Except man-made mistakes, we will exchange the defective with a brand new one within 14 days after you get our product. According to the guild regulations customer shall be responsible for the returning shipping fee.

Warranty: 1 Year free warranty with up to 3  years limited warranty for this model designator.

Warranty, we offer 13 months limited warranty for our products. Damage due to misuse, ill treatment and unauthorized modifications and repairs are not covered by our warranty.



Shipping Method, We provide comprehensive shipping methods, for small quantity orders we ship by DHL Air-Express, or EMS/TNT Express service, it is safe and fast. For large quantity orders we can ship by Air transportation or sea transportation, also we can ship order to buyer's cargo agent in China. We quoted prices are EXW price, don't include shipping cost.

Company Policy: Strive for the Customer Satisfaction
We have rich experience upon the international order all over the world. We can deliver the order to your office or home directly. We will combine the shipping cost for multi items purchase.

FAQ

Finally, your feedback and suggestion are very important for us.
Thanks again for your attention. We sincerely hope you will enjoy our products.

All our products are built for real firearms. Our latest LED lights or the light with laser combos are manufactured with high quality components and materials. Excellent quality and stable performance. Water resistant, shock proof and recoil proof via (under) necessary condition testing.

Erains TAC Optics Tactical Compact Pistol Weapon LED Torch Flashlight/ Light
