High Brightness Mini Type 2PCS SMD3528 LED Injection Module
MSS LED Lighting Co., Ltd.- IP Rating:IP65
- Emitting Color:White
- 1 LED Power:<0.3W
- LED Chips:Epistar
- Waterproof:Waterproof
- LED Light Source:2835SMD LED Module
Base Info
- Model NO.:NM2X3528-030A
- Power:0.3W
- Beam Angle:120
- Wire Length:75mm
- Driver Way:Constant Voltage
- Warranty:3 Years
- Transport Package:1 Chains(20 Module) Low Volume Electrostatic Bag
- Specification:26 x 07 mm
- Trademark:MSS LED,OEM,ODM
- Origin:China
- HS Code:9405409000
- Production Capacity:600, 000,Month
Description
Basic Info.
Model NO. NM2X3528-030A Power 0.3W Beam Angle 120 Wire Length 75mm Driver Way Constant Voltage Warranty 3 Years Transport Package 1 Chains(20 Module) Low Volume Electrostatic Bag Specification 26 x 07 mm Trademark MSS LED/OEM/ODM Origin China HS Code 9405409000 Production Capacity 600, 000/MonthProduct Description
High Brightness Mini Type 2pcs SMD3528 LED Injection ModuleFeatures
1. Constant Voltage Technology (CCT),20pcs per series2. The exposed Aluminum plate for heat dissipation3. Injection molding process,Waterproof: IP 654. Bigger chip,10% brighter than before5. Energy saving,Environment friendly6. Long life span7. Suitable for channel letters and light boxes back lighting etc.

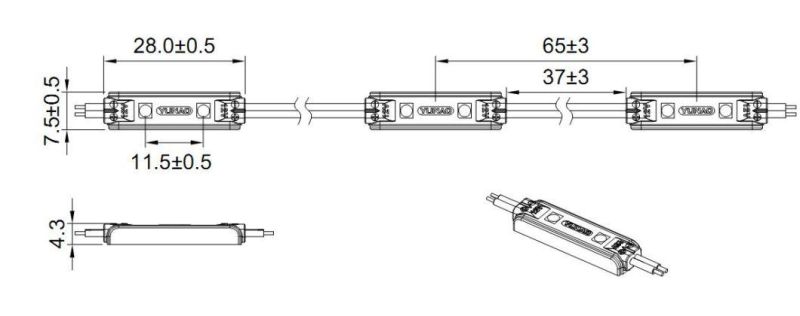

Dimensions
Note: The cable between modules can be customized within a certain range.
Technical parameters
Part no. | Color | Wave Length Or CCT | Operating Voltage | Rated Power per module | Beam Angle | Lm Flux per module | IP Rank |
NM2W3528-030A | Pure white | 6000-7500K | DC12V | 0.3W | 120° | 15lm | IP65 |
NM2C3528-030A | Cool white | 9000-16000K | DC12V | 0.3W | 120° | `5lm | IP65 |
NM2M3528-030A | Warm white | 2700-3200K | DC12V | 0.3W | 120° | `5lm | IP65 |
NM2R3528-030A | Red | 620-630nm | DC12V | 0.3W | 120° | 3lm | IP65 |
NM2G3528-030A | Green | 520-530nm | DC12V | 0.3W | 120° | 8lm | IP65 |
NM2B3528-030A | Blue | 465-475nm | DC12V | 0.3W | 120° | 2lm | IP65 |
NM2Y3528-030A | Yellow | 585-595nm | DC12V | 0.3W | 120° | 2lm | IP65 |

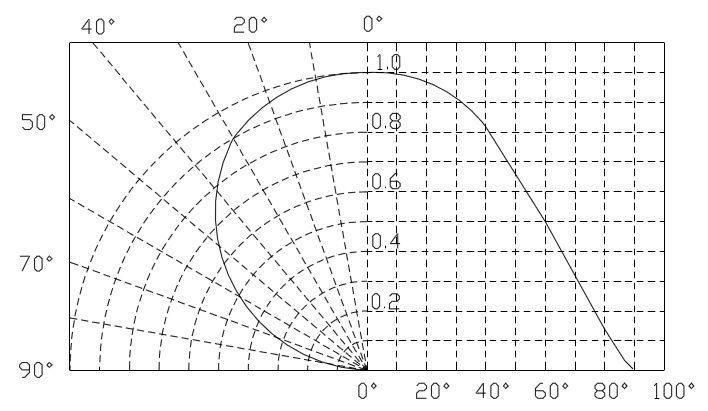

Led module light distribution graph
Temperature and luminous flux
Attention

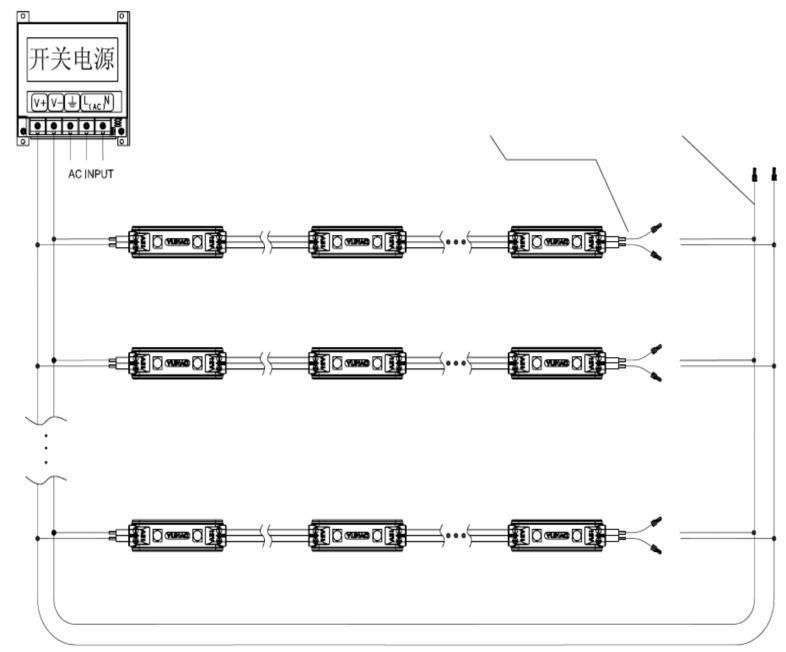

- Max. number of modules of one chain is 20pcs from power supplier to single end.
- The given illuminance parameters ensure illuminance on the surface.
- Depending on the type of material used for channel letters or lighting boxed,the parameters can change.
- More brightness is obtained if distances between LED modules are reduced.
- The LED module itself and all its components may not be mechanical stressed.
- Please ensure that the power supply is adequate power to operate the total load. Only qualified personnel should be allowed to perform installations.
- The design of the housing should be according to the IP standards in the application.
- If surge protection structure not within power supplier, a lightening protector should be needed additionally
Packing
1. Outal carton:46x27.5x28.5cm, Anti-static bag:305x280x0.12mm,
2. 20pcs per chain,25pcs chain in one Anti-static bag . (500 pcs in one Anti-static bag).3. 18 bags in one outal carton . ( 9000 pcs in one outal carton).
Applications
1. Channel letter lighting2. Commercial standing lighting3. Letter background lighting4. Light box lighting5. Logo lighting6. Line/shape lighting
