• Model NO.：FG-UWL260*40- 24*3w
• Style：Modern Chinese Style
• Base Type：Wall Mounted
• Technics：Epoxy Resin Filling
• Voltage：12V
• Certification：CE, LVD
• LED Qty：24*3W
• Power：72W
• Single Color：Warm White; Cool White, Yellow,Red,Blue,Green
• Installation：Wall Mounted
• Warranty：2year
• The Cable Length：2meters
• LED Chip：Edison
• Transport Package：Neutral Color Box
• Specification：CE, RoHS
• Trademark：Future Green
• Origin：Guangdong, China
• HS Code：9405409000
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. FG-UWL260*40- 24*3w Style Modern Chinese Style Base Type Wall Mounted Technics Epoxy Resin Filling Voltage 12V Certification CE, LVD LED Qty 24*3W Power 72W Single Color Warm White; Cool White, Yellow,Red,Blue,Green Installation Wall Mounted Warranty 2year The Cable Length 2meters LED Chip Edison Transport Package Neutral Color Box Specification CE, RoHS Trademark Future Green Origin Guangdong, China HS Code 9405409000 Production Capacity 10000PCS/Month

Product Description

IP68 72W Wall Mounted LED Pool light

1. Item No.: FG-UWL260*40-24*3W
2. Dimension(mm): 260*40mm
3. Material: PC
4. Color: RGB/White/Green/Blue/Warm White
5. Voltage(v): AC 12V
6. LED Qty(PCS): 24*3W
7. Power(w): 72watt
8. Viewing angle: 120degree
9. Net Weight (kg): 1.25
10. Packing: 10PCS per exported carton


RGB Control Method:
1, Auto changing, built inside
2, RF remote control
3, Switch Power On/Off
4, RF remote + Switch power On/Off
5, External RGB controller

Applications:

It is used in swimming pools, fountains, scenic ponds' illumination and decoration.

2. Features:
1. Adopt super-high bright LED as the light source and any single color is available, like red, green, blue, yellow, white and RGB colors. It is remote control.
2. Adopt thick glass as the body shell which is corrosion resistant and quick heat dispelling.
3. It is IP68
4. Longer life-span, above 50, 000 hours.
5. Low consumption, energy saving and environmental protecting.
6. The light color will be more easily to heat dissipation. So they has longer life-span than normal DIP-LED PAR56 underwater light.
7. The light is more bright-colored and more penetrating in water than normal DIP-LED PAR56 underwater light.


Installation procedure
1. Screw the bracket into the wall
2. Mount the clip of the bracket into the hole of the light
3. Screw the detailed illustrations in the below pictures

Cautions
1. Work with AC12V, otherwise the light will be possibly damaged
2. This light should be installed not deeper than 50cm underwater
3. The power wire of the lights shall be joined with other power wire out of the water. Waterproof treatment should be done if the joint is in the water otherwise there is risk for water intrusion.
4. The light should be in the water for the test of remote function or other functions, and don't test it more than 3 minutes out of the water otherwise the light will be possibly damaged or caused disfunction. If the user is not available to test it in the water, then please shut off the light every 3 minutes to be cold for the new test

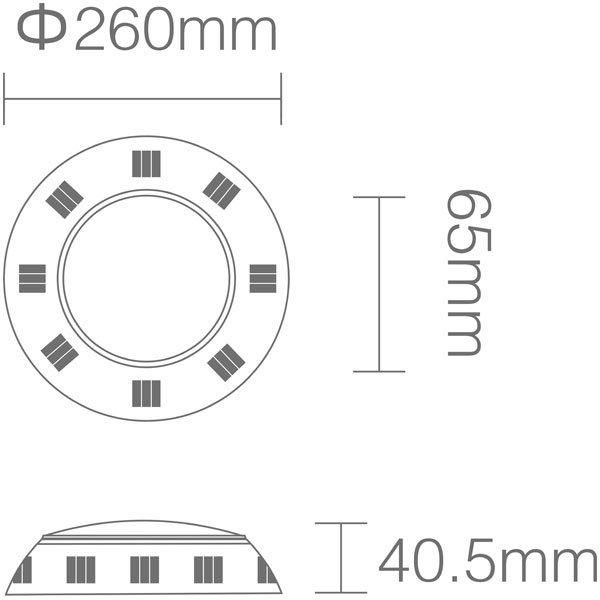

Drawing:

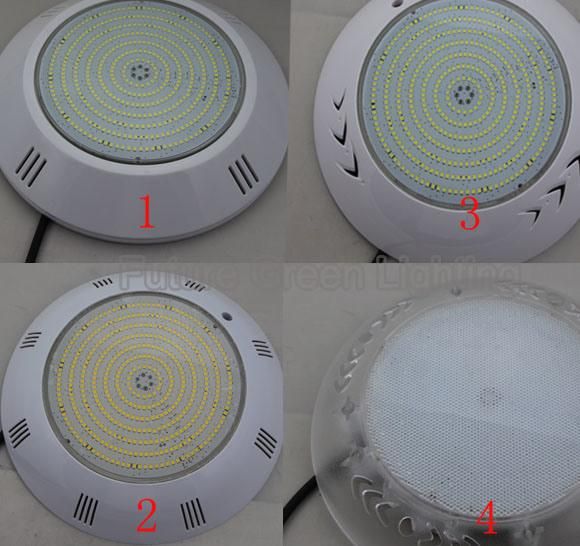

The shell type:

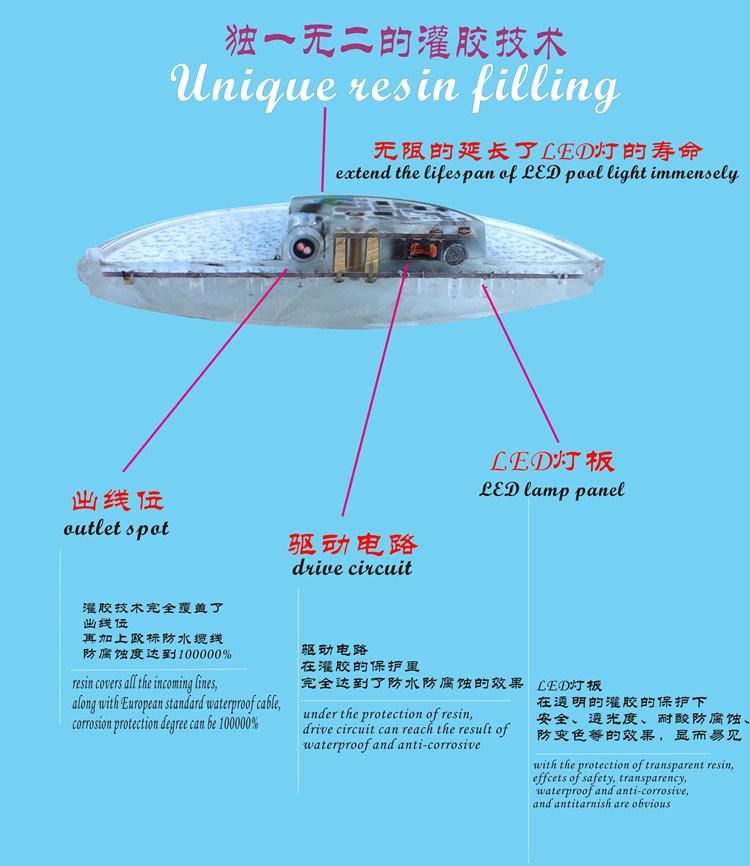

Technology:
