LED Light Explosion Proof LED Outdoor Lighting Bulkhead 20W 220V 6500K 2400lm IP66 Ik09 5years Warranty with UL TUV Ce Certificates MW Driver and 3030SMD

LCD (HK) -CESP LIGHTING CO., LIMITED
  • Lamp Body Material：Aluminum Alloy
  • IP Rating：IP66
  • Base Type：LED Engine
  • Irradiated Area：≥30m²
  • Input Voltage：100-277VAC
  • Power：20w

Base Info

  • Model NO.：LCD-BHD7200-20
  • Color Temperature：3000K 4000K 6500K
  • Emitting Color：Warm White, , Neutral White, Cool White
  • LED Chips Brand：Bridgelux
  • Certification：CE, C-tick, EMC, Energy Star, ETL, FCC, LVD, PSE, RoHS, SAA, UL
  • Transport Package：Carton Box
  • Specification：330x255x166mm
  • Trademark：LCD brand
  • Origin：Shenzhen City, China
  • HS Code：9405409000
  • Production Capacity：50000PCS , Year

Description

Electrical parametersProduct typeRated input voltageRated input currentVoltage frequencyRated powerLED input currentPFTHDLCD-BHD7100-3090~264VAC1~0.2150/60Hz30W600mA>0.95<15%LCD-BHD7100-4090~264VAC1~0.3250/60Hz40W600mA>0.95<15%LCD-BHD7100-5090~264VAC1.1~0.3750/60Hz50W600mA>0.95<15%LCD-BHD7100-6090~264VAC1.4~0.4550/60Hz60W600mA>0.95<15%LCD-BHD7100-7090~264VAC1.65~0.550/60Hz70W600mA>0.95<15%
Photometric parametersOptical dataProduct typeColor temp.CRICCT(K)luminous flux(lm)Beam angle(°)LCD-BHD7100-30warm / Neutral  / cool 83/80/723000k / 4000K / 6500K3300180°LCD-BHD7100-40warm / Neutral / cool 83/80/723000k / 4000K / 6500K4400180°LCD-BHD7100-50warm / Neutral  / cool 83/80/723000k / 4000K / 6500K5500180°LCD-BHD7100-60warm / Neutral  / cool 83/80/723000k / 4000K / 6500K6600180°LCD-BHD7100-70warm / Neutral  / cool 83/80/723000k / 4000K / 6500K7700180°General information Product typeSize (mm)Weight(kg)Ambient temp.(ºC)Max.surface temp.      ( test in 25ºC)Temp.classificationIP codeInsulationIK codeLCD-BHD7100-30¢210x345mm6KG- 30ºC~+ 50ºC34T6IP66IIK08LCD-BHD7100-40¢210x345mm6KG- 30ºC~+ 50ºC35T6IP66IIK08LCD-BHD7100-50¢210x345mm6KG- 30ºC~+ 50ºC40T6IP66IIK08LCD-BHD7100-60¢210x345mm6KG- 30ºC~+ 50ºC42T6IP66IIK08LCD-BHD7100-70¢210x345mm6KG- 30ºC~+ 50ºC44T6IP66IIK08

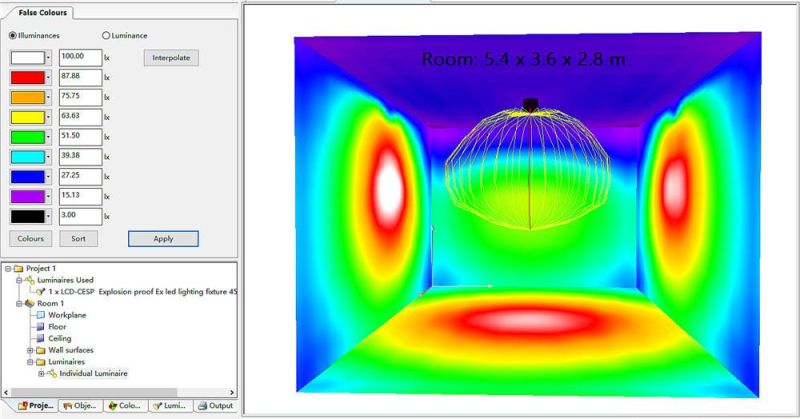

Lighting distribution
LED Light Explosion Proof LED Outdoor Lighting Bulkhead 20W 220V 6500K 2400lm IP66 Ik09 5years Warranty with UL TUV Ce Certificates MW Driver and 3030SMD

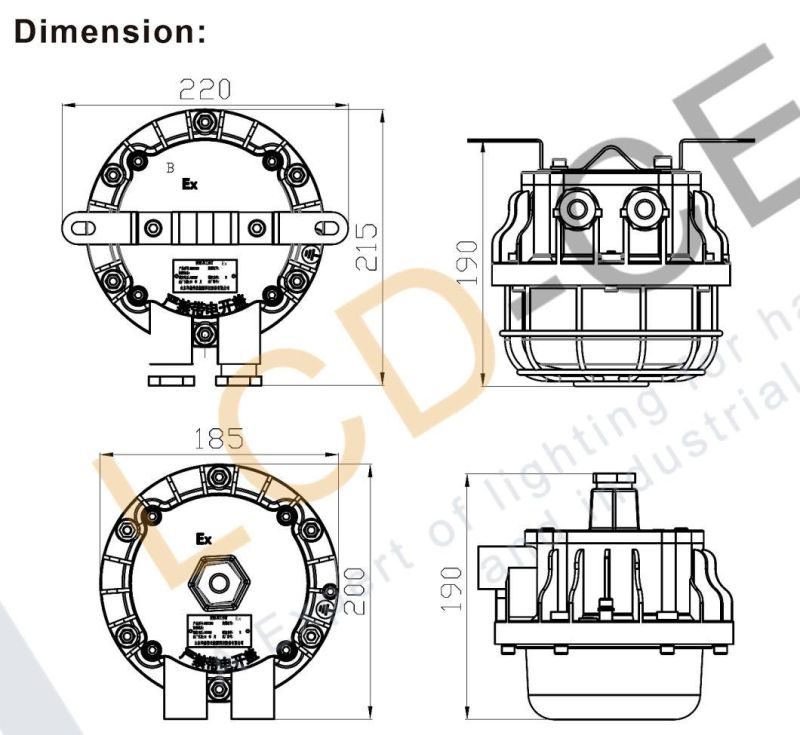

Products Dimension
LED Light Explosion Proof LED Outdoor Lighting Bulkhead 20W 220V 6500K 2400lm IP66 Ik09 5years Warranty with UL TUV Ce Certificates MW Driver and 3030SMD

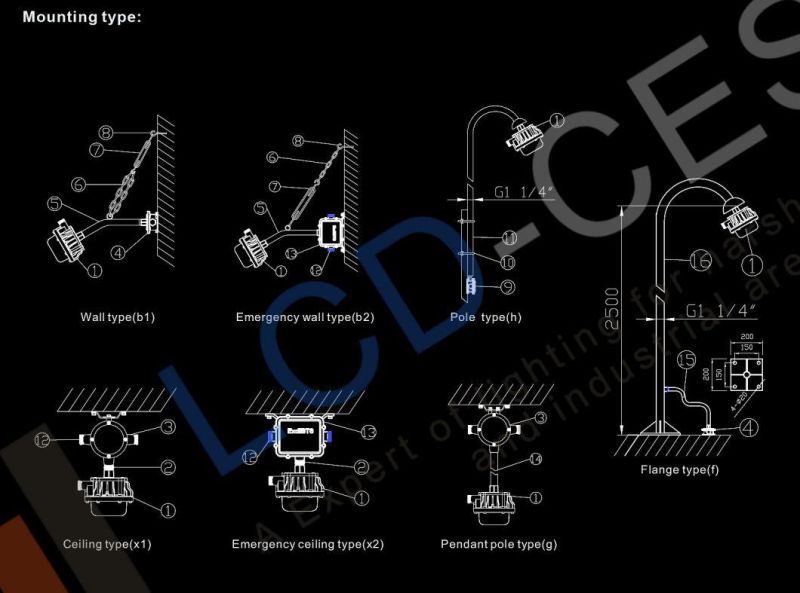

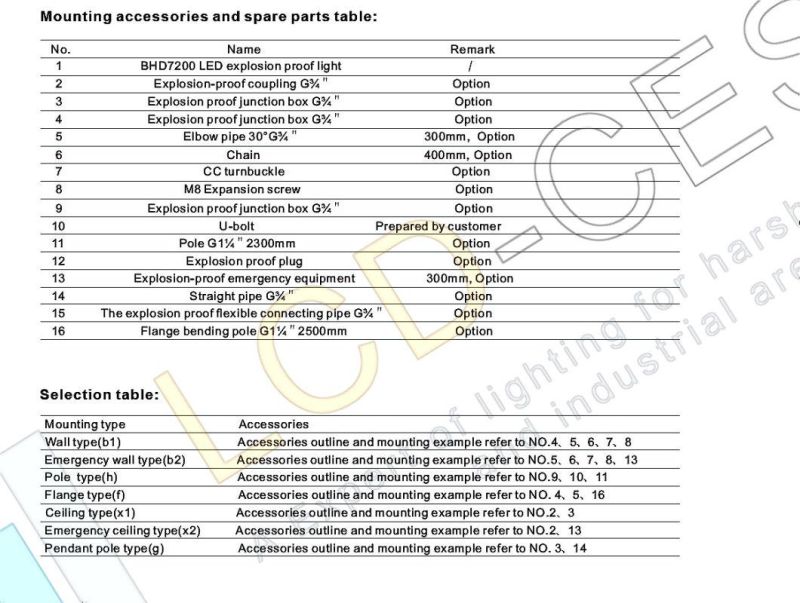

INSTALLATION METHOD
LED Light Explosion Proof LED Outdoor Lighting Bulkhead 20W 220V 6500K 2400lm IP66 Ik09 5years Warranty with UL TUV Ce Certificates MW Driver and 3030SMD
