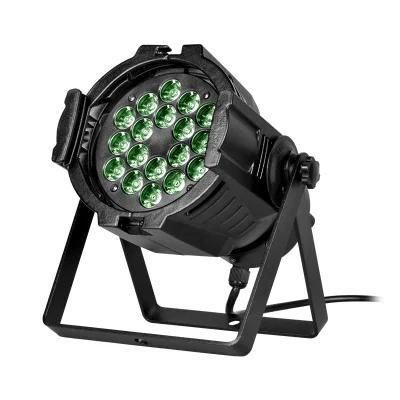

• Model NO.：LEDPAR 36AM
• Shell Material：Aluminium Alloy
• Certification：CE, RoHS, EMC
• Application：Stage, Swimming Pool, Fountain, Shows, Live DJ, Clubs
• Exterior Finish：Black
• Power Consumption：70W
• Transport Package：Carton , Flight Case
• Specification：145(D)*190(W)*280(H)mm
• Trademark：Color-imagination
• Origin：China
• Production Capacity：50000PCS,Year

Basic Info.

Model NO. LEDPAR 36AM Shell Material Aluminium Alloy Certification CE, RoHS, EMC Application Stage, Swimming Pool, Fountain, Shows, Live DJ, Clubs Exterior Finish Black Power Consumption 70W Transport Package Carton / Flight Case Specification 145(D)*190(W)*280(H)mm Trademark Color-imagination Origin China Production Capacity 50000PCS/Year

Product Description

• Light Source

  Source: 18*3W LEDs (RGB)Life Span: 50000HThe life span may vary depending onseveral following factors but not limited to:Environmental Conditions, Power/Voltage,Usage Patterns (On-Off Cycling), Control,and Dimming)Source: 18*3W LEDs (RGB)Life Span: 50000H
  The life span may vary depending on
  several following factors but not limited to:
  Environmental Conditions, Power/Voltage,
  Usage Patterns (On-Off Cycling), Control,
  and Dimming)



  Optics

  High efficiency optic system
  25°Beam angle (15°/30°/45°/60°optional)
  35°Field angle
  High output



  Color System

  RGB
  Smooth and pure color mixing capability



  Control System

  3/8 DMX channels USITT DMX-512
  DMX512, master-slave,
  sound or auto operation
  Built-in programs
  Shielded input signal protection
  for stable signal without interference
  3-pin XLR connectors IN/OUT



  Strobe Effect

  0-25Hz high speed LED shutter/strobe
  effect with variable speed



  Dimming System

  0-100% Smooth linear LED dimming



  Display System

  LED display
  4 Control buttons



  Cooling System

  Advanced cooling system
  integrated aluminum
  Over temperature protection management



  Power Supply

  Electronic supply with active PFC
  AC100-240V 50/60Hz
  Power cables IN
  70W Power consumption



• Housing

  Aluminum die-casting structure
  2 Hanging brackets
  Exterior finish: Black



  Installation

  1*Safety attachment point



  Operating Condition

  Operating positions:
  all (device on floor or fixed to a support)
  -25ºC to 45ºC ambient temperature
  IP20 protection rating



  Compliance

  CE
  2014/35/EU - Safety of electrical
  equipment supplied at low voltage (LVD)
  2014/30/EU -
  Electromagnetic Compatibility (EMC)
  2011/65/EU - Restriction of the use of
  certain hazardous substances (RoHS)



  Weight

  N.W.: 1.7kg
  G.W.: 2kg



  Dimensions

  Product Dimensions:
  145(D)*190(W)*280(H)mm
  Packing Dimensions:
  150(D)*160(W)*220(H)mm
