12/18/24*10W RGBW 4in1 LED PAR Can / LED Stage Light Waterproof IP 65
Guangzhou MS Lighting Co., Ltd.(China)- Type:PAR64
- Emitting Color:Full Range
- Power:120W
- Waterproof:Waterproof
- IP Rating:IP65
- Life:50000h
Base Info
- Model NO.:LED 1008H,LED 1008I,LED 1008J
- Electric Current Type:AC
- Input Voltage:90-245V
- Diffuser:Tempered Glass
- Shell Material:Aluminium Alloy
- LED Chips:CREE
- Certification:CE
- LED Lamp:12,18,24*10W RGBW 4in1 Multi-Color LED Lamp
- Waterproof Rate:IP 65
- Transport Package:Carton,Flycase
- Specification:31*31*37cm
- Trademark:MSLighting
- Origin:Guangzhou, China
- HS Code:94054090
- Production Capacity:500PCS,Week
Description
ModelLED 1008H(12*10W RGBW 4INI1)/LED 1008I(18*10W RGBW 4INI1)/LED 1008J(24*10W RGBW 4INI1) Housing Material Aluminum Housing Color Black Aperture Cover PMMA Operating voltage 90-130V AC / 176-254V AC Power Switch Power Supply LED current 1400mA Control Modes Direct DMX 512, Master/slave. Stand alone. Sound Activity, Sound activity synchronization DMX Channel 7CH/4CH Control panel Digital 4 characters alphanumeric Connector 3-PinXLR (In and Out) LED Life Time 80000-100, 000 hours Beam Angle 25° /30° /45° /60° Power Consumption 120W/180W/240W Light Projecting Distance 5-230M IP Rating INDOOR, Outdoor, Waterproof, IP 65 Operating Temperature -20º C+45º C Dimensions 29.5*29.5*36.5(cm) Weight 8 (kg) Packing Dimension 31*31*37(cm) Gross Weight 9(Kg) Video Link https://mslighting.en.made-in-china.com Compatibility: 1. Color Range: 16.7 million additive RGBW colors; continuously variable intensity (256× 256× 256=16777216) 2. Dimming 0-100%with regulated constant color control 3. Strobe: 10 Flashed per second (any color) 4. Function: it is max mix color, color change, color' s gradual change, flash, speed/luminance the adjustable, and save function 5.7channel Mode and 4channel Mode would change each other in every light 6.7CH Mode DMX Value CH 1_General dimmer (1-255, from dart to light) CH 2_Red (1-255, Dimmer, from dart to light) CH 3_Green (1-255, Dimmer, from dart to light) CH 4_Blue (1-255, Dimmer, from dart to light) CH 5_White (1-255, Dimmer, from dart to light) CH 6_Strobe & Color change/ color gradual change open CH 7_Strobe & Color change& color gradual change' s speed adjustment (1-255, Speed adjustment, from slow to fast) 7.4CH Mode DMX Value CH 1_Red (1-255, Dimmer, from dart to light) CH 2_Green (1-255, Dimmer, from dart to light) CH 3_Blue (1-255, Dimmer, from dart to light) CH 4_White (1-255, Dimmer, from dart to light) 8. Control modes 0: sound activity mode 1. DMX control mode 2. Adjusting the color manual 3. Adjusting the brightness manual 4. Adjusting the strobe manual 5. Adjusting the strobe speed manual 6. Master-slave control mode, as the master 7. Sound activity synchronization mode 8, Adjustingcolor' s gradual change manual 9. Adjustinggradual change' s speed. Each Package Included: 1 * LED LED 1008 LED par 64 Light with
Signal Cable: 3-PinXLR DMX In and Out + Water Power cable: Power Cable screw water proof connectors in and out (2ft cable) 1 * User Manual 1*Power cable: 3 Pin plug and screw water proof connector on other side. (2ft cable) 2* pyrocondensation. cannula (0.66ft = 20cm) 1* Waterproof connector' s cover for Power cable

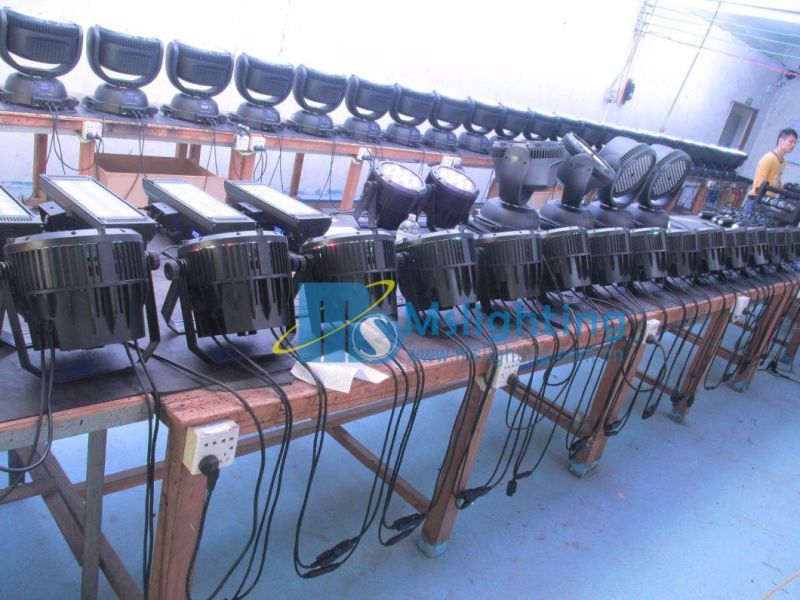

Production Line:

Signal Cable: 3-PinXLR DMX In and Out + Water Power cable: Power Cable screw water proof connectors in and out (2ft cable)

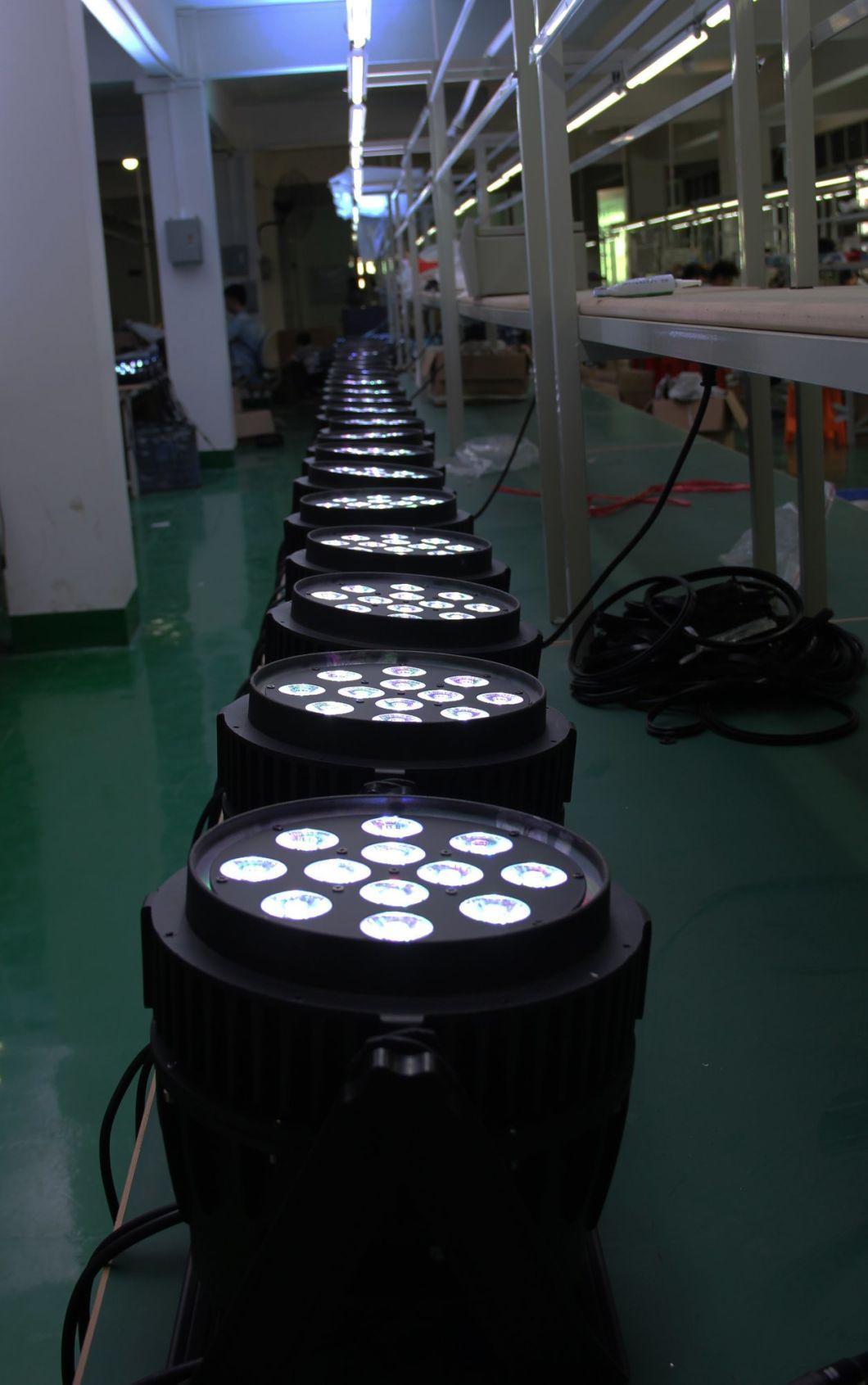

Production Line:
