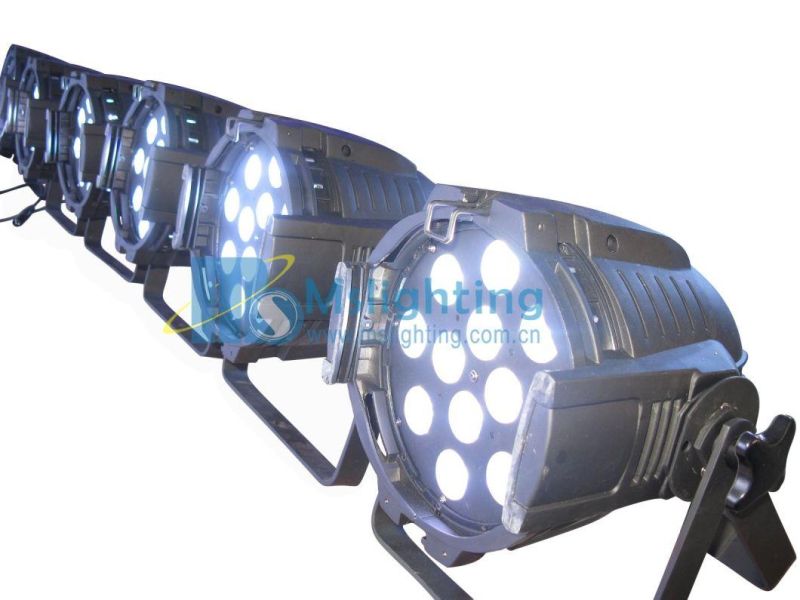

• Model NO.：LED-3001H,LED-3001J
• Electric Current Type：AC
• Input Voltage：90-245V
• Diffuser：Tempered Glass
• Shell Material：Aluminium Alloy
• LED Chips：CREE
• Certification：CE, EMC, LVD
• LED Lamp：12,18*10W RGBW 4in1 Multi-Color LED Lamp
• Transport Package：Carton,Flycase
• Specification：Packing size: 27*27*40cm G. W.: 5kg
• Trademark：MSLighting
• Origin：Guangzhou, China
• HS Code：94054090
• Production Capacity：500PCS,Week

ModelLED 3001H (12*10W RGBW 4INI1)LED 3001J (18*10W RGBW 4INI1)NO. of LED12*10W RGBW 4IN118*10W RGBW 4IN1Power Consumption120W180WHousing MaterialAluminumHousing ColorBlackAperture CoverPMMAOperating voltage90-130V AC / 176-254V ACPower   Switch Power SupplyLED current1400mAControl ModesDirect DMX 512, Master/slave. Stand alone. Sound Activity, Sound activity synchronizationDMX Channel7CH/4CHControl panelDigital 4 characters alphanumericConnector3-PinXLR (In and Out)LED Life Time80000-100, 000 hoursBeam Angle25° /30° /45° /60°Light Projecting Distance5-230MIP RatingINDOOR, Outdoor, Waterproof, IP 65Operating Temperature-20º C+45º CDimensions25.5*25.5*36.5(cm)Weight4.5 (kg)Packing Dimension27*27*40(cm)Gross Weight4.8(Kg)Compatibility:1.     Color Range: 16.7 million  additive  RGBW  colors; continuously  variable  intensity (256× 256× 256=16777216)2. Dimming 0-100%with regulated constant color control3. Strobe: 10 Flashed per second (any color)4. Function: it is max mix color, color change, color' s gradual change, flash, speed/luminance the adjustable, and save function5.7channel Mode and 4channel Mode would change each other in every light6.7CH Mode DMX ValueCH 1_General dimmer    (1-255, from dart to light)CH 2_Red                   (1-255, Dimmer, from dart to light)CH 3_Green                (1-255, Dimmer, from dart to light)CH 4_Blue                   (1-255, Dimmer, from dart to light)CH 5_White                 (1-255, Dimmer, from dart to light) CH 6_Strobe & Color change/ color gradual change openCH 7_Strobe & Color change& color gradual change' s speed adjustment (1-255, Speed adjustment, from slow to fast)7.4CH Mode DMX ValueCH 1_Red                     (1-255, Dimmer, from dart to light)CH 2_Green                   (1-255, Dimmer, from dart to light)CH 3_Blue                      (1-255, Dimmer, from dart to light)CH 4_White                     (1-255, Dimmer, from dart to light) 8. Control modes0: sound activity mode1. DMX control mode2. Adjusting the color manual3. Adjusting the brightness manual4. Adjusting the strobe manual5. Adjusting the strobe speed manual6. Master-slave control mode, as the master7. Sound activity synchronization mode8, Adjustingcolor' s gradual change manual9. Adjustinggradual change' s speed.Each Package Included:1 * LED LED 1005IV LED par 64 Light with
Signal Cable: 3-PinXLR DMX In and Out + Water Power cable: Power Cable screw water proof connectors in and out (2ft cable)1 * User Manual1*Power cable: 3 Pin plug and screw water proof connector on other side. (2ft cable)2* pyrocondensation. cannula (0.66ft = 20cm)1* Waterproof connector' s cover for Power cable

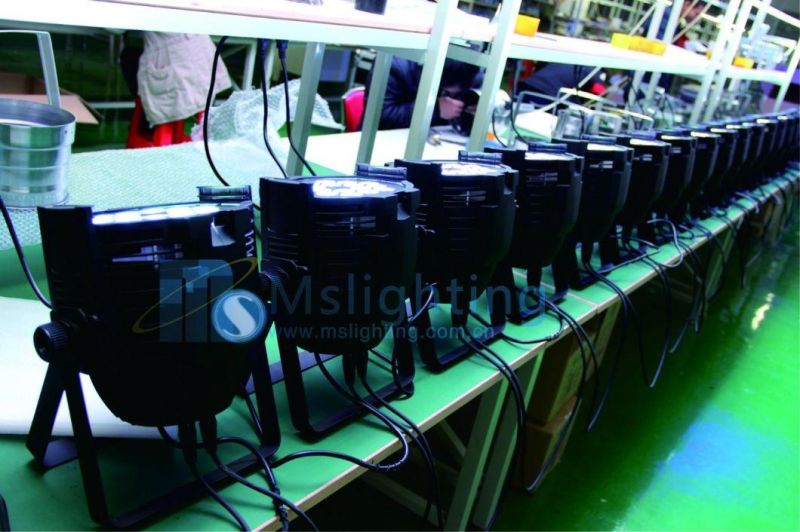

Production Line:

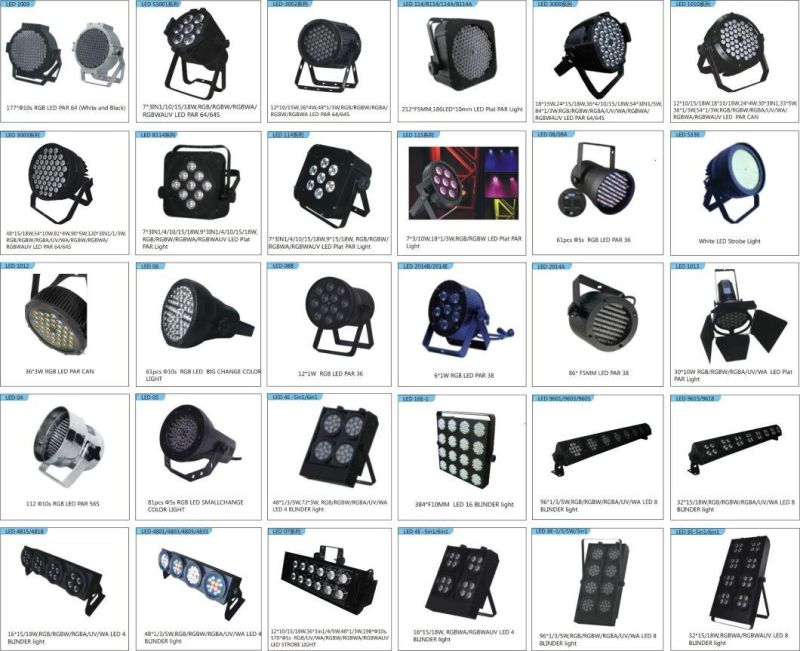

Catalog:
