5 Years Warranty DC12V IP68 1 SMD 2835 5050 Lens LED Module

MSS LED Lighting Co., Ltd.
  • Emitting Color:White
  • 1 LED Power:0.3-0.5W
  • LED Chips:Epistar
  • IP Rating:IP67
  • Waterproof:Waterproof
  • LED Light Source:2835SMD LED Module

Base Info

  • Model NO.:SD1X2835-048B
  • Power:0.48W
  • Beam Angle:160
  • Wire Length:120mm
  • Driver Way:Constant Current
  • Warranty:5 Years
  • Transport Package:1 Chains(50 Module) Low Volume Electrostatic Bag
  • Specification:33 x 18 mm
  • Trademark:MSS LED,OEM,ODM
  • Origin:China
  • HS Code:9405409000
  • Production Capacity:600, 000,Month

Description

Basic Info.

Model NO. SD1X2835-048B Power 0.48W Beam Angle 160 Wire Length 120mm Driver Way Constant Current Warranty 5 Years Transport Package 1 Chains(50 Module) Low Volume Electrostatic Bag Specification 33 x 18 mm Trademark MSS LED/OEM/ODM Origin China HS Code 9405409000 Production Capacity 600, 000/Month

Product Description

5 Years Warranty DC12V IP68 1 SMD 2835 5730 5630 5050 Lens Samsung LED Module


Features

1.
Constant Current Technology (CCT), 50pcs per series
2. The exposed Aluminum plate for heat dissipation3. Injection molding process,Waterproof: IP 674. Bigger chip,10% brighter than before5. Energy saving,Environment friendly6. Long life span7. Suitable for channel letters and light boxes back lighting etc.

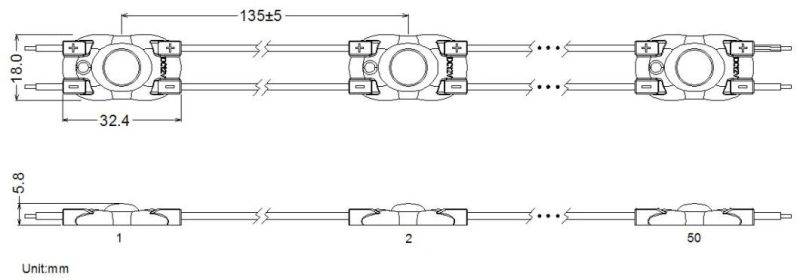

Dimensions

5 Years Warranty DC12V IP68 1 SMD 2835 5050 Lens LED Module


Note: The cable between modules can be customized within a certain range

Technical parameters

Part no.

Color

Wave Length
Or CCT
Operating VoltageRated Power per moduleBeam  Angle

Lm Flux
per module
IP Rank

SD1W2835-048BPure white6000-7500KDC12V0.48W160°45lmIP67
SD1C2835-048BCool white9000-16000KDC12V0.48W160°45lmIP67
SD1M2835-048BWarm white2700-3200KDC12V0.48W160°45lmIP67

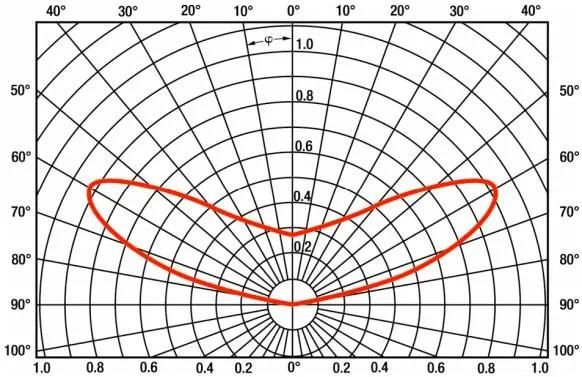

Led module light distribution graph

5 Years Warranty DC12V IP68 1 SMD 2835 5050 Lens LED Module



Attention

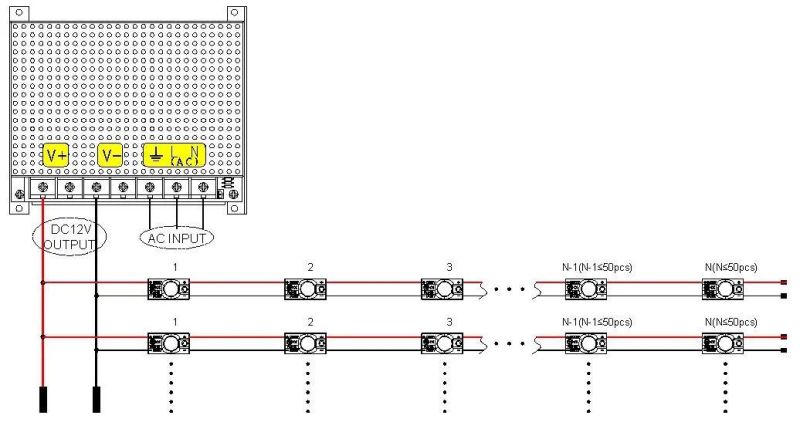

  1. Max. number of modules of one chain is 50pcs from power supplier to single end.
  2. The given illuminance parameters ensure illuminance on the surface.
  3. Depending on the type of material used for channel letters or lighting boxed,the parameters can change.
  4. More brightness is obtained if distances between LED modules are reduced.
  5. The LED module itself and all its components may not be mechanical stressed.
  6. Please ensure that the power supply is adequate power to operate the total load. Only qualified personnel should be allowed to perform installations.
  7. The design of the housing should be according to the IP standards in the application.
  8. If surge protection structure not within power supplier, a lightening protector should be needed additionally.

5 Years Warranty DC12V IP68 1 SMD 2835 5050 Lens LED Module

Packing
 1. Outal carton:52x37x26cm, small carton:35x25x23cm, Anti-static bag:305x280x0.12mm.2. 50pcs per chain,6pcs chain in one Anti-static bag . (300 pcs in one Anti-static bag).3. 6 bags in one small carton . ( 1800 pcs in one small carton).4. One outal carton contains two small cartons (3600 pcs in one outal carton).

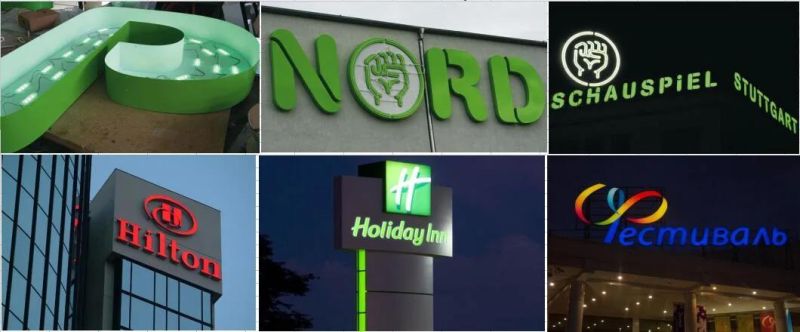

Applications
1. Channel letter lighting2. Commercial standing lighting3. Letter background lighting4. Light box lighting5. Logo lighting6. Line/shape lighting

5 Years Warranty DC12V IP68 1 SMD 2835 5050 Lens LED Module

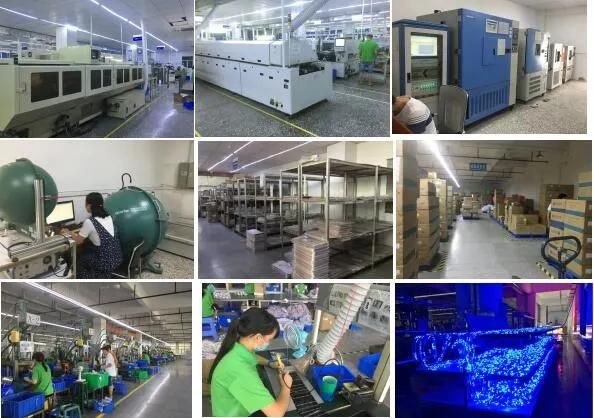

Company Profile :

MSS LED was established in 2011 and our Core team members engaged in LED industry since 2007, nearly 10years experience we foucs on led strip lights, led sign modules, related advertisement lighting products,  and accessory led power supplies, dimmer, controllers etc.
Except standard strip lights and modules, we can offer the custom made product as exact demand, eg. Different  length, one-to-one connector, indicated color temperature/color rendering/lumens/watts; or some clients told us where use lights, or what project/object they plan to install lights, then our expert team will offer suitable solution;
