• Model NO.：HX-WH260-630P
• Base Type：Wall Mounted
• Technics：Drawbench
• Voltage：12V
• Certification：CE, RoHS
• Prodct Name：LED Swimming Pool Lamp
• Working Voltage：AC,DC12V
• Warranty：Two Years
• Prodcut Size：(D)260*40.5mm
• Power：35W
• Lifespan：>50,000hours
• LED Qyt：531PCS
• LED Type：SMD3014
• Transport Package：10PCS,Carton
• Specification：CE ROHS IP68
• Trademark：Huaxia
• Origin：Shenzhen, China
• HS Code：9405409000
• Production Capacity：500PCS,Day

Item No.  QTY(PCS)     Lumen   (LM)Power(Watt)Voltage(V)     ColorMaterialWarrantyHX-WH260-252p252
SMD3014/28351700-WW
600-RGB     18AC12/24 VWarm White
White
Cool White
Yellow
Red
Green
Blue
RGBPCtwo yearsHX-WH260-333p333
SMD3014/28352500-WW
858-RGB     24HX-WH260-441p441
SMD3014/28352905-WW
1045-RGB     30HX-WH260-531p531
SMD3014/28353050-WW
1128-RGB     35HX-WH260-630p630   S
MD3014/28353200-WW
1024-RGB    42
1. Item No.: HX-WH260-252p
2. Lamp Material: PC
3. Input Voltage: AC12V, DC12V
4. Working Power: 18W/24W/30W/35W/42W..
5. Lamp Size: 260*65*40.5mm
6. LED Quantity: 252PCS
7. Beam angle: 60degree,
8. LED Brand: Cree/Edison
9. Warranty:  two year
10. Life-span: Over 50, 000 hours.
11., Certification: CE & ROHS & IP68
12. IP Rating: IP68









Recessed Filled LED Swimming Pool Light has so many advantages as following:
1.two years warranty.
2.Up to 50,000 hours lifetime
3.The material can be PC case
4. Non-corrosive
5. Good sealing
6. Thinner than other lights
7. Easy to install
8. Energy saving, Eco-friendly, little heat while working, long life, safe in use
9.Superior geometric lens strengthen the light beam throughout the wide angle lens and lighten the entire pool

Application of Recessed Filled LED Swimming Pool Light
This product is suitable for pool as the colorful illumination for water surface, water column and fountain, to produce reflection and color mixing, a beautiful and decorative lighting effect. It is enjoy a population in hotel, holiday inn, home swimming pool adaption.

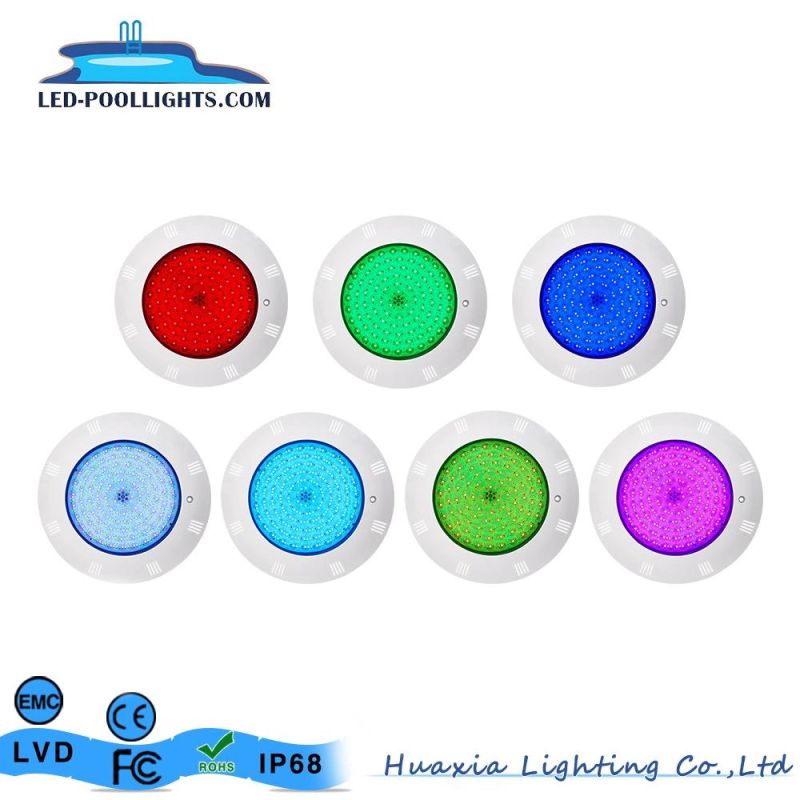

Color of Recessed Filled LED Swimming Pool Light
Single color or RGB
(1) Single color: White (pure white, warm white, cool white), Red, Green, Blue, Yellow.
(2) RGB: 14 kinds of RGB color Change patterns
1. Red (solid color red)
2. Green (solid color green)
3. Blue (solid color blue)
4. Red + green
5. Green + blue
6. Red + blue
7. Red + green + blue = white
8. Dynamic change: red change to green
9. Dynamic change: green change to blue
10. Dynamic change: red change to blue
11. Dynamic RGB change
Dynamic color change: from Red to Green, then Blue
12. Dynamic & Colorful change
Dynamic color change: from Red to Green, then Blue, Red+ blue, Green+ blue, Blue+ red, RGB
13. RGB fading effect
Fading from Red to Green, then Blue
14. Colorful fading effect
Control method: Remote control w/RGB controller, WiFi control, DMX control, Remote & switch control Auto control.

Caution of Recessed Filled LED Swimming Pool Light
1.Please read product manual carefully and make sure the working circumstance is compliant with the condition requests in the manual before use the lamps.
2.Make sure that power is cut off before connect the lamps to power supply systems.
3.The lamp should be used under water
4.Lamps require Toroid transformer, electronic transformer is not applicable.
5.Can not be operated out of water over 15minutes(cooling)
6.MOQ: 10pieces
