LED Lightings with Iecex Explosive Protected Floodlight 100W 4000K IP66 Weatherproof LED Light Lamps for LNG Tank Process Transportation Marine Industrial Area
LCD (HK) -CESP LIGHTING CO., LIMITED- Lamp Body Material:Aluminum Alloy
- IP Rating:IP66
- Base Type:LED Engine
- Irradiated Area:≥30m²
- Input Voltage:220v
- Power:100-200W
Base Info
- Model NO.:LCD-GYD780-100-XXX , LCD-CES-EX-GB-XXX
- Color Temperature:Cool White
- Emitting Color:White
- LED Chips Brand:Osram
- Certification:CCC, CE, C-tick, EMC, Energy Star, ETL, FCC, LVD, PSE, RoHS, SAA, SASO, UL, Atex Iecex
- Transport Package:Carton Box
- Specification:460x460x243mm
- Trademark:LCD brand
- Origin:Shenzhen City, China
- HS Code:9405409000
- Production Capacity:50000PCS , Year
Description

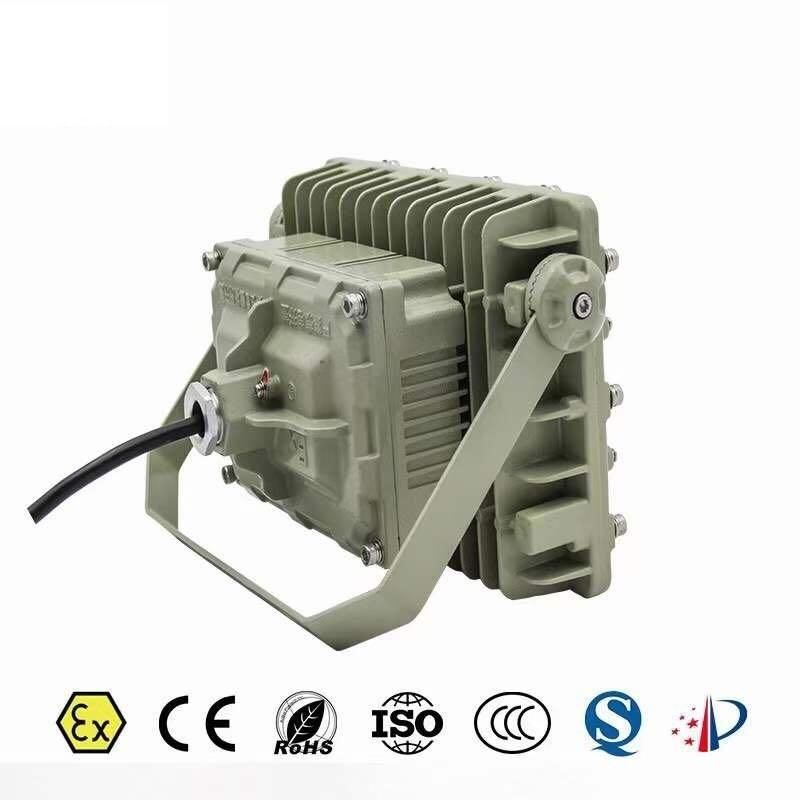

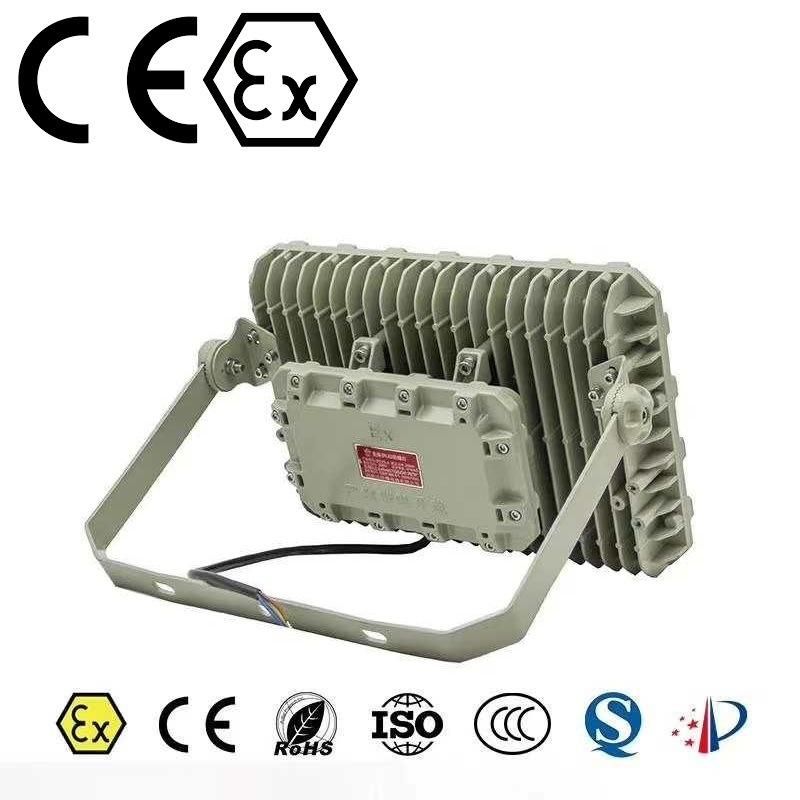

Product Pictures:
Installation
• Mounting options include:
• Adjustable U-Bracket for ceiling, wall, etc.
• Pendant
• For installations where power surge may be possible, NICOR recommends installing additional
surge protection at the electrical distribution panel.

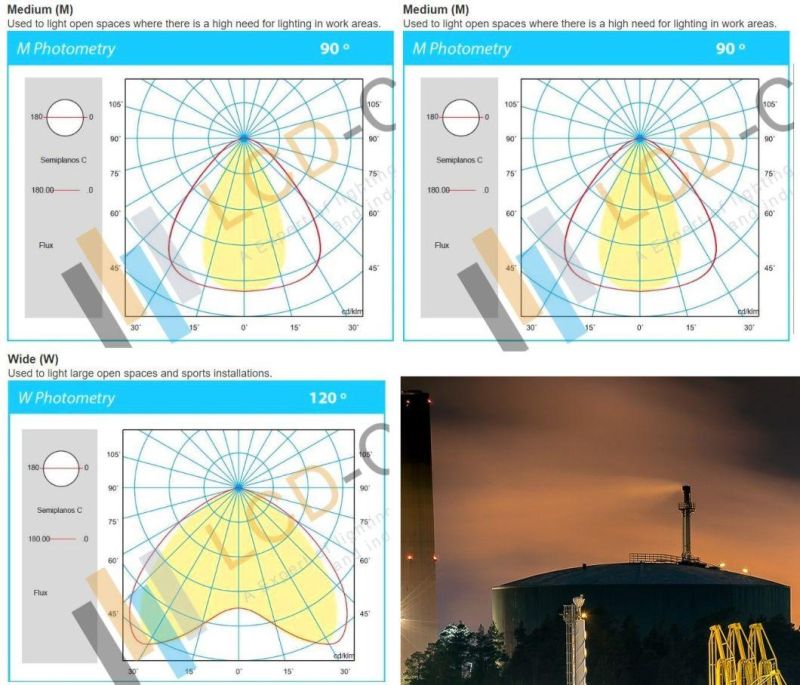

Photometric Data (LIGHT DISTRIBUTION CURVE)
Explosion proof drop light 100W Zone 1 Zone 21 220V 50/60Hz IP66 14000lm IK08
Zone 1 High Bay Light ATEX
GB High Bay Lights are designed for Zone 1 hazardous area environments which require high performance, high reliability and brilliant White-Light illumination. The High Bay Lights have been designed to light up large and open areas and is supplied with an integral dedicated bracket allowing the beam angle of light to be tilted and easily targeted into the required space.
Standards
- Light Source and Photometric Parameters
Chip Brand Brigelux Light Emission Direct CCT 3000K, 4000K, 5000K, 5700K CRI >70 Asymmetric Light Distribution 120x120° Environmental Ingress Rating IP66 Impact Resistance IK09 - see data sheet Ambient Usage Tolerance -40° to 55°C Ambient Humidity Tolerance 0% to 90% RH Ambient Storage Tolerance -40° to 55°C Electrical Input Voltage 100-277VAC Input Frequency (VAC) 50-60Hz Power Factor >0.98 THD <10% Surge Protection 4KV Physical / Mechanical Electrical Connection Terminal Block Inlet Thread M25, G3/4", NPT3/4", M20 Fixture Primary Materials Aluminium Alloy Fixture Finish Powder Coated Lens(es) Material Tempered Glass Major functions and features
• die-cast Aluminum alloy body.ADC12
• Tempered glass clear lamp housing with the features of 5J energy impact resistance and thermal shock resistance.
• Ex "d" structure design to offer more reliable explosion proof quality.
• Independent Exe connection cavity to improve the safety
• Specialized corrosion resistance, vibration resistance and water & dust proof design, both indoor and outdoor application in the harsh conditions
• High duty LED light source to ensure long life operation and superb energy saving.
• Constant current design to guarantee the operation stability.
MECHANICAL FEATURES
Features:
- Circle shaped beam
- Precision Component
- High efficiency lighting
- Excellent luminous flux
- Made of polycarbonate with special coating treatment with Marine grade
- Self-extinguishing UL94 guaranteed
- Vibration resistant
- Innovative design

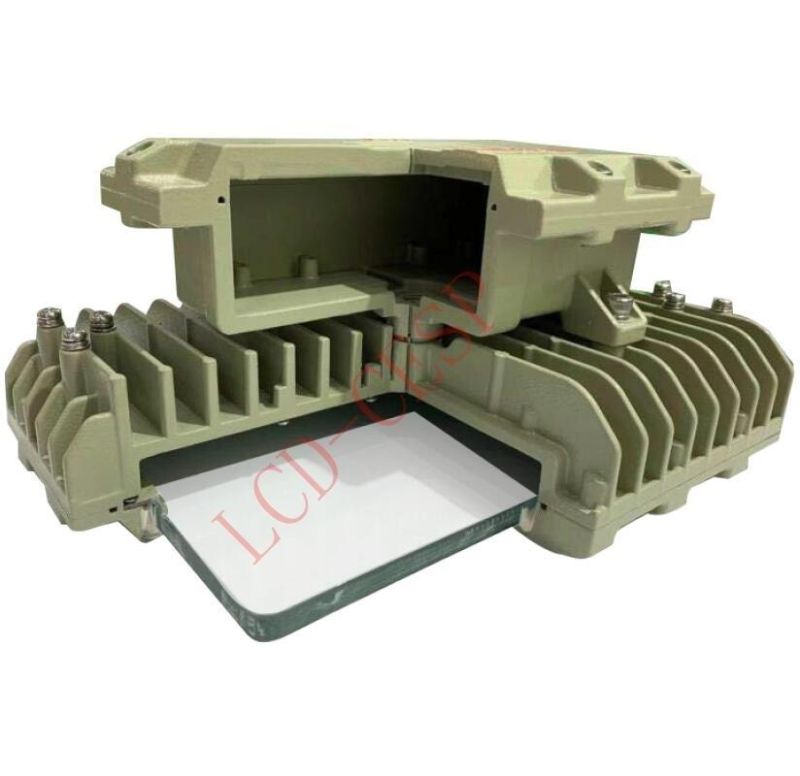

Body: Low copper content aluminium alloy fitted with cooling fins for better heat dissipation
Glass face: Shock and temperature resistant tempered glass sealed with aluminium ring
Supporting bracket: Galvanised steel or stainless steel #304
Gaskets: Acid, hydrocarbon and high temperature resistant siliconeGuard(optional) Electro-polished stainless steel
Bolts and screws: Stainless steel
Entries: M25 entries (Floodlight kit with plug and cable gland on requests)
Coating: Polyester coating Light greyThe STANDARD of the Aluminum alloy used by LCD-CESP has passed the tests required by standards EN60068-2-30 (hot/lhumid cycles) and EN60068-2-11 (salt mist tests)
Classification Group II Category 2GD Installation(EN60079-14) Zone 1 - Zone 2 (Gas) & Zone 21 - Zone 22 (Dust) standard IEC60079-0,IEC60079-1, EN60079-0, EN60079-1, IEC60079-28/31 Ex-mark II 2G Ex db op is IIC T4...5…T6 Gb II 2D Ex tb op is IIIC T103°C ... T98°C ... T93°C Db Rated Voltage AC100-277V(•1) 50/60Hz Housing TYPE Φ460*243mm Rated Wattage 100W 120W 150W 185W 200W Luminous FLUX 14000lm 16800lm 21000lm 25900lm 28000lm Color Temperature 3000K, 4000K, 6500K IP Grade IP66 Corrosion-proof Grade WF2 Ambient temperature -40°C to +55°C (-40° F to 131° F) Cable Entry G3/4" or NPT 3/4" or M25x1 .5 Terminals wires<2.5mm² Installation Ceiling/pendant/bracket/wall/fence/flange Remark AC/DC 12V/24136V/48/110V are available
Emergency type is available
Dimension
Mounting
LCD-CES-EX-01-GB (LCD-CES-EX-01-LN)Series
LED Explosion proof High Bay & flood Light for hazardous location
Feature:
• Available from 100W (>10,000lm)- 200W (>22,000lm )
• Offered with 5 mounting options: Ceiling mount, Drop mount, Wall mount, U-Bracket mount, Pole mount
• 1-10V Dimming is available(dimming and non-dimming optional)
• Motion sensor, photocell and Controller options are available
• 50,000+ hours LED lifespan
• High Quality LM80 Certify Chip
• Operation temp: -40°C to +50°C
• 70% - 80% saving compare to HPS/MH
• Material: Die Cast Aluminum
• Lens: Super Clear Tempered Glass
• Diver: high reliability and long life power supply
• Industry-leading efficacy: up to 110-140 LPW
• Standard: IECEX/ATEX:IEC60079-0/l/28/31
ATEX & IECEx: Zone 1 & 21, Zone 2 & 22; IP66
IEC/EN 60079-0,1,28,31;
Ex Mark: II 2G Ex db op is IIC T4...T5…T6 Gb;
II 2D Ex tb op is IIIC T103°C ... T98°C ... T93°C Db;
Specifications
ATEX & I ECEx: Operating temperature: -40°(to +55°( (-40° F to 131° F). LEDs: Long-life, high-efficiency, micro-power, surface mount LEDs.
Drivers(s):Class 2, 50/60Hz. 100 - 277V, 4kV standard, 6kV optional surge protection. Lifespan:50,000+hour LED lifespan based on IES LM-80 results & TM-21 calculations at 25°C. IP Rating:Ingress Protection rating of NEMA 4/4X (IP66) for dust and water. Housing: Die-cast aluminum housing. Mounting: U-Bracket, slipfitter or wall mount options available. Lens:High transmittance tempered glass. Effective Projected Area: EPA = 0.61. Vibration Rating: 3G vibration tested per ANSI C136.31
Dimming Driver: Driver includes dimming control wiring for 1-10V dimming systems. Requires separate 1-10V DC dimming circuit. Dims as low as 10%.(Optional
dimming and non-dimming). CCT: Available in 2700K ~ 6500K color temperature. CRI: Minimum CRI of ≥70.Beam angle: Standard distribution is NEMA high/low bay
lights (Type6). Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-years period. Color Uniformity:LCD-CES's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017. Finish: Formulated for high durability and long-lasting color. Green Technology: Mercury and UV free. RoHS-compliant components. IESNA LM-79 Testing: LCD LED luminaires have been tested by an independent laboratory in accordance with IESNALM-79.
Applications:
• Oil and gas refineries, drilling rigs, petrochemical facilities, food
and beverage facilities, platforms, loading docks, tunnels, outdoor
wall and stanchion mounted general area lighting, and where
flammable vapors, gases, ignitable dusts, fibers or flyings are
present
• Locations requiring continuous and consistent light levels in
extreme ambient temperatures
• Where extremely corrosive, wet, dusty, hot and/or cold conditions
exist
• Type 4X, marine, wet locations and hose-down environments
• Confined space or low ceiling areas, such as tunnels, utility
rooms, over doorways, entries, landings, etc.
• Areas requiring frequent on/off of lights
• Areas where maintenance is difficult or challenging
• Areas requiring shatter-protected products, such as food
processing facilities
• Outdoor wall or ceiling mounted area illumination
• Low mounting heights
• Classified and hazardous locations
