• Model NO.：LCD-GYD780-80-XXX , LCD-CES-Ex-GB-XXX
• Color Temperature：Cool White
• Emitting Color：White
• LED Chips Brand：Osram
• Certification：CCC, CE, C-tick, EMC, Energy Star, ETL, FCC, LVD, PSE, RoHS, SAA, SASO, UL, Atex Iecex
• Transport Package：Carton Box
• Specification：460x460x243mm
• Trademark：LCD brand
• Origin：Shenzhen City, China
• HS Code：9405409000
• Production Capacity：50000PCS , Year

50W / 80W /100W ATEX & IECEx Flood & high bay lightLCD-GYD780-50/80/100LEDsBrand: CreeCCT: 3000k, 4000k, 6000KEfficiency: 135lm/wLumen: 6250-13500lmCRI:75Test: LM80Beam Angle60° / 90° / 120° degreeDriverBrand: MeanwellPF: 0.95Efficiency: 90%Voltage: 100~277vAC or 12-32VDCFrequency: 50/60HzCurrent: 1.44 AInstructureMaterial: 12mm flame proof Aluminum alloy + 15mm Temple glassConnecting terminals: 3 cores standardGland: 1 x M25 or 1xM20Support: BracketWaterproofIP66ATEX InformationCertificate: TUV 18 ATEX 8298 XMarks: D II 2 G Ex db IIB T6 Gb / D II 2 D Ex tb IIIC T80°C Db IP66Zone 1& 21, 2 & 22IECEx InformationCertificate: IECEx TUR 18.0064 XMarks: Ex db IIB T6 Gb/ Ex tb IIIC T80°C DbZone 1& 21, 2 & 22Working Temp.:T -30 °C up to +55 °CWeight10KGWarranty5 years

Product Pictures:

Installation
• Mounting options include:
• Adjustable U-Bracket for ceiling, wall, etc.
• Pendant
• For installations where power surge may be possible, NICOR recommends installing additional
surge protection at the electrical distribution panel.

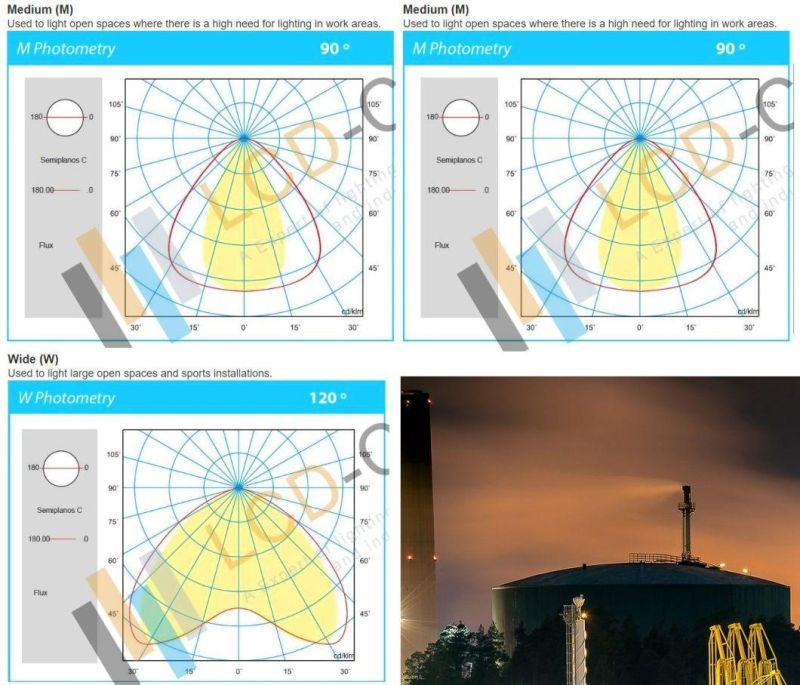

Photometric Data (LIGHT DISTRIBUTION CURVE)

Explosion proof drop light 100W Zone 1 Zone 21 220V 50/60Hz IP66 14000lm IK08



Zone 1 High Bay Light ATEX

GB High Bay Lights are designed for Zone 1 hazardous area environments which require high performance, high reliability and brilliant White-Light illumination. The High Bay Lights have been designed to light up large and open areas and is supplied with an integral dedicated bracket allowing the beam angle of light to be tilted and easily targeted into the required space.



Standards

• Light Source and Photometric ParametersChip BrandBrigeluxLight EmissionDirectCCT3000K, 4000K, 5000K, 5700KCRI>70Asymmetric Light Distribution120x120°



  EnvironmentalIngress RatingIP66Impact ResistanceIK09 - see data sheetAmbient Usage Tolerance-40° to 55°CAmbient Humidity Tolerance0% to 90% RHAmbient Storage Tolerance-40° to 55°C



  ElectricalInput Voltage100-277VACInput Frequency (VAC)50-60HzPower Factor>0.98THD<10%Surge Protection4KV



  Physical / MechanicalElectrical ConnectionTerminal BlockInlet ThreadM25, G3/4", NPT3/4", M20Fixture Primary MaterialsAluminium AlloyFixture FinishPowder CoatedLens(es) MaterialTempered Glass



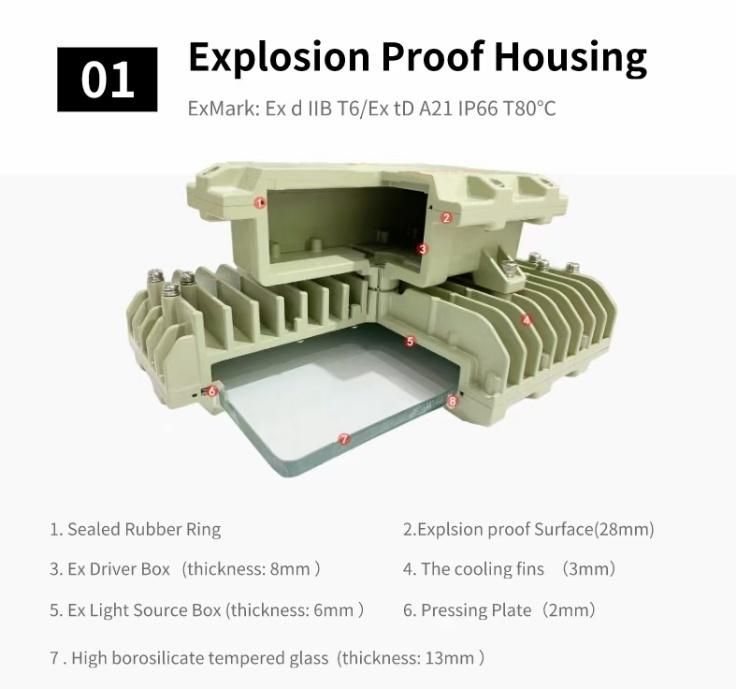

  Major functions and features

  • die-cast Aluminum alloy body.ADC12

  • Tempered glass clear lamp housing with the features of 5J energy impact resistance and thermal shock resistance.

  • Ex "d" structure design to offer more reliable explosion proof quality.

  • Independent Exe connection cavity to improve the safety

  • Specialized corrosion resistance, vibration resistance and water & dust proof design, both indoor and outdoor application in the harsh conditions

  • High duty LED light source to ensure long life operation and superb energy saving.

  • Constant current design to guarantee the operation stability.



  MECHANICAL FEATURES
  Features:
  - Circle shaped beam
  - Precision Component
  - High efficiency lighting
  - Excellent luminous flux
  - Made of polycarbonate with special coating treatment with Marine grade
  - Self-extinguishing UL94 guaranteed
  - Vibration resistant
  - Innovative design
  Body: Low copper content aluminium alloy fitted with cooling fins for better heat dissipation
  Glass face: Shock and temperature resistant tempered glass sealed with aluminium ring
  Supporting bracket: Galvanised steel or stainless steel #304
  Gaskets: Acid, hydrocarbon and high temperature resistant silicone

  Guard(optional) Electro-polished stainless steel
  Bolts and screws: Stainless steel
  Entries: M25 entries (Floodlight kit with plug and cable gland on requests)
  Coating: Polyester coating Light grey

  The STANDARD of the Aluminum alloy used by LCD-CESP has passed the tests required by standards EN60068-2-30 (hot/lhumid cycles) and EN60068-2-11 (salt mist tests)



  Specification Classification                                   Group II Category 2GDInstallation(EN60079-14)                    Zone 1 - Zone 2 (Gas) & Zone 21 - Zone 22 (Dust)standard   IEC60079-0,IEC60079-1, EN60079-0, EN60079-1, IEC60079-28/31Ex-mark                    II 2G Ex db op is IIC T4...5…T6 Gb                                                                    II 2D Ex tb op is IIIC T103°C ... T98°C ... T93°C DbRated Voltage                              AC100-277V(•1) 50/60HzHousing TYPE                                                    Φ460*243mmRated Wattage100W120W150W185W200WLuminous FLUX14000lm16800lm21000lm25900lm28000lmColor Temperature                                          3000K, 4000K, 6500KIP Grade                                                       IP66Corrosion-proof Grade                                                       WF2Ambient temperature                                   -40°C to +55°C (-40° F to 131° F)Cable Entry                                   G3/4" or NPT 3/4" or M25x1 .5Terminals                                              wires<2.5mm²Installation                      Ceiling/pendant/bracket/wall/fence/flangeRemark

    AC/DC 12V/24136V/48/110V are available

    Emergency type is available



  Dimension







  Mounting












  LCD-CES-EX-01-GB (LCD-CES-EX-01-LN)Series
  LED Explosion proof High Bay & flood Light for hazardous location

  Feature:
  •    Available from 100W (>10,000lm)- 200W (>22,000lm )
  •    Offered with 5 mounting options: Ceiling mount, Drop mount, Wall mount, U-Bracket mount, Pole mount
  •    1-10V Dimming is available(dimming and non-dimming optional)
  •    Motion sensor, photocell and Controller options are available
  •    50,000+ hours LED lifespan
  •    High Quality LM80 Certify Chip
  •    Operation temp: -40°C to +50°C
  •    70% - 80% saving compare to HPS/MH
  •    Material: Die Cast Aluminum
  •    Lens: Super Clear Tempered Glass
  •    Diver: high reliability and long life power supply
  •    Industry-leading efficacy: up to 110-140 LPW
  •    Standard: IECEX/ATEX:IEC60079-0/l/28/31
  ATEX & IECEx: Zone 1 & 21, Zone 2 & 22; IP66
                            IEC/EN 60079-0,1,28,31;
  Ex Mark: II 2G Ex db op is IIC T4...T5…T6 Gb;
                  II 2D Ex tb op is IIIC T103°C ... T98°C ... T93°C Db;

  Specifications
  ATEX & I ECEx: Operating temperature: -40°(to +55°( (-40° F to 131° F). LEDs: Long-life, high-efficiency, micro-power, surface mount LEDs.
  Drivers(s):Class 2, 50/60Hz. 100 - 277V, 4kV standard, 6kV optional surge protection. Lifespan:50,000+hour LED lifespan based on IES LM-80 results & TM-21 calculations at 25°C. IP Rating:Ingress Protection rating of NEMA 4/4X (IP66) for dust and water. Housing: Die-cast aluminum housing. Mounting: U-Bracket, slipfitter or wall mount options available. Lens:High transmittance tempered glass. Effective Projected Area: EPA = 0.61. Vibration Rating: 3G vibration tested per ANSI C136.31
  Dimming Driver: Driver includes dimming control wiring for 1-10V dimming systems. Requires separate 1-10V DC dimming circuit. Dims as low as 10%.(Optional
  dimming and non-dimming). CCT: Available in 2700K ~ 6500K color temperature. CRI: Minimum CRI of ≥70.Beam angle: Standard distribution is NEMA high/low bay
  lights (Type6). Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-years period. Color Uniformity:LCD-CES's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017. Finish: Formulated for high durability and long-lasting color. Green Technology: Mercury and UV free. RoHS-compliant components. IESNA LM-79 Testing: LCD LED luminaires have been tested by an independent laboratory in accordance with IESNALM-79.

  Applications:
  • Oil and gas refineries, drilling rigs, petrochemical facilities, food
  and beverage facilities, platforms, loading docks, tunnels, outdoor
  wall and stanchion mounted general area lighting, and where
  flammable vapors, gases, ignitable dusts, fibers or flyings are
  present
  • Locations requiring continuous and consistent light levels in
  extreme ambient temperatures
  • Where extremely corrosive, wet, dusty, hot and/or cold conditions
  exist
  • Type 4X, marine, wet locations and hose-down environments
  • Confined space or low ceiling areas, such as tunnels, utility
  rooms, over doorways, entries, landings, etc.
  • Areas requiring frequent on/off of lights
  • Areas where maintenance is difficult or challenging
  • Areas requiring shatter-protected products, such as food
  processing facilities
  • Outdoor wall or ceiling mounted area illumination
  • Low mounting heights
  • Classified and hazardous locations
