Classification:                Group IICategory 2GDInstallation: EN 60079.14              Zone 1 - Zone 2 (Gas)      Zone 21 - Zone 22 (Dust)Marking:Ex d IIC T6 Gb - Ex tD A21 IP65 T80ºCCertification:Atex and IECEx Standards:EN 60079-0: 2012, EN 60079-1: 2014, EN 60079-7: 2007, EN 60079-31: 2014 and EUROPEAN DIRECTIVE 2014/34/UE
IEC 60079-0: 2011, IEC 60079-1: 2014-06, IEC 60079-28: 2015, IEC 60079-31: 2013, IEC 60079-7: 2015
European Directive 2006/95 Low voltage
European Directive 2004/108 Electromagnetic compatibility
European Directive 2003/108 WEEE Waste electrical and electronic equipment
European Directive 2011/64 RoHSClass temperature:                         100°C (T5)                    85°C (T6)Ambient temperature:-30°C +65°C (T5 / IIC)-30°C +50°C (T6 / IIC)Degree of protection:                                                        IP66Remark:This equipment can be used in an environment containing explosive atmosphere and with the presence of hydrogen.

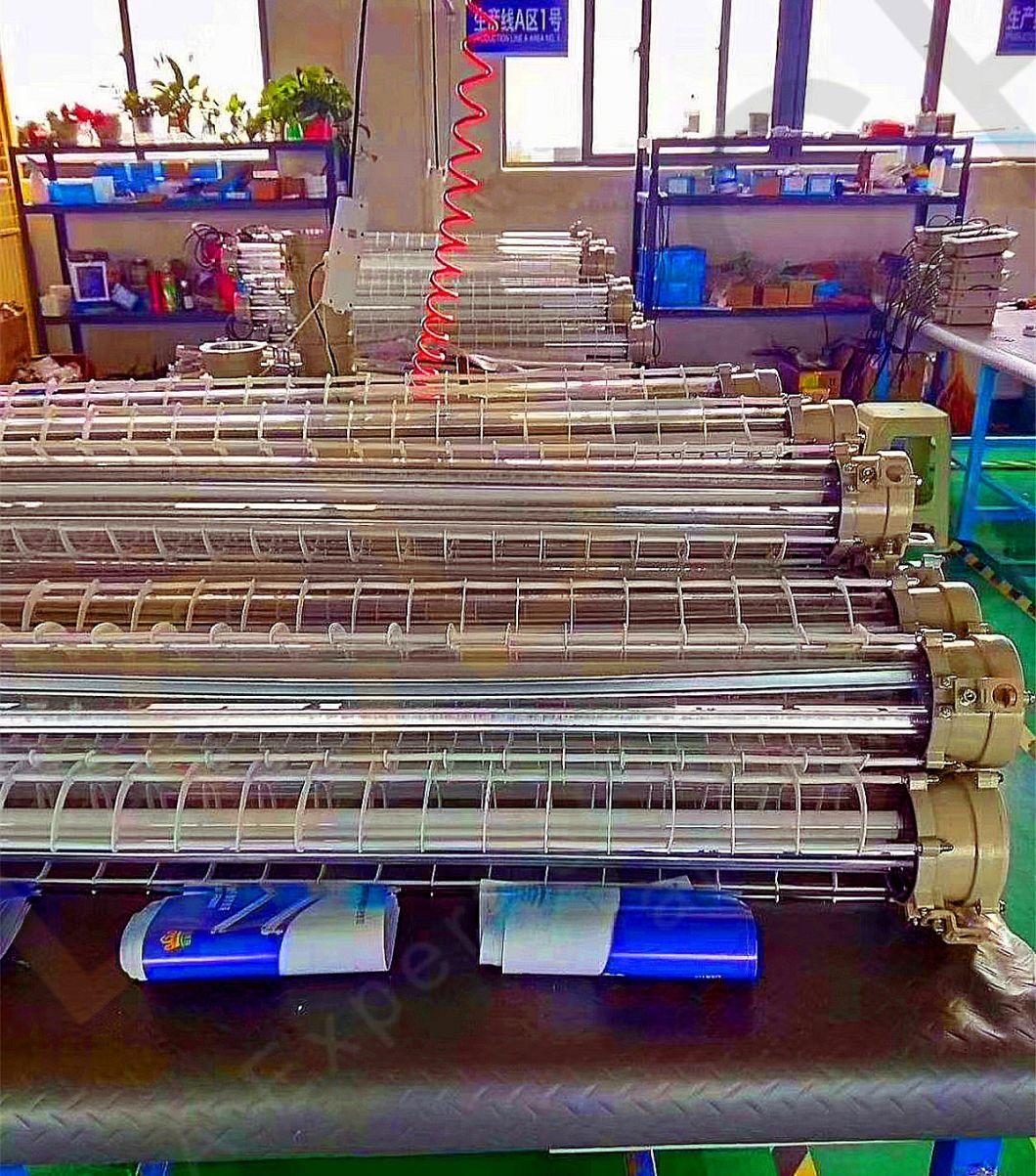

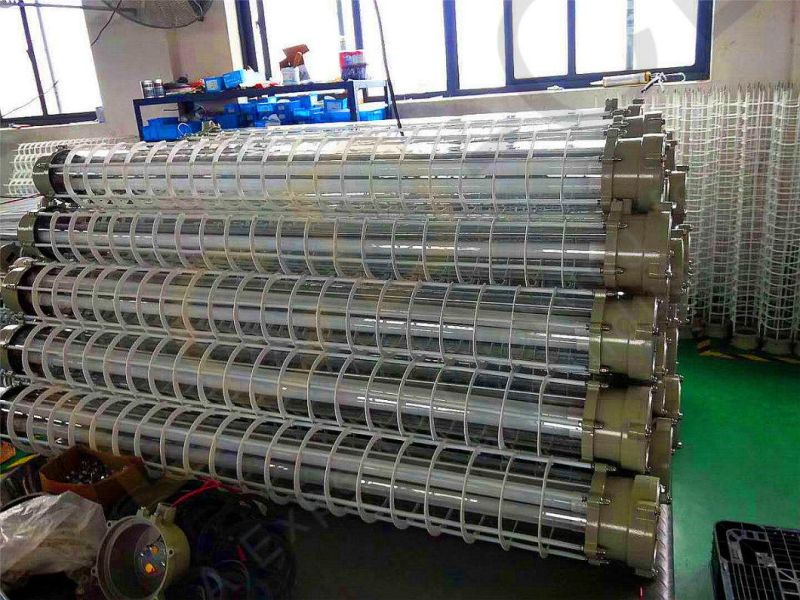

Explosion-proof high energy saving lighting fixtures 18W 28W 36W 38W 56W 72W 78W

MECHANICAL FEATURES

Body: Low copper content aluminium alloy ADC12 fixtures with Patent fins heat-Heatsink for PCB panel better heat dissipation.

Glass face: 6-9mm thick shock and temperature resistant tempered glass sealed with aluminium ring.

Supporting bracket: Galvanised steel or stainless steel #316 or #304 available.

Entries: M20 or M25 entries

Coating: Polyester coating (Light grey)

Corrosion resistant: The standard of the aluminium alloy used by LCD has passed the tests required by
standards EN60068-2-30 (hot/humid cycles) and EN60068-2-11 (salt mist tests).

led fluorescent  tube Optics

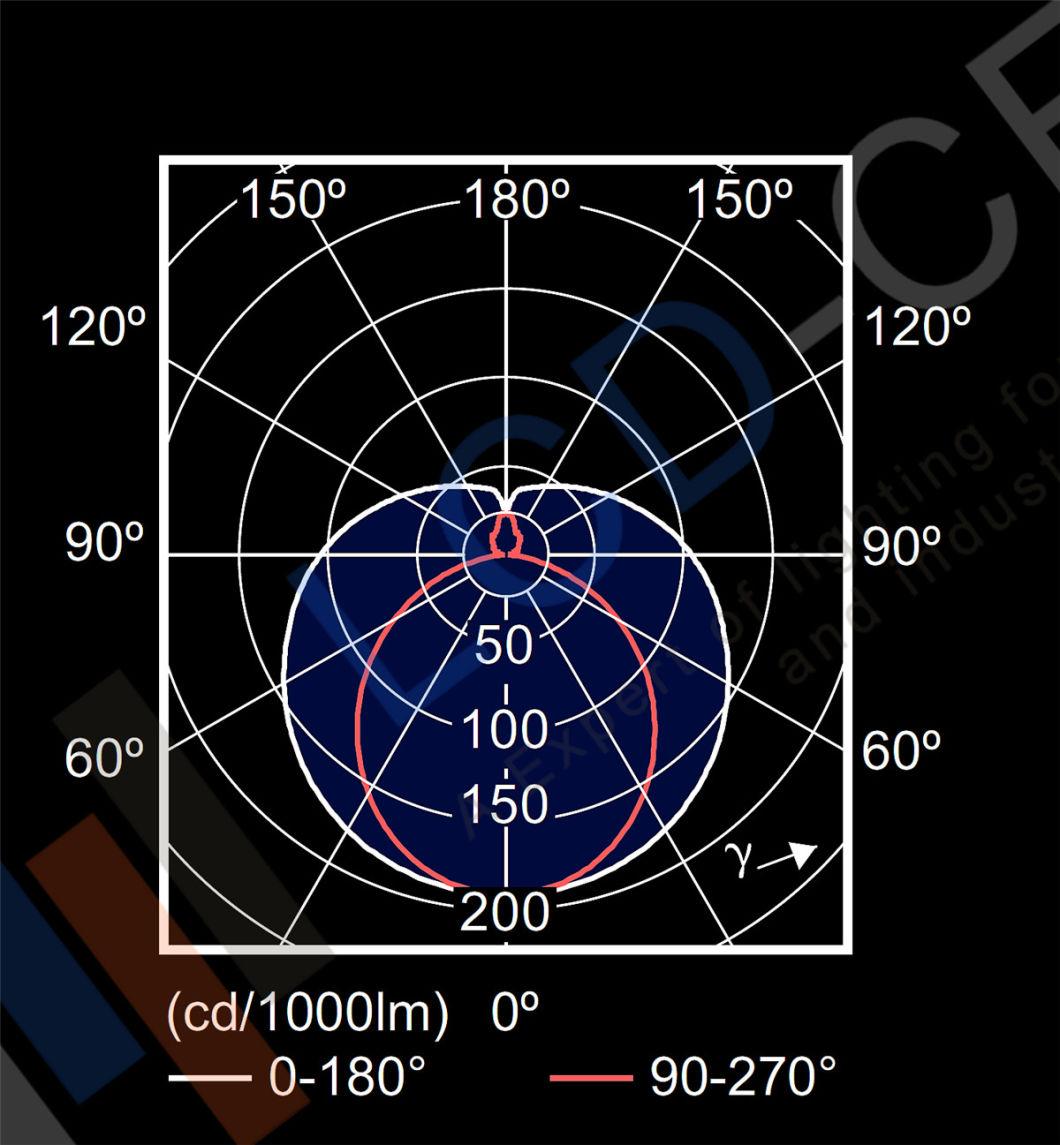

Optic beam 240°


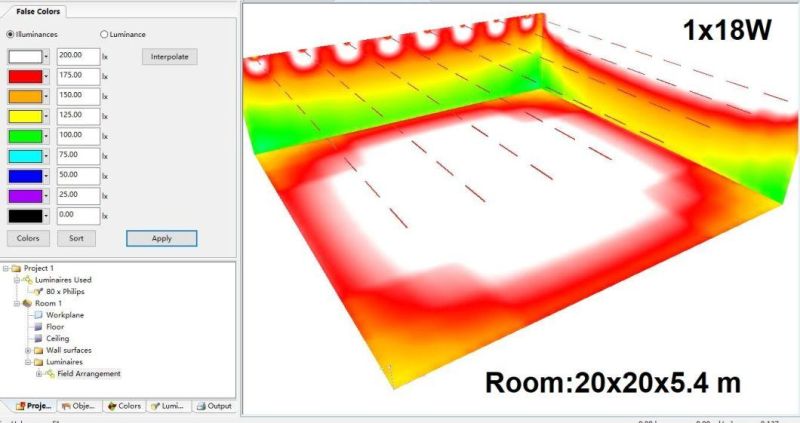

Each LED has a "circling shaped beam" optics lens or reflector that allows to distribute the light on the floor in a perfectly uniform way. Forthermore, the light points
can be optimized reducing the system costs. They are suitable for any indoor or outdoor application ensuring lighting of large areas and a fantastic and symmetrical distribution of the light.

Features:
- circling shaped beam
- Precision Component lens or reflector
- High efficiency lighting
- Excellent luminous flux
- Made of polycarbonate with special coating treatment
- Self-extinguishing UL94 guaranteed
- Vibration resistant
- Innovative design

Electrical technical data

Electrical featuresLCD-BPY5-1x18LCD-BPY5-1x28LCD-BPY5-1x38Power supply:                                                               100-277 VAC ±10% (12-32VDC on requests)Rated frequency:                                                                                         50/60 Hz ±5%Power consumption:         18W                                                                              28W                                                                38W Connection::                                Direct connection to terminal board L, N, Pe. Section 4mm2, suitable for loop-in/loop-outPower factor:                                                                                              >0,95Energy Efficiency Label (EEL):                                                                                                  A+

EMC

(electromagnetic compatibility):

                                              EN 55015, EN 61547, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4....THD (total harmonic distortion):                                                                                     <20% (100-277 Vac)Over-voltage protection:                                                                                                2-3 kVDriver performances:                                            Over-Voltage protection, Over-Current protection, Short-Circuit protectionDimmable (on request):                                                                                                    NPhotometric features LED:                                                                       Cree SMD 3030 or T8  Essential led tubeViewing angle:                                                                                                   240°Type:                                                                     Warm white ,  Neutral white , cool whiteGroup:                                                                                           symetrical Colour temperature:                                                   3000K , 4000K (red, yellow , green, blue etc on requests)CRI:                                                                                      >82 ( 3000K and 4000K)Instant Restrike:                                                                                                   0.5SL80:                                                                                                 >50,000Lumen:    1836lumen                                                                       2856lumen                                                        3876lumenMaximum light intensity: Overall efficiency:                                                                                          up to 110lumen/w

ACCESSORIES ON REQUESTS / SPECIAL REQUESTS
Different wattage  (code LCD-BPY5-1x18-XXXX-reflector /LCD-BPY5-2x18-XXXX-reflector ) Pipe / bracket / reflector

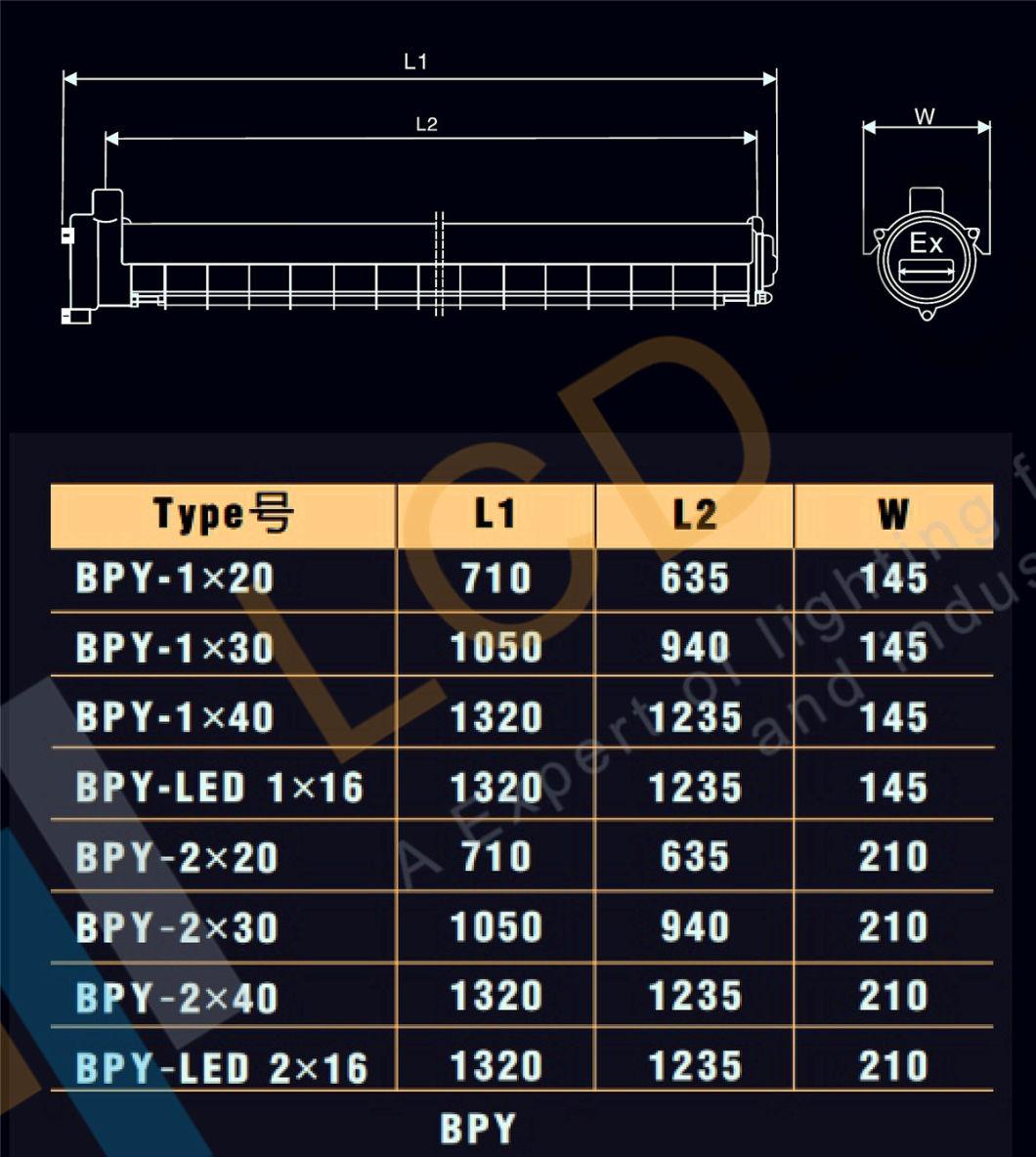

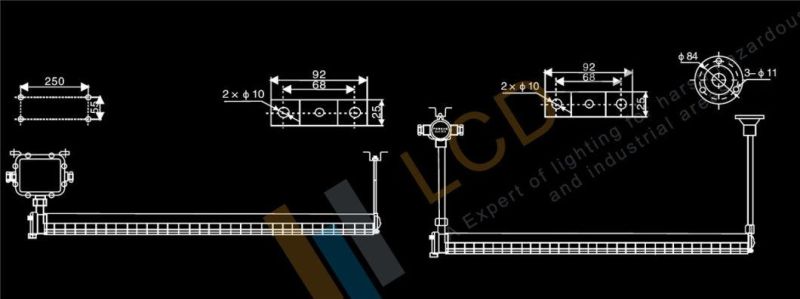

DIMENSIONAL DRAWING

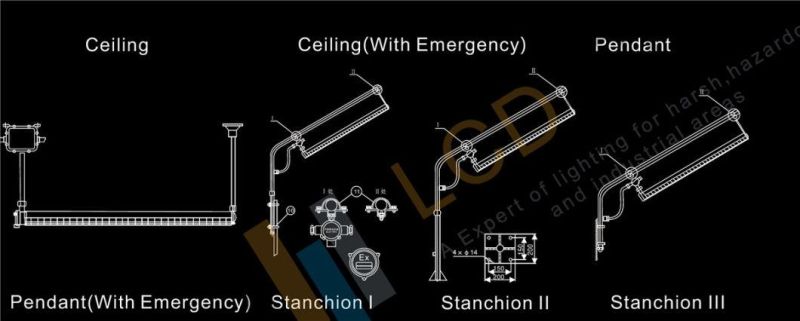

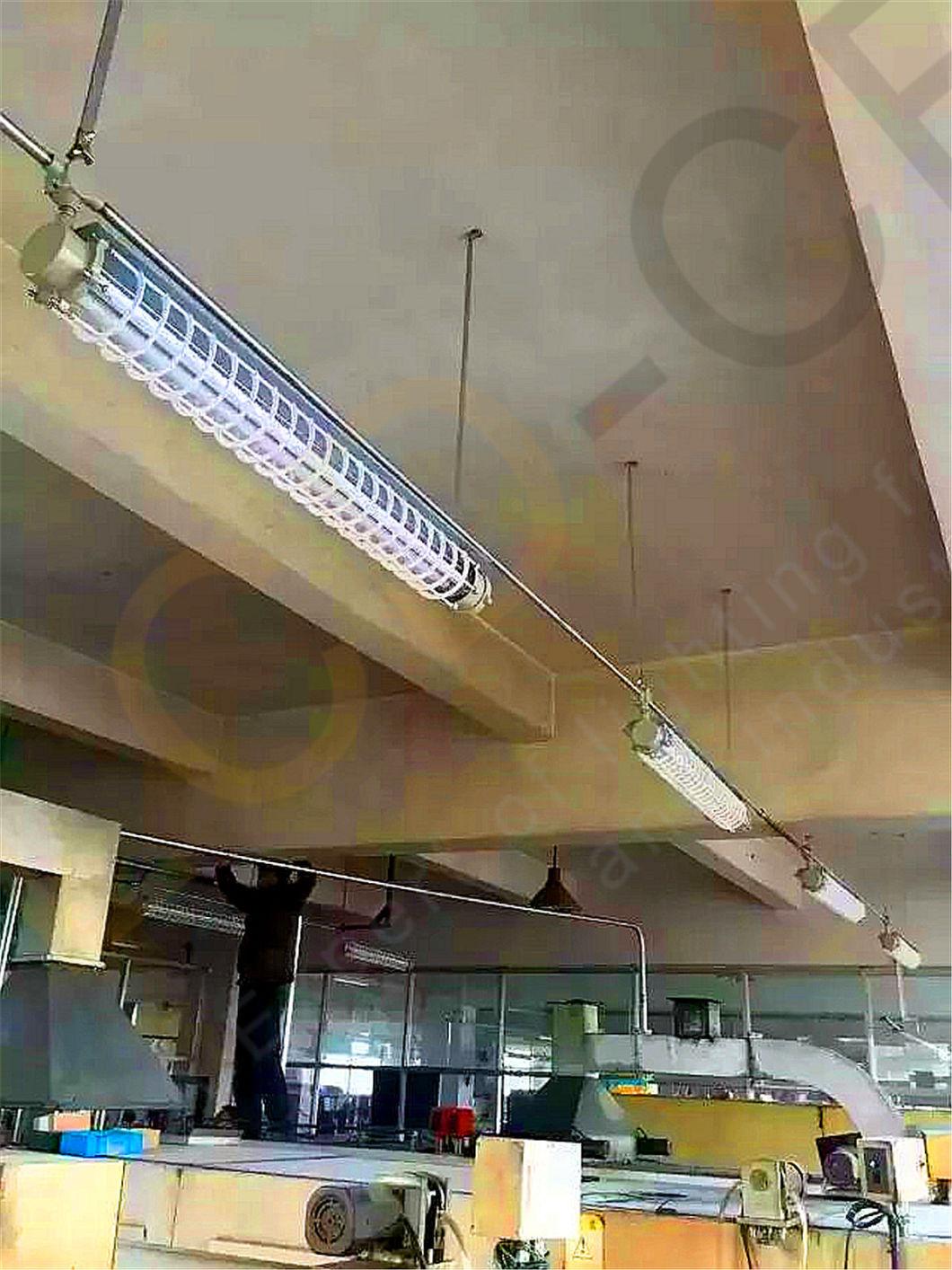

Installation and mounting methods
