Flame Proof LED Tube for Zone1 and 2 of Explosive Atmospheres Waterproof Dust Proof IP65 Lighting in Oil Refining, Storage, Chemical, Pharmaceutical, Military
LCD (HK) -CESP LIGHTING CO., LIMITED- Lamp Body Material:Aluminum Alloy
- IP Rating:IP65
- Base Type:T8 LED Fluorescent
- Irradiated Area:15-30m²
- Input Voltage:220v
- Power:18W 28W 36W 38W 56W 72W 78W
Base Info
- Model NO.:LCD-BPY5-1x28 & 2 x28
- Color Temperature:Warm White
- Emitting Color:Warm White, Daylight, Cool White
- LED Chips Brand:CREE, Lumileds, Bridgelux, Osram,
- Certification:CCC, CE, C-tick, EMC, Energy Star, ETL, FCC, LVD, PSE, RoHS, SAA, UL, Iecex , Atex , TUV
- Transport Package:Carton Box
- Trademark:LCD brand
- Origin:Shenzhen City, China
- HS Code:9405409000
- Production Capacity:50000PCS , Year
Description
IEC 60079-0: 2011, IEC 60079-1: 2014-06, IEC 60079-28: 2015, IEC 60079-31: 2013, IEC 60079-7: 2015
European Directive 2006/95 Low voltage
European Directive 2004/108 Electromagnetic compatibility
European Directive 2003/108 WEEE Waste electrical and electronic equipment
European Directive 2011/64 RoHS
Explosion-proof high energy saving lighting fixtures 18W 28W 36W 38W 56W 72W 78W
MECHANICAL FEATURES
Body: Low copper content aluminium alloy ADC12 fixtures with Patent fins heat-Heatsink for PCB panel better heat dissipation.
Glass face: 6-9mm thick shock and temperature resistant tempered glass sealed with aluminium ring.
Supporting bracket: Galvanised steel or stainless steel #316 or #304 available.
Entries: M20 or M25 entries
Coating: Polyester coating (Light grey)
Corrosion resistant: The standard of the aluminium alloy used by LCD has passed the tests required by
standards EN60068-2-30 (hot/humid cycles) and EN60068-2-11 (salt mist tests).

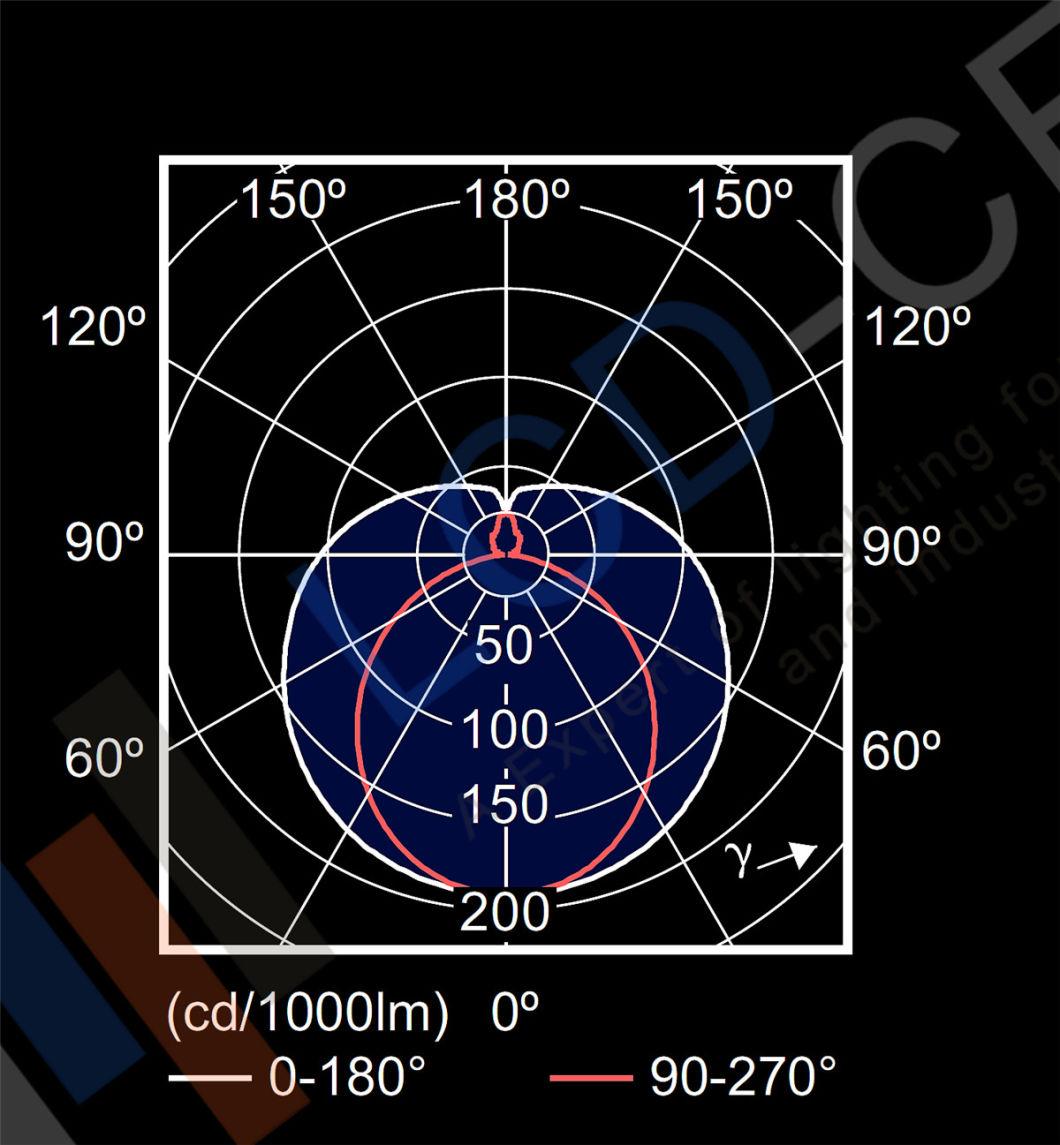

led fluorescent tube Optics
Optic beam 240°
Each LED has a "circling shaped beam" optics lens or reflector that allows to distribute the light on the floor in a perfectly uniform way. Forthermore, the light points
can be optimized reducing the system costs. They are suitable for any indoor or outdoor application ensuring lighting of large areas and a fantastic and symmetrical distribution of the light.
Features:
- circling shaped beam
- Precision Component lens or reflector
- High efficiency lighting
- Excellent luminous flux
- Made of polycarbonate with special coating treatment
- Self-extinguishing UL94 guaranteed
- Vibration resistant
- Innovative design
Electrical technical data
EMC
(electromagnetic compatibility):
ACCESSORIES ON REQUESTS / SPECIAL REQUESTS
Different wattage (code LCD-BPY5-1x18-XXXX-reflector /LCD-BPY5-2x18-XXXX-reflector ) Pipe / bracket / reflector

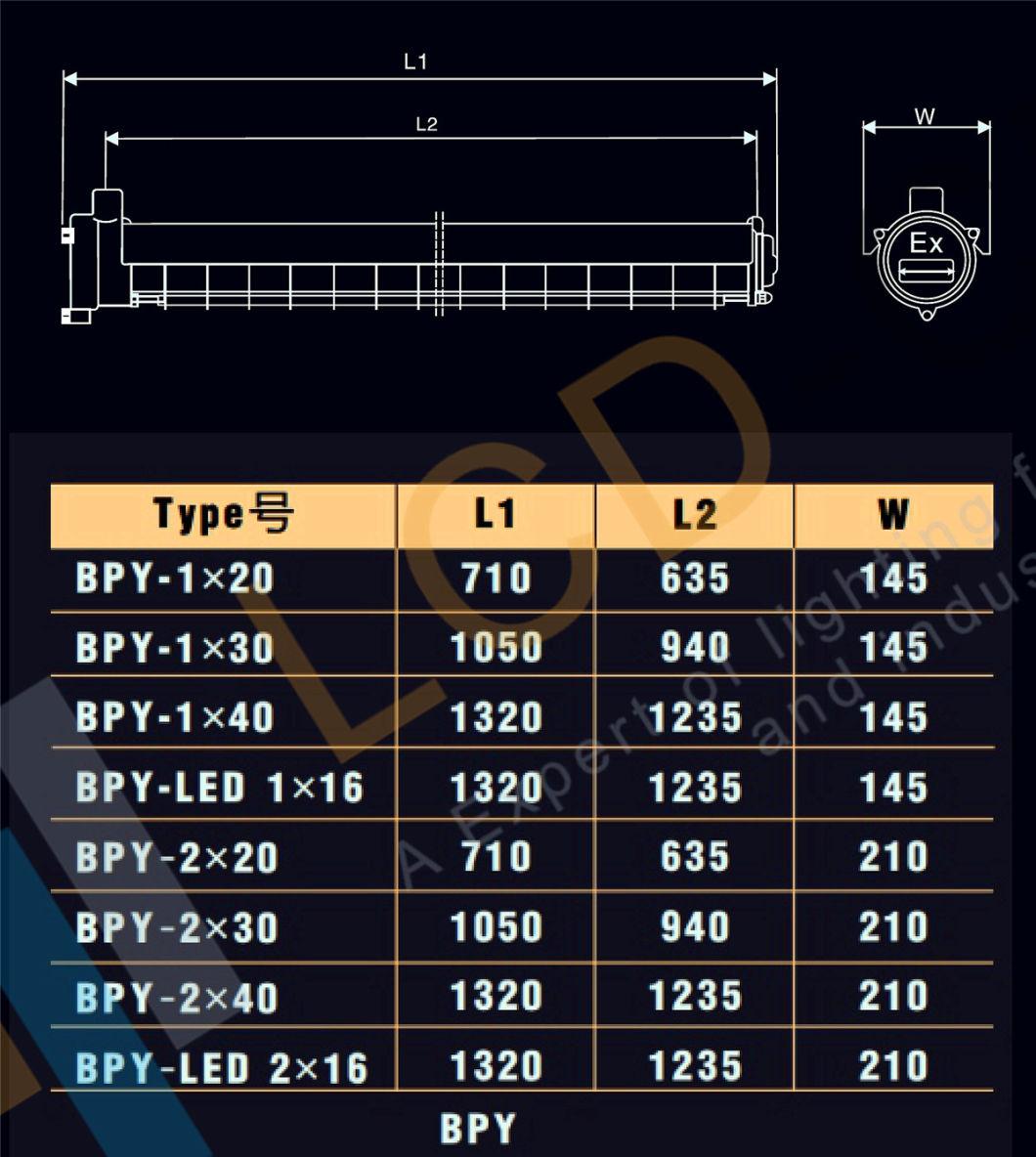

DIMENSIONAL DRAWING

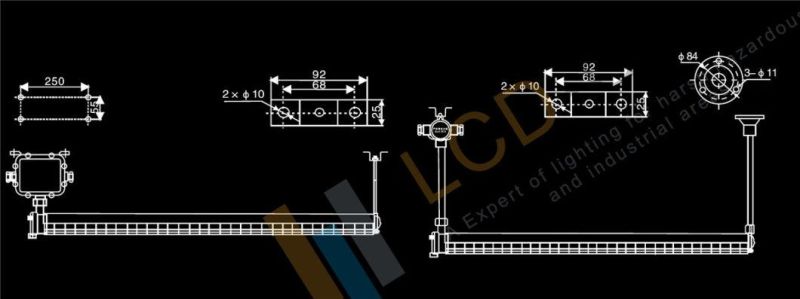

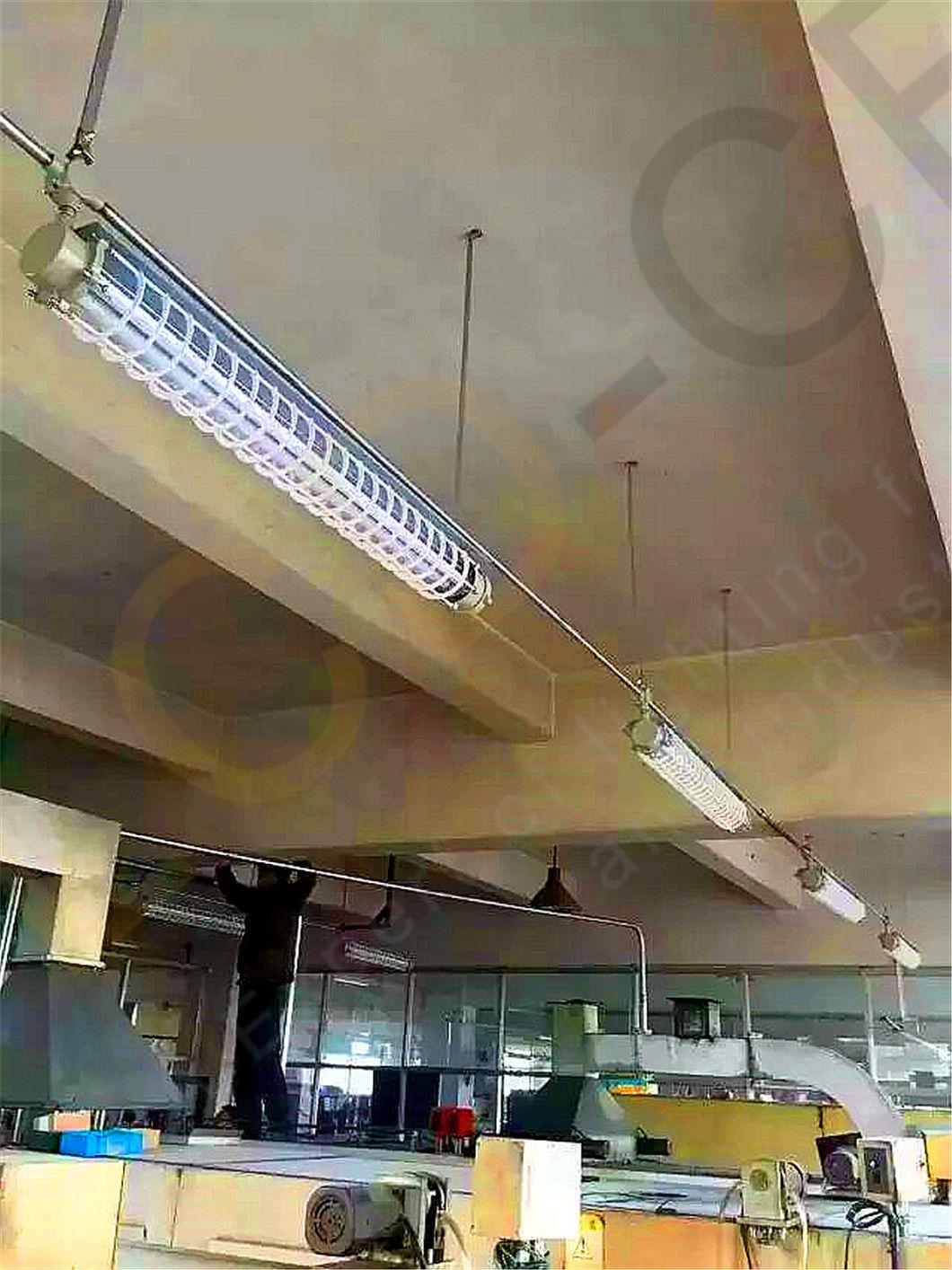

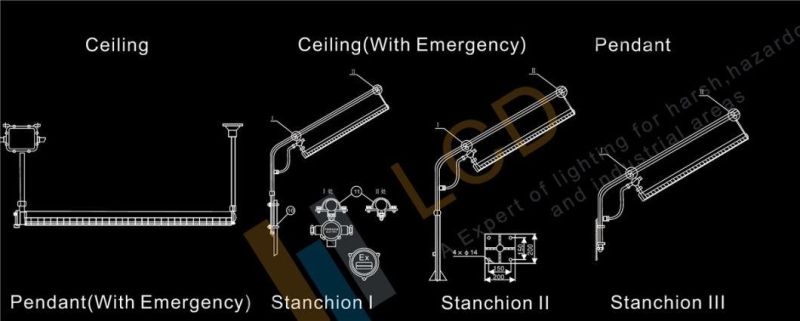

Installation and mounting methods
