• Model NO.：LCD-GYD680-150,CES-EX-GB-XXX
• Color Temperature：3000K 4000K 6500K
• Emitting Color：Blue
• LED Chips Brand：Nichia
• Certification：CCC, CE, C-tick, EMC, Energy Star, ETL, FCC, LVD, PSE, RoHS, SAA, SASO, UL, Atex Iecex
• Transport Package：Carton Box
• Specification：460x460x243mm
• Trademark：LCD brand
• Origin：Shenzhen City, China
• HS Code：9405409000
• Production Capacity：50000PCS , Year

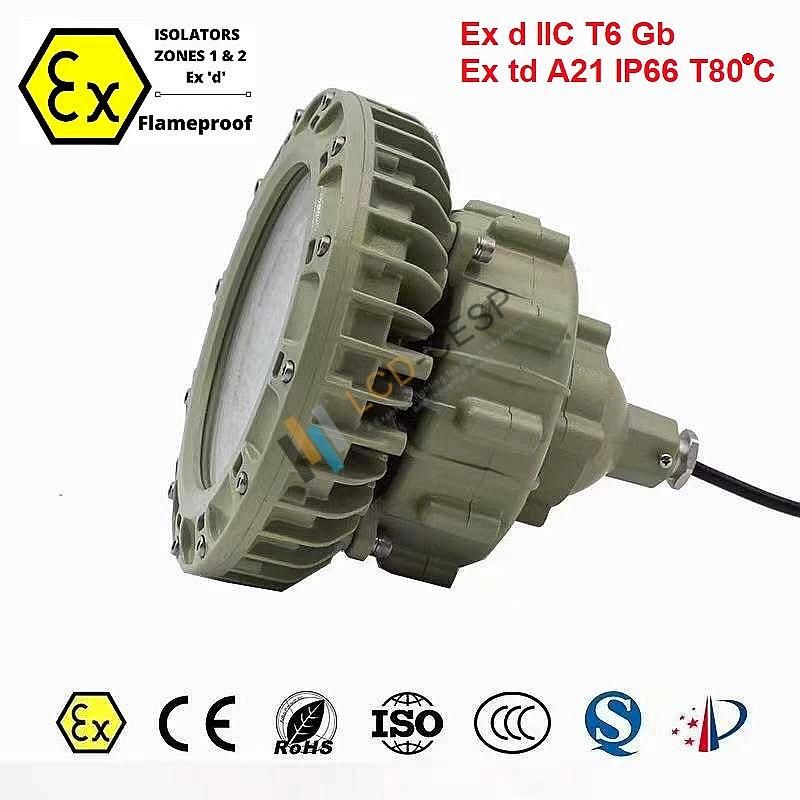

Classification:                Group IICategory 2GDInstallation: EN 60079.14              Zone 1 - Zone 2 (Gas)      Zone 21 - Zone 22 (Dust)Marking:Ex d IIC T6 Gb - Ex tD A21 IP66 T80ºCCertification:Atex and IECEx Standards:EN 60079-0: 2012, EN 60079-1: 2014, EN 60079-7: 2007, EN 60079-31: 2014 and EUROPEAN DIRECTIVE 2014/34/UE
IEC 60079-0: 2011, IEC 60079-1: 2014-06, IEC 60079-28: 2015, IEC 60079-31: 2013, IEC 60079-7: 2015
European Directive 2006/95 Low voltage
European Directive 2004/108 Electromagnetic compatibility
European Directive 2003/108 WEEE Waste electrical and electronic equipment
European Directive 2011/64 RoHSClass temperature:                         100°C (T5)                    85°C (T6)Ambient temperature:-30°C +45°C (T5 / IIC)-30°C +65°C (T6 / IIC)Degree of protection:                                                        IP66Remark:This equipment can be used in an environment containing explosive atmosphere and with the presence of hydrogen.



LCD-GYD680-XXX/CES-EX-GB-XXX Explosion proof flood & high bay lights


MECHANICAL FEATURES

Body: Low copper content aluminium alloy ADC12 fixtures with Patent fins heat-Heatsink for better heat dissipation.

Glass face: 9mm thick shock and temperature resistant tempered glass sealed with aluminium ring.

Supporting bracket: Galvanised steel or stainless steel #316 or #304 available.

Entries: M20 or M25 entries

Coating: Polyester coating (Light grey)

Corrosion resistant: The standard of the aluminium alloy used by LCD has passed the tests required by
standards EN60068-2-30 (hot/humid cycles) and EN60068-2-11 (salt mist tests).

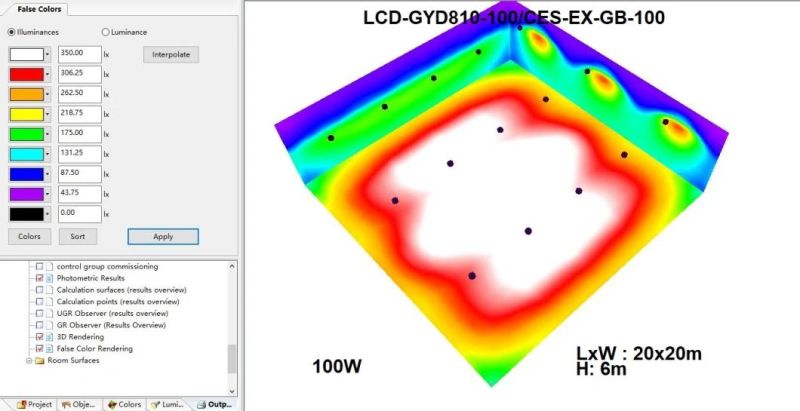

Flood & high bay light Optics

Optic beam 60°90°120°

Each LED has a "circling shaped beam" optics lens or reflector that allows to distribute the light on the floor in a perfectly uniform way. Forthermore, the light points
can be optimized reducing the system costs. They are suitable for any indoor or outdoor application ensuring lighting of large areas and a fantastic and symmetrical distribution of the light.

Features:
- circling shaped beam
- Precision Component lens or reflector
- High efficiency lighting
- Excellent luminous flux
- Made of polycarbonate with special coating treatment
- Self-extinguishing UL94 guaranteed
- Vibration resistant
- Innovative design

Electrical technical data

Electrical featuresLCD-GYD810-60/CES-EX-GB-60LCD-GYD810-100/CES-EX-GB-100LCD-GYD810-200/CES-EX-GB-200Power supply:                                                               100-277 VAC ±10% (12-32VDC on requests)Rated frequency:                                                                                         50/60 Hz ±5%Power consumption:         60W                                                                              100W                                                                200W Connection::                                Direct connection to terminal board L, N, Pe. Section 4mm2, suitable for loop-in/loop-outPower factor:                                                               >0,97Rated current:                        559 mA                                                             877mA                                                   1303 mA

EMC

(electromagnetic compatibility):

                                              EN 55015, EN 61547, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4....THD (total harmonic distortion):                                                                                     <15% (100-277 Vac)Over-voltage protection:                                                                                                3-4 kVDriver performances:                                            Over-Voltage protection, Over-Current protection, Short-Circuit protectionDimmable (on request):                                                                           (1-10 V) o PWM or Triac dimmer Photometric features LED:                                                                                    Cree SMD 3030 Viewing angle:                                                                                       60°, 90°, 120°Type:                                                                     Warm white ,  Neutral white , cool whiteGroup:                                                                                           symetrical Colour temperature:                                                   2700-6500K (red, yellow , green, blue etc on requests)CRI:                                                                                      >75 ( 2700-6500K)Instant Restrike:                                                                                                   ZeroL80:                                                           >90,000Lumen:    8100lumen                                                                       13500lumen                                                        27000lumenMaximum light intensity: Overall efficiency:                                                                                          up to 135lumen/w

ACCESSORIES ON REQUESTS / SPECIAL REQUESTS

Different wattage  (code LCD-GYD810-XXX-reflector /CES-EX-GB-XXX-reflector ) Pipe / bracket / reflector



DIMENSIONAL DRAWING

Code             Dimensions (mm)WattageClass(Ta=+60°C)Max surface temperature °CWeight   (kg)Carton Size (CM)                 ¢ D x H mmLCD-GYD810-60/CES-EX-GB-60             ¢ 270 x 170 mm   60W           T5                   100        4.5572*300*330mm(4pcs/carton) LCD-GYD810-100/CES-EX-GB-100             ¢ 320 x 170 mm  100W           T5                   100        6.0670*355*210mm(2pcs/carton)LCD-GYD810-200/CES-EX-GB-200             ¢ 360 x 170 mm  200W           T5                   100        8.5

410*365*195mm(1pcs/carton)

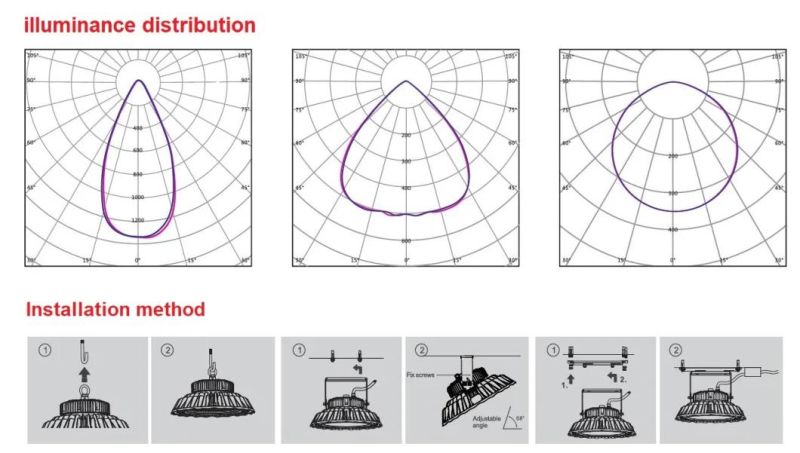

Installation and mounting methods



LCD-CES-EX-GB-01 Series
LED Explosion proof High Bay & flood Light for hazardous location

Feature:
•    Available from 100W (>10,000lm)- 200W (>22,000lm )
•    Offered with 5 mounting options: Ceiling mount, Drop mount, Wall mount, U-Bracket mount, Pole mount
•    1-10V Dimming is available(dimming and non-dimming optional)
•    Motion sensor, photocell and Controller options are available
•    50,000+ hours LED lifespan
•    High Quality LM80 Certify Chip
•    Operation temp: -40°C to +50°C
•    70% - 80% saving compare to HPS/MH
•    Material: Die Cast Aluminum
•    Lens: Super Clear Tempered Glass
•    Diver: high reliability and long life power supply
•    Industry-leading efficacy: up to 110-140 LPW
•    Standard: IECEX/ATEX:IEC60079-0/l/28/31
ATEX & IECEx: Zone 1 & 21, Zone 2 & 22; IP66
                          IEC/EN 60079-0,1,28,31;
Ex Mark: II 2G Ex db op is IIC T4...T5…T6 Gb;
                II 2D Ex tb op is IIIC T103°C ... T98°C ... T93°C Db;

Specifications
ATEX & I ECEx: Operating temperature: -40°(to +55°( (-40° F to 131° F). LEDs: Long-life, high-efficiency, micro-power, surface mount LEDs.
Drivers(s):Class 2, 50/60Hz. 100 - 277V, 4kV standard, 6kV optional surge protection. Lifespan:50,000+hour LED lifespan based on IES LM-80 results & TM-21 calculations at 25°C. IP Rating:Ingress Protection rating of NEMA 4/4X (IP66) for dust and water. Housing: Die-cast aluminum housing. Mounting: U-Bracket, slipfitter or wall mount options available. Lens:High transmittance tempered glass. Effective Projected Area: EPA = 0.61. Vibration Rating: 3G vibration tested per ANSI C136.31
Dimming Driver: Driver includes dimming control wiring for 1-10V dimming systems. Requires separate 1-10V DC dimming circuit. Dims as low as 10%.(Optional
dimming and non-dimming). CCT: Available in 2700K ~ 6500K color temperature. CRI: Minimum CRI of ≥70.Beam angle: Standard distribution is NEMA high/low bay
lights (Type6). Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-years period. Color Uniformity:LCD-CES's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017. Finish: Formulated for high durability and long-lasting color. Green Technology: Mercury and UV free. RoHS-compliant components. IESNA LM-79 Testing: LCD LED luminaires have been tested by an independent laboratory in accordance with IESNALM-79.

Applications:
• Oil and gas refineries, drilling rigs, petrochemical facilities, food
and beverage facilities, platforms, loading docks, tunnels, outdoor
wall and stanchion mounted general area lighting, and where
flammable vapors, gases, ignitable dusts, fibers or flyings are
present
• Locations requiring continuous and consistent light levels in
extreme ambient temperatures
• Where extremely corrosive, wet, dusty, hot and/or cold conditions
exist
• Type 4X, marine, wet locations and hose-down environments
• Confined space or low ceiling areas, such as tunnels, utility
rooms, over doorways, entries, landings, etc.
• Areas requiring frequent on/off of lights
• Areas where maintenance is difficult or challenging
• Areas requiring shatter-protected products, such as food
processing facilities
• Outdoor wall or ceiling mounted area illumination
• Low mounting heights
• Classified and hazardous locations
