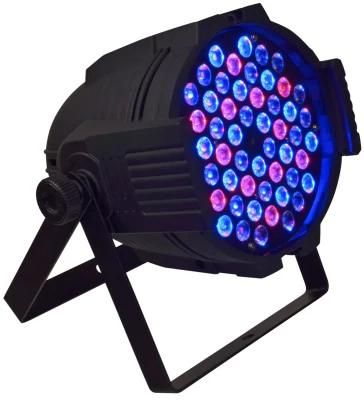

• Model NO.：LED 1005IIIV
• Electric Current Type：AC
• Input Voltage：110-220V
• Diffuser：Polycarbonate
• Shell Material：Aluminium Alloy
• LED Chips：CREE
• Certification：CE
• Color：RGBWA 5-in-1
• Channels：8CH,5CH
• Transport Package：Carton,Flycase
• Specification：Dimensions: 25*25*37cm Weight: 5.00kg
• Trademark：MSLighting
• Origin：Guangzhou, China
• HS Code：94054090
• Production Capacity：500PCS,Week

Specification:ModelLED 1005IIIV (7*15W RGBWA 5-IN-1 MULTI-CHIP LED)DMX Channel8CH/5CHControl panelDigital 4 characters alphanumericHousing ColorBlackOperating voltage100-230V ACControl ModesDirect DMX 512, Master/slave. Stand alone. Sound ActivityConnector3-PinXLR (In and Out)NO. of LED7*RGBWA 5-IN-1 MULTI-CHIP LED LAMPLED Life Time80000-100, 000 hoursBeam Angle25° /30°Power Consumption180WLight Projecting Distance5-50MIP RatingWaterproof IP 65 outdoor, IndoorOperating Temperature-20° c-+45° cPacking Dimension27*27*36cm/ 81*55*42cm (6pcs)Gross Weight4.80KGS /28.00kg(6pcs)Compatibility:1. Color Range: 16.7 million  additive  RGBWA  colors; continuously  variable  intensity (256× 256× 256=16777216)2. Dimming 0-100%with regulated constant color control3. Strobe: 10 Flashed per second (any color)4. Function: it is max mix color, color change, flash, speed/luminance the adjustable5.8channel Mode and 5channel Mode would change each other in every light6.8CH Mode DMX ValueCH 1_ General dimmer        (1-255, from dart to light)CH 2_ Red                       (1-255, Dimmer, from dart to light)CH 3_ Green                     (1-255, Dimmer, from dart to light)CH 4_ Blue                        (1-255, Dimmer, from dart to light)CH 5_ White                       (1-255, Dimmer, from dart to light)CH 6_ AMBER                     (1-255, Dimmer, from dart to light)CH 7_ Strobe & Color change/ color gradual change openCH 8_ Strobe & Color change& color gradual change' s speed adjustment (1-255, Speed adjustment, from slow to fast)7.5CH Mode DMX ValueCH 1_ Red                   (1-255, Dimmer, from dart to light)CH 2_ Green                 (1-255, Dimmer, from dart to light)CH 3_ Blue                   (1-255, Dimmer, from dart to light)CH 4_ White/Amber          (1-255, Dimmer, from dart to light)CH 5_ AMBER                (1-255, Dimmer, from dart to light)8. Control modes0: sound activity mode1. DMX control mode2. Adjusting the color manual3. Adjusting the brightness manual4. Adjusting the strobe manual5. Adjusting the strobe speed manual6. Master-slave control mode, as the master7. Sound activity synchronization mode 8. Adjustingcolor' s gradual change manual 9. Adjustinggradual change' s speed
Package
