• Model NO.：LCD-GYD780-150-XXX , LCD-CES-EX-GB-XXX
• Color Temperature：Pure White
• Emitting Color：3000K 4000K 6500K
• LED Chips Brand：CREE Lumileds Osram
• Certification：CE, C-tick, EMC, Energy Star, ETL, LVD, PSE, RoHS, SAA, UL, Atex Iecex
• Transport Package：Carton Box
• Specification：400x400x169mm
• Trademark：LCD brand
• Origin：Shenzhen City, China
• HS Code：9405409000
• Production Capacity：50000PCS , Year

50W / 80W /100W ATEX & IECEx Flood & high bay lightLCD-GYD780-50/80/100LEDsBrand: CreeCCT: 3000k, 4000k, 6000KEfficiency: 135lm/wLumen: 6250-13500lmCRI:75Test: LM80Beam Angle60° / 90° / 120° degreeDriverBrand: MeanwellPF: 0.95Efficiency: 90%Voltage: 100~277vAC or 12-32VDCFrequency: 50/60HzCurrent: 1.44 AInstructureMaterial: 12mm flame proof Aluminum alloy + 15mm Temple glassConnecting terminals: 3 cores standardGland: 1 x M25 or 1xM20Support: BracketWaterproofIP66ATEX InformationCertificate: TUV 18 ATEX 8298 XMarks: D II 2 G Ex db IIB T6 Gb / D II 2 D Ex tb IIIC T80°C Db IP66Zone 1& 21, 2 & 22IECEx InformationCertificate: IECEx TUR 18.0064 XMarks: Ex db IIB T6 Gb/ Ex tb IIIC T80°C DbZone 1& 21, 2 & 22Working Temp.:T -30 °C up to +55 °CWeight10KGWarranty5 years

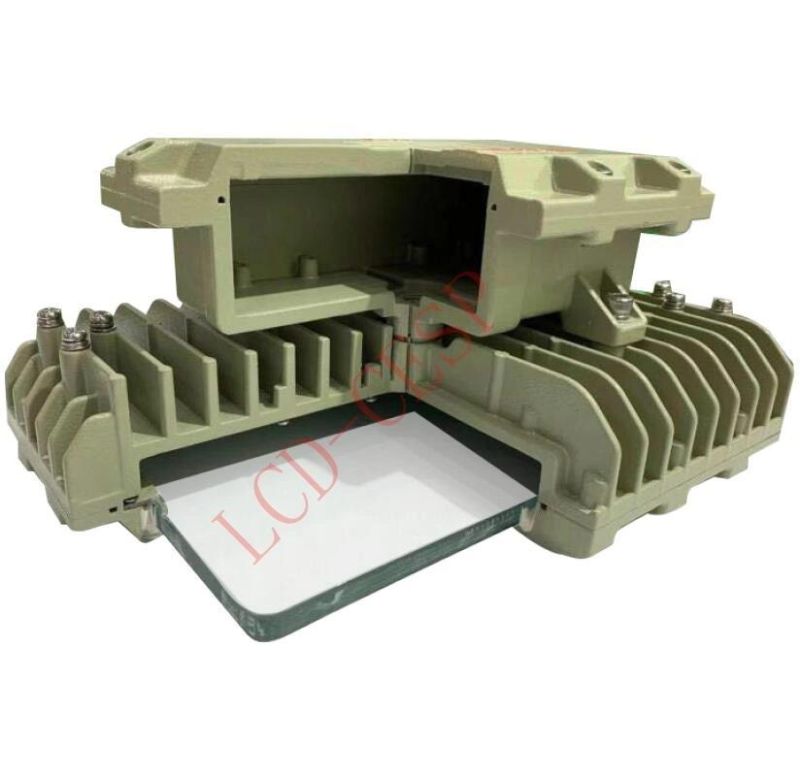

Product Pictures:

Installation
• Mounting options include:
• Adjustable U-Bracket for ceiling, wall, etc.
• Pendant
• For installations where power surge may be possible, NICOR recommends installing additional
surge protection at the electrical distribution panel.


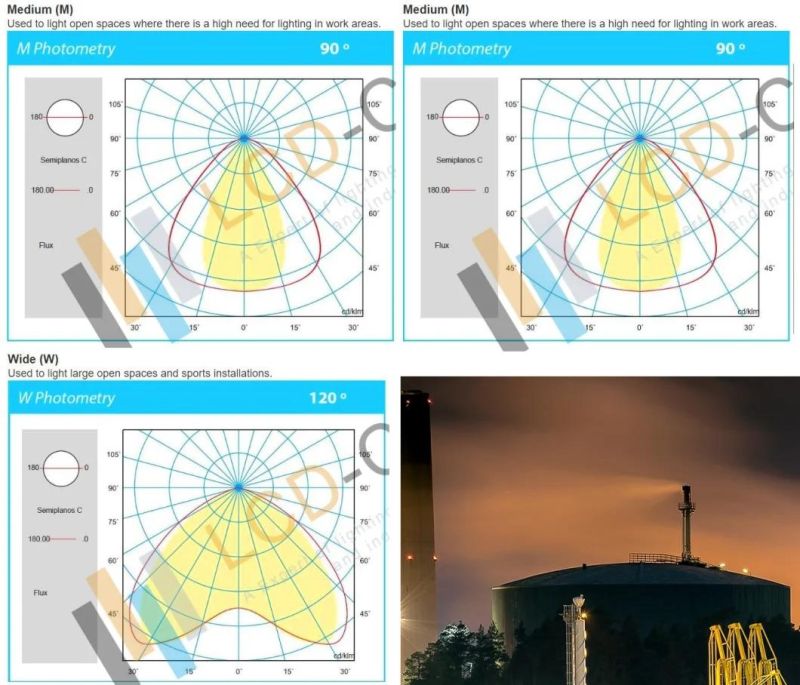

Photometric Data (LIGHT DISTRIBUTION CURVE)

LCD-CES-EX-GB-01 Series
LED Explosion proof High Bay & flood Light for hazardous location

Feature:
•    Available from 100W (>10,000lm)- 200W (>22,000lm )
•    Offered with 5 mounting options: Ceiling mount, Drop mount, Wall mount, U-Bracket mount, Pole mount
•    1-10V Dimming is available(dimming and non-dimming optional)
•    Motion sensor, photocell and Controller options are available
•    50,000+ hours LED lifespan
•    High Quality LM80 Certify Chip
•    Operation temp: -40°C to +50°C
•    70% - 80% saving compare to HPS/MH
•    Material: Die Cast Aluminum
•    Lens: Super Clear Tempered Glass
•    Diver: high reliability and long life power supply
•    Industry-leading efficacy: up to 110-140 LPW
•    Standard: IECEX/ATEX:IEC60079-0/l/28/31
ATEX & IECEx: Zone 1 & 21, Zone 2 & 22; IP66
                          IEC/EN 60079-0,1,28,31;
Ex Mark: II 2G Ex db op is IIC T4...T5…T6 Gb;
                II 2D Ex tb op is IIIC T103°C ... T98°C ... T93°C Db;
High lumen output 24050lm IK09 waterproof IP68 LED Flood Light 185W for 7 years



Features + benefits

The LCD-CES-J range is designed specifically for harsh & hazardous environments which require high performance,
high reliability, White-Light, safety and durable illumination. Using LCD-CESP's professional LED technology, LCD-CES-J is
ATEX and IEC Ex approved for all Zone 1 applications and rated for T5 and T6 environments.
LCD-CES-J is ideal for applications where space is restricted with its compact, low profile design, which
also allows easy access to the back of the unit with rear cable entries so cabling can be hidden and protected from
damage. Housed in marine grade aluminium, LCD-CES-J is IP67 and IP68 rated and can survive the most
extreme environments.
LCD-CES-J is available in a range of different beam patterns, such as 25º 60º 90º 120º, with revolutionary
interchangeable PC lens inserts which can be easily altered on site delivering the ultimate flexibility to specifiers,
distributors and end users. Delivering high performance illumination of up to 24,050 lumens,











CERTIFICATIONSLCD-CES-J series is a hazardous location LED lighting fixture Class I Division 2,
Groups A,B,C and D; Group II, Zone 1 & Zone 2; Zone 21 & 22.HOUSING BODYAluminum alloy ADC12LENS4mm thick tempered glass & PC reflector 25º 60º 90º 120º
+95% light transmission.
Shock and vibrations resistant.PERFORMANCE2600 to 24,050+ lumens
Up to 135 lm/w.
From 20W up to 185W.
L70 (hrs) rated > 65,000.IP67 & IP68 RATEDDust tight and protected against the effects of immersion in water to
depth between 15 cm and 1 meter.
0-10V dimming standard.
Ideal for heavy industry, mining, refineries, chemical industry, coastal
marine facilities and corrosive applications.MOUNTINGSurface/wall mount standard (adjustable mount bracket included).
Pendant kit optional.OPERATING TEMPERATUREFrom -40°F up to 122°F (-40°C to 50°C).DIMMING0-10V dimming standard , DALI, Triac





Technical Specifications

Certification
ATEX Rating: ATEX and IEC Ex rated for Gas and Dust
Hazardous Area rating: Zone 1 - Gas and Dust


Certificates:
UL, including C1D2

Gas: II 2 GD  Ex e mb op is IIC T* Gb
Ta= Up to -30°C to +50°C (-20°C to +46°C for emergency variants)
Dust:II 2D  Ex tb op is IIIC T* Db
Ta= Up to -30°C to +50°C (-20°C to +46°C for emergency variants)
IP67 & IP68



Electrical
Input:
100-277VAC, 50/60Hz  only
Low voltage: 18-48V AC and 18-32V DC
Extra low voltage: 12V AC/DC
Power:
20W to 185W standard
Termination

Incoming terminal block suitable for
looping 4 core 4mm² cable
Power Factor:

>0.95
Cable Entries:

4xM20 as standard (other entries
available upon request), dispatched
complete with three ATEX/IEC Ex
approved blanking plug



Optical / Photometric Specs
Beam Patterns-symmetric : 25°x 25° or 60°x 60° or 90°x 90° or 120°x 120°
(10 x 10 option can be upgraded to LCD-CESP Technology)
Lumen output on mains: 2,600 lm - 24,050 lm
LED type: Bridgelux or LUMILEDs SMD3030 LEDs chip
Number of LEDs: 36 / 108 / 192
CRI 75+
Colour Temperature: 3,000K 4,000K 6,000K

25º



60º



90º



120º





Mechanical/Environmental
Burning position: Universal
IP rating: IP67 & IP68
Temperature range: -30°C to +50°C (-20°C to +46°C for emergency variants)
Weight: Please contact LCD-CESP for copy
Enclosure: Marine grade aluminium epoxy powder coated, toughened glass, all external
fasteners and brackets are marine grade stainless steel
Unit Colour: grey , yellow, orange
Installation instructions: Please contact LCD-CESP for copy
Dimensions: Please contact LCD-CESP for copy
Mounting: Comes complete with stainless steel brackets(as shown on below )
Other options available
