LED Light Explosion Proof Light 50W/60W/80W/100W with Atex Iecex Certificates Zone 1 & 21 Explosion Proof Floodlight NPT3/4 Pipe Brackets Mounting for 7 Years
LCD (HK) -CESP LIGHTING CO., LIMITED- Lamp Body Material:Aluminum Alloy
- IP Rating:IP67
- Base Type:Bracket or Suspend
- Irradiated Area:15-30m²
- Input Voltage:85-265VAC
- Power:60-100w
Base Info
- Model NO.:LCD-GYD780-80-LN60 , LCD-CES-EX-GB-XXX
- Color Temperature:Cool White
- Emitting Color:3000K 4000K 6000K
- LED Chips Brand:Bridgelux
- Certification:CE, C-tick, EMC, Energy Star, ETL, LVD, PSE, RoHS, SAA, UL, Atex Iecex
- Transport Package:Carton Box
- Specification:300x300x165mm
- Trademark:LCD brand
- Origin:Shenzhen City, China
- HS Code:9405409000
- Production Capacity:50000PCS , Year
Description
Product Pictures:
Installation
• Mounting options include:
• Adjustable U-Bracket for ceiling, wall, etc.
• Pendant
• For installations where power surge may be possible, NICOR recommends installing additional
surge protection at the electrical distribution panel.
Photometric Data (LIGHT DISTRIBUTION CURVE)
LED Explosion proof High Bay & flood Light for hazardous location
Feature:
• Available from 100W (>10,000lm)- 200W (>22,000lm )
• Offered with 5 mounting options: Ceiling mount, Drop mount, Wall mount, U-Bracket mount, Pole mount
• 1-10V Dimming is available(dimming and non-dimming optional)
• Motion sensor, photocell and Controller options are available
• 50,000+ hours LED lifespan
• High Quality LM80 Certify Chip
• Operation temp: -40°C to +50°C
• 70% - 80% saving compare to HPS/MH
• Material: Die Cast Aluminum
• Lens: Super Clear Tempered Glass
• Diver: high reliability and long life power supply
• Industry-leading efficacy: up to 110-140 LPW
• Standard: IECEX/ATEX:IEC60079-0/l/28/31
Product Pictures:
Installation
• Mounting options include:
• Adjustable U-Bracket for ceiling, wall, etc.
• Pendant
• For installations where power surge may be possible, NICOR recommends installing additional
surge protection at the electrical distribution panel.
Photometric Data (LIGHT DISTRIBUTION CURVE)
LED Explosion proof High Bay & flood Light for hazardous location
Feature:
• Available from 100W (>10,000lm)- 200W (>22,000lm )
• Offered with 5 mounting options: Ceiling mount, Drop mount, Wall mount, U-Bracket mount, Pole mount
• 1-10V Dimming is available(dimming and non-dimming optional)
• Motion sensor, photocell and Controller options are available
• 50,000+ hours LED lifespan
• High Quality LM80 Certify Chip
• Operation temp: -40°C to +50°C
• 70% - 80% saving compare to HPS/MH
• Material: Die Cast Aluminum
• Lens: Super Clear Tempered Glass
• Diver: high reliability and long life power supply
• Industry-leading efficacy: up to 110-140 LPW
• Standard: IECEX/ATEX:IEC60079-0/l/28/31
ATEX & IECEx: Zone 1 & 21, Zone 2 & 22; IP66
IEC/EN 60079-0,1,28,31;
Ex Mark: II 2G Ex db op is IIC T4...T5…T6 Gb;
II 2D Ex tb op is IIIC T103°C ... T98°C ... T93°C Db;
High Lumen SMD 3030 Waterproof 185W IP68 LED Flood Light
High lumen output 24050lm IK09 waterproof IP68 LED Flood Light 185W for 7 years
Features + benefits
The LCD-CES-J range is designed specifically for harsh & hazardous environments which require high performance,
high reliability, White-Light, safety and durable illumination. Using LCD-CESP's professional LED technology, LCD-CES-J is
ATEX and IEC Ex approved for all Zone 1 applications and rated for T5 and T6 environments.
LCD-CES-J is ideal for applications where space is restricted with its compact, low profile design, which
also allows easy access to the back of the unit with rear cable entries so cabling can be hidden and protected from
damage. Housed in marine grade aluminium, LCD-CES-J is IP67 and IP68 rated and can survive the most
extreme environments.
LCD-CES-J is available in a range of different beam patterns, such as 25º 60º 90º 120º, with revolutionary
interchangeable PC lens inserts which can be easily altered on site delivering the ultimate flexibility to specifiers,
distributors and end users. Delivering high performance illumination of up to 24,050 lumens,
Groups A,B,C and D; Group II, Zone 1 & Zone 2; Zone 21 & 22.
+95% light transmission.
Shock and vibrations resistant.
Up to 135 lm/w.
From 20W up to 185W.
L70 (hrs) rated > 65,000.
depth between 15 cm and 1 meter.
0-10V dimming standard.
Ideal for heavy industry, mining, refineries, chemical industry, coastal
marine facilities and corrosive applications.
Pendant kit optional.
Technical Specifications
Certification
ATEX Rating: ATEX and IEC Ex rated for Gas and Dust
Hazardous Area rating: Zone 1 - Gas and Dust
Certificates:
UL, including C1D2
Gas: II 2 GD Ex e mb op is IIC T* Gb
Ta= Up to -30°C to +50°C (-20°C to +46°C for emergency variants)
Dust:II 2D Ex tb op is IIIC T* Db
Ta= Up to -30°C to +50°C (-20°C to +46°C for emergency variants)
IP67 & IP68
Electrical
Input:
100-277VAC, 50/60Hz only
Low voltage: 18-48V AC and 18-32V DC
Extra low voltage: 12V AC/DC
Power:
20W to 185W standard
Termination
Incoming terminal block suitable for
looping 4 core 4mm² cable
Power Factor:
>0.95
Cable Entries:
4xM20 as standard (other entries
available upon request), dispatched
complete with three ATEX/IEC Ex
approved blanking plug
Optical / Photometric Specs
Beam Patterns-symmetric : 25°x 25° or 60°x 60° or 90°x 90° or 120°x 120°
(10 x 10 option can be upgraded to LCD-CESP Technology)
Lumen output on mains: 2,600 lm - 24,050 lm
LED type: Bridgelux or LUMILEDs SMD3030 LEDs chip
Number of LEDs: 36 / 108 / 192
CRI 75+
Colour Temperature: 3,000K 4,000K 6,000K
25º
60º
90º
120º
Mechanical/Environmental
Burning position: Universal
IP rating: IP67 & IP68
Temperature range: -30°C to +50°C (-20°C to +46°C for emergency variants)
Weight: Please contact LCD-CESP for copy

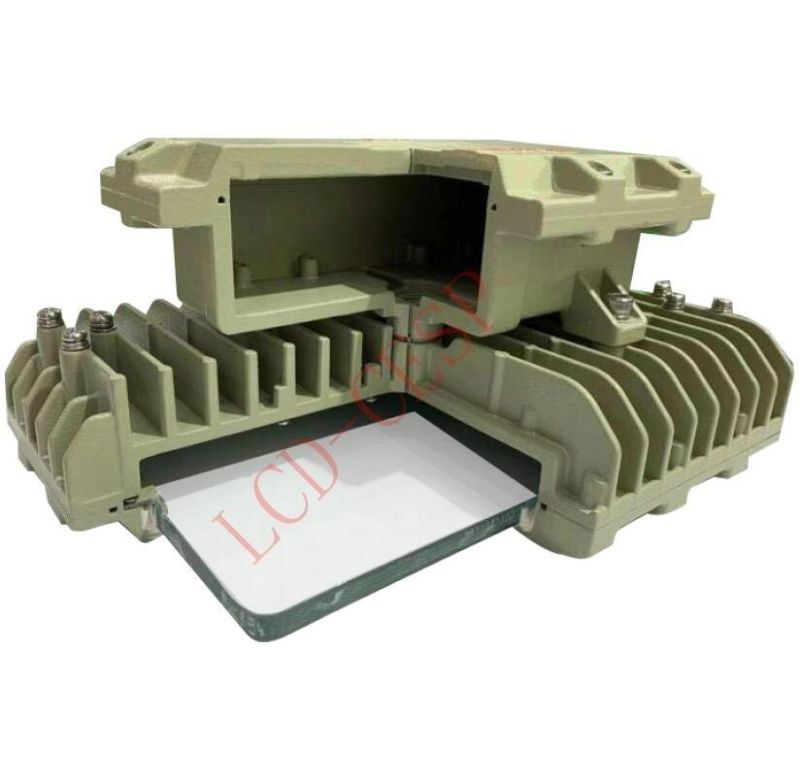

Enclosure: Marine grade aluminium epoxy powder coated, toughened glass, all external
fasteners and brackets are marine grade stainless steel
Unit Colour: grey , yellow, orange
Installation instructions: Please contact LCD-CESP for copy
Dimensions: Please contact LCD-CESP for copy
Mounting: Comes complete with stainless steel brackets(as shown on below )
Other options available
Model No. Power(W) Lumens(lm) Color temperature Input Voltage Current Weight(kg) Dimensions (mm)
LCD-CES-J20 20W 1300 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 4.0Kg 200x200x147
LCD-CES-J30 30W 2600 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 4.0Kg 200x200x147
LCD-CES-J40 40W 3900 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 4.0Kg 200x200x147
LCD-CES-J60 60W 6500 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 7.5Kg 300x300x165
LCD-CES-J80 80W 10400 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 7.5Kg 300x300x165
LCD-CES-J100 100W 13000 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 7.5Kg 300x300x165
LCD-CES-J120 120W 19500 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 10.5Kg 400x400x169
LCD-CES-J150 150W 26000 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 10.5Kg 400x400x169
LCD-CES-J185 185W 39000 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 10.5Kg 400x400x169
SUITABLE FOR: Mining Sites, Heavy Industrials, Storage Facility, Paper mills, Wastewater Treatment Plants, Loading Docks, Platforms, Shipyards, Chemical Processing Facility, Petrochemical Processing Facility. The Flood light Series LED Luminaires are designed for installations where moisture, dirt, dust, corrosion and vibration may be present, or NEMA 3 and 4X areas where wind, water, snow or high ambient can be expected. They can be used in locations made hazard-ous by the presence of flammable vapors or gases or combustible dusts as defined by the NEC and IEC and Atex.CES-J Series are ideal for retrofit of existing HPS/MH and offer higher efficacy for increased energy savings, lower maintenance costs and shorter paybacks.
Best-in-class system efficacy - Up to 130 Lm / W
Universal Voltage: AC 100~277V / 347~480V (50/60Hz)
Instant illumination and restrike - no warm-up time required
Wide ambient temp. range from - 40 C to + 60 C ( -40 F ~ + 140 F)
Safe and reliable heat transfer - Offering a T-rating of T6 ( CI D1 )
Shock-and vibration-resistant - Durable LEDs with solder-less board connection Copper-free aluminum body and frame -corrosion resistant
All exposed fasteners with quality stainless steel
High Temperature silicone gasketing
Thermal shock and impact resistant glass lens
Harsh & Hazardous Duty
Zone 1 & Zone 21
Zone 2 & Zone 22
Class I, Div. 2, Group A,B,C,D
Class II, Div. 2, Groups F,G
Class III
Enclosed and gasketed
Wet Locations / Type 4X / IP 66
UL-1598/8750 for LED Lighting
UL-1598(A)
UL-844 and CSA C22.2 for Hazardous locations DLC 4.0 Premium
(1)DC available on special request
(2)Warm white available indent only
*AC Current rating at 85 ~ 265VAC
**Black housing
***Marine coating
