EU Standard Atex IP66 Energry Saving Waterproof Outdoor Luminaire Luminous Flux 26K LED Ex Light 150W 200W LED High Light for Oil Gas Industrial Lighting 5 Year
LCD (HK) -CESP LIGHTING CO., LIMITED- Lamp Body Material:Stainless Steel
- IP Rating:IP65
- Base Type:LED Engine
- Irradiated Area:10-15m²
- Input Voltage:220v
- Power:20-185W
Base Info
- Model NO.:LCD-GYD780-150-XXX , LCD-CES-EX-GB-XXX
- Color Temperature:Pure White
- Emitting Color:White
- LED Chips Brand:Osram
- Certification:CCC, CE, C-tick, EMC, Energy Star, ETL, FCC, LVD, PSE, RoHS, SAA, SASO, UL
- Transport Package:Carton Box
- Specification:400x400x250mm
- Trademark:LCD brand
- Origin:Shenzhen City, China
- HS Code:9405409000
- Production Capacity:50000PCS , Year
Description
Product Pictures:
Installation
• Mounting options include:
• Adjustable U-Bracket for ceiling, wall, etc.
• Pendant
• For installations where power surge may be possible, NICOR recommends installing additional
surge protection at the electrical distribution panel.

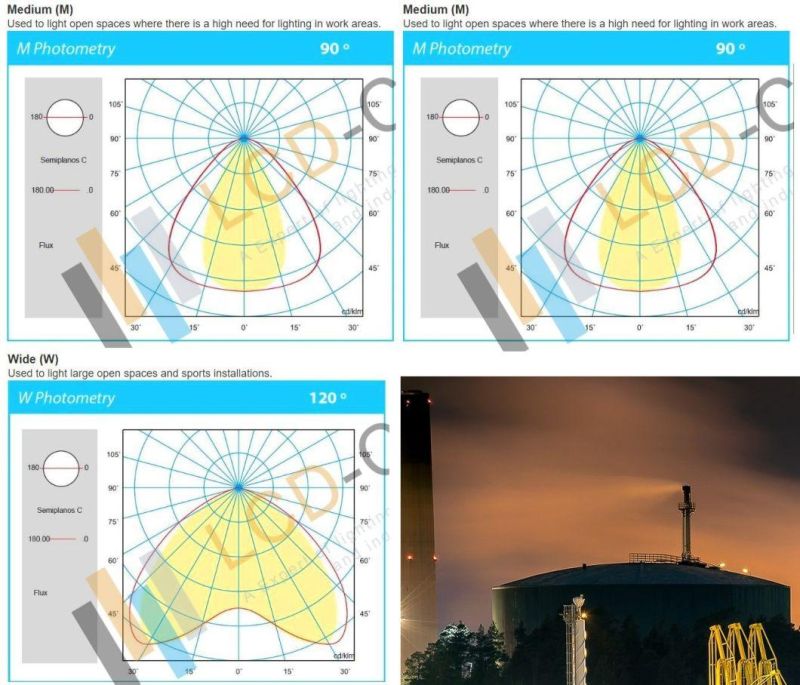

Photometric Data (LIGHT DISTRIBUTION CURVE)
LED Explosion proof High Bay & flood Light for hazardous location
Feature:
• Available from 100W (>10,000lm)- 200W (>22,000lm )
• Offered with 5 mounting options: Ceiling mount, Drop mount, Wall mount, U-Bracket mount, Pole mount
• 1-10V Dimming is available(dimming and non-dimming optional)
• Motion sensor, photocell and Controller options are available
• 50,000+ hours LED lifespan
• High Quality LM80 Certify Chip
• Operation temp: -40°C to +50°C
• 70% - 80% saving compare to HPS/MH
• Material: Die Cast Aluminum
• Lens: Super Clear Tempered Glass
• Diver: high reliability and long life power supply
• Industry-leading efficacy: up to 110-140 LPW
• Standard: IECEX/ATEX:IEC60079-0/l/28/31
ATEX & IECEx: Zone 1 & 21, Zone 2 & 22; IP66
IEC/EN 60079-0,1,28,31;
Ex Mark: II 2G Ex db op is IIC T4...T5…T6 Gb;
II 2D Ex tb op is IIIC T103°C ... T98°C ... T93°C Db;
Model No. Power(W) Lumens(lm) Color temperature Input Voltage Current Weight(kg) Dimensions (mm)
LCD-CES-J20 20W 1300 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 4.0Kg 200x200x147
LCD-CES-J30 30W 2600 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 4.0Kg 200x200x147
LCD-CES-J40 40W 3900 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 4.0Kg 200x200x147
LCD-CES-J60 60W 6500 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 7.5Kg 300x300x165
LCD-CES-J80 80W 10400 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 7.5Kg 300x300x165
LCD-CES-J100 100W 13000 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 7.5Kg 300x300x165
LCD-CES-J120 120W 19500 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 10.5Kg 400x400x169
LCD-CES-J150 150W 26000 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 10.5Kg 400x400x169
LCD-CES-J185 185W 39000 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 10.5Kg 400x400x169
SUITABLE FOR: Mining Sites, Heavy Industrials, Storage Facility, Paper mills, Wastewater Treatment Plants, Loading Docks, Platforms, Shipyards, Chemical Processing Facility, Petrochemical Processing Facility. The Flood light Series LED Luminaires are designed for installations where moisture, dirt, dust, corrosion and vibration may be present, or NEMA 3 and 4X areas where wind, water, snow or high ambient can be expected. They can be used in locations made hazard-ous by the presence of flammable vapors or gases or combustible dusts as defined by the NEC and IEC and Atex.CES-J Series are ideal for retrofit of existing HPS/MH and offer higher efficacy for increased energy savings, lower maintenance costs and shorter paybacks.
Best-in-class system efficacy - Up to 130 Lm / W
Universal Voltage: AC 100~277V / 347~480V (50/60Hz)
Instant illumination and restrike - no warm-up time required
Wide ambient temp. range from - 40 C to + 60 C ( -40 F ~ + 140 F)
Safe and reliable heat transfer - Offering a T-rating of T6 ( CI D1 )

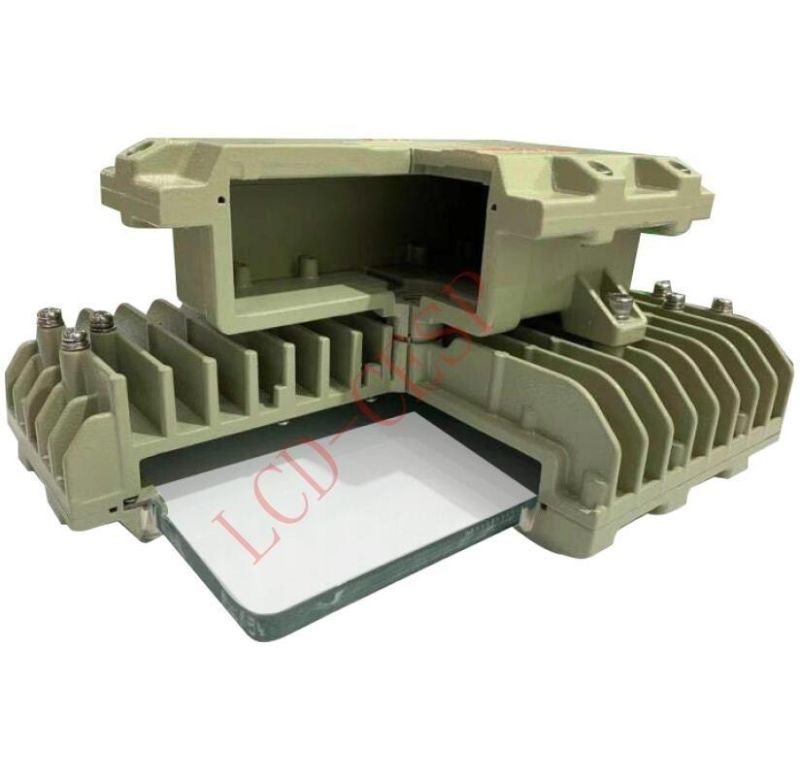

Shock-and vibration-resistant - Durable LEDs with solder-less board connection Copper-free aluminum body and frame -corrosion resistant
All exposed fasteners with quality stainless steel
High Temperature silicone gasketing
Thermal shock and impact resistant glass lens
Harsh & Hazardous Duty
Zone 1 & Zone 21
Zone 2 & Zone 22
Class I, Div. 2, Group A,B,C,D
Class II, Div. 2, Groups F,G
Class III
Enclosed and gasketed
Wet Locations / Type 4X / IP 66
UL-1598/8750 for LED Lighting
UL-1598(A)
UL-844 and CSA C22.2 for Hazardous locations DLC 4.0 Premium
(1)DC available on special request
(2)Warm white available indent only
*AC Current rating at 85 ~ 265VAC
**Black housing
***Marine coating
