• Model NO.：LCD-GYD780-150-LN60 , LCD-CES-EX-GB-XXX
• Color Temperature：Pure White
• Emitting Color：White
• LED Chips Brand：Bridgelux
• Certification：CCC, CE, C-tick, EMC, Energy Star, ETL, FCC, LVD, PSE, RoHS, SAA, SASO, UL, Atex Iecex
• Transport Package：Carton Box
• Specification：400x400x250mm
• Trademark：LCD brand
• Origin：Shenzhen City, China
• HS Code：9405409000
• Production Capacity：50000PCS , Year

50W / 80W /100W ATEX & IECEx Flood & high bay lightLCD-GYD780-50/80/100LEDsBrand: CreeCCT: 3000k, 4000k, 6000KEfficiency: 135lm/wLumen: 6250-13500lmCRI:75Test: LM80Beam Angle60° / 90° / 120° degreeDriverBrand: MeanwellPF: 0.95Efficiency: 90%Voltage: 100~277vAC or 12-32VDCFrequency: 50/60HzCurrent: 1.44 AInstructureMaterial: 12mm flame proof Aluminum alloy + 15mm Temple glassConnecting terminals: 3 cores standardGland: 1 x M25 or 1xM20Support: BracketWaterproofIP66ATEX InformationCertificate: TUV 18 ATEX 8298 XMarks: D II 2 G Ex db IIB T6 Gb / D II 2 D Ex tb IIIC T80°C Db IP66Zone 1& 21, 2 & 22IECEx InformationCertificate: IECEx TUR 18.0064 XMarks: Ex db IIB T6 Gb/ Ex tb IIIC T80°C DbZone 1& 21, 2 & 22Working Temp.:T -30 °C up to +55 °CWeight10KGWarranty5 years

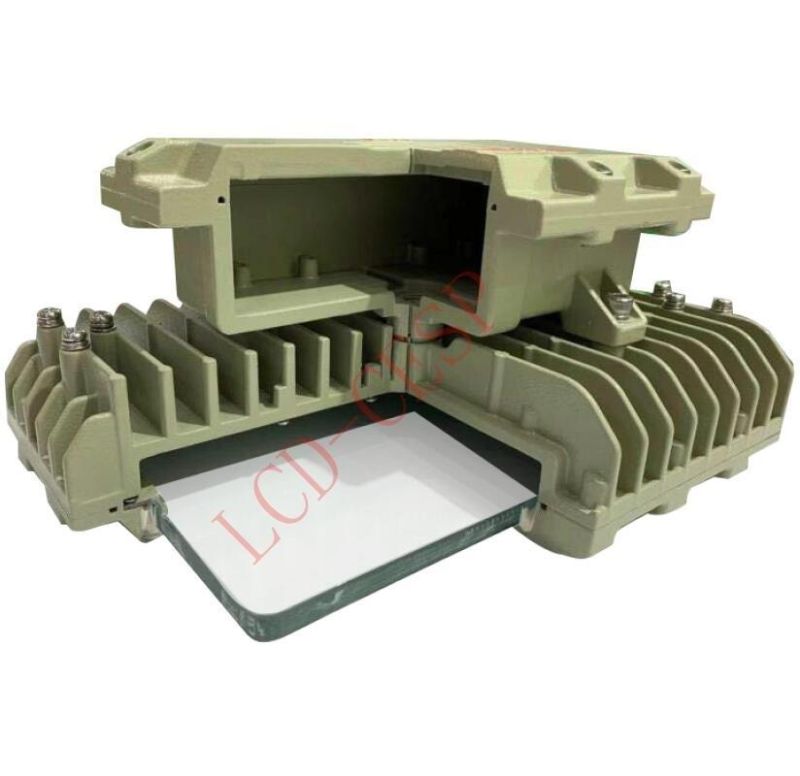

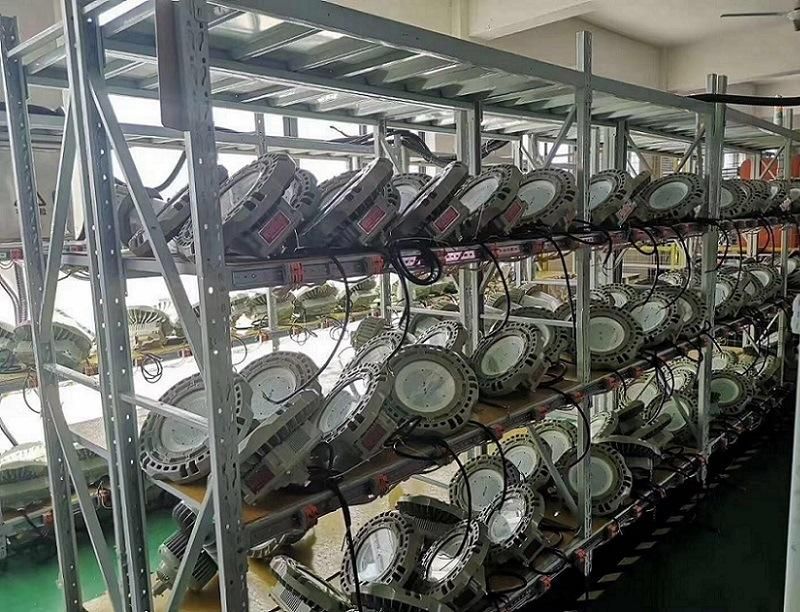

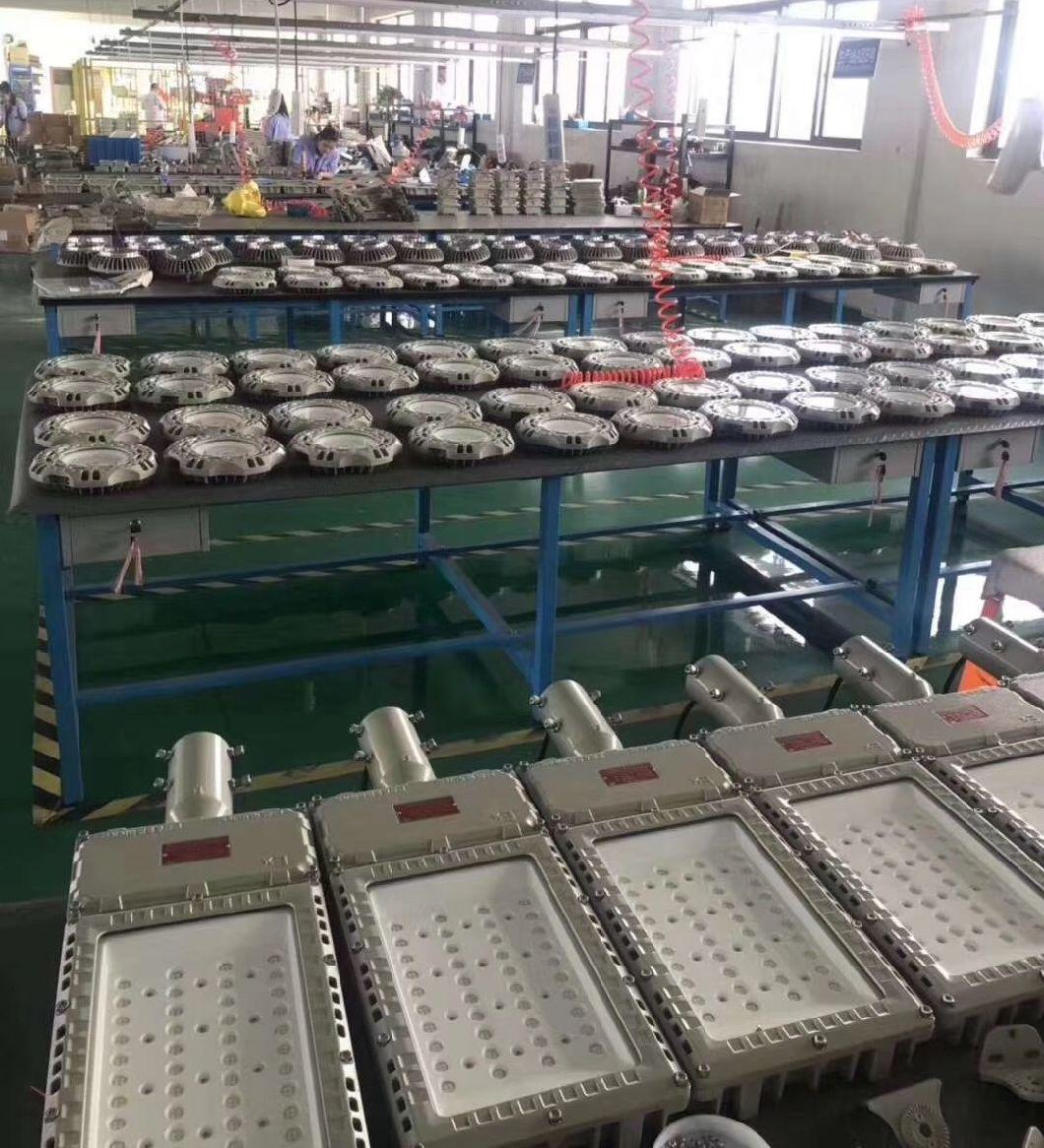

Product Pictures:

Installation
• Mounting options include:
• Adjustable U-Bracket for ceiling, wall, etc.
• Pendant
• For installations where power surge may be possible, NICOR recommends installing additional
surge protection at the electrical distribution panel.

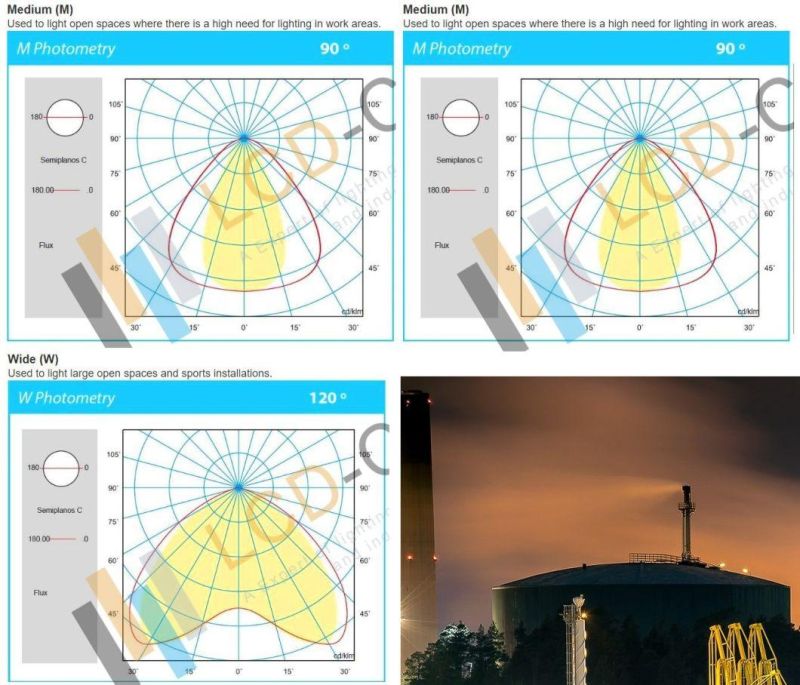

Photometric Data (LIGHT DISTRIBUTION CURVE)

LCD-CES-EX-GB-01 Series
LED Explosion proof High Bay & flood Light for hazardous location

Feature:
•    Available from 100W (>10,000lm)- 200W (>22,000lm )
•    Offered with 5 mounting options: Ceiling mount, Drop mount, Wall mount, U-Bracket mount, Pole mount
•    1-10V Dimming is available(dimming and non-dimming optional)
•    Motion sensor, photocell and Controller options are available
•    50,000+ hours LED lifespan
•    High Quality LM80 Certify Chip
•    Operation temp: -40°C to +50°C
•    70% - 80% saving compare to HPS/MH
•    Material: Die Cast Aluminum
•    Lens: Super Clear Tempered Glass
•    Diver: high reliability and long life power supply
•    Industry-leading efficacy: up to 110-140 LPW
•    Standard: IECEX/ATEX:IEC60079-0/l/28/31
ATEX & IECEx: Zone 1 & 21, Zone 2 & 22; IP66
                          IEC/EN 60079-0,1,28,31;
Ex Mark: II 2G Ex db op is IIC T4...T5…T6 Gb;
                II 2D Ex tb op is IIIC T103°C ... T98°C ... T93°C Db;
Model No.           Power(W)      Lumens(lm)      Color temperature                     Input Voltage     Current      Weight(kg)        Dimensions (mm)

LCD-CES-J20       20W               1300              3000k / 4000k / 6500K              85 ~ 265VAC         0.12A        4.0Kg                    200x200x147
LCD-CES-J30       30W               2600              3000k / 4000k / 6500K              85 ~ 265VAC         0.12A        4.0Kg                    200x200x147
LCD-CES-J40       40W               3900              3000k / 4000k / 6500K              85 ~ 265VAC         0.12A        4.0Kg                    200x200x147
LCD-CES-J60       60W               6500              3000k / 4000k / 6500K              85 ~ 265VAC         0.12A        7.5Kg                    300x300x165
LCD-CES-J80       80W              10400             3000k / 4000k / 6500K              85 ~ 265VAC         0.12A        7.5Kg                    300x300x165
LCD-CES-J100    100W             13000             3000k / 4000k / 6500K              85 ~ 265VAC         0.12A        7.5Kg                    300x300x165
LCD-CES-J120    120W             19500             3000k / 4000k / 6500K              85 ~ 265VAC         0.12A        10.5Kg                  400x400x169
LCD-CES-J150    150W             26000             3000k / 4000k / 6500K              85 ~ 265VAC         0.12A        10.5Kg                  400x400x169
LCD-CES-J185    185W             39000             3000k / 4000k / 6500K              85 ~ 265VAC         0.12A        10.5Kg                  400x400x169

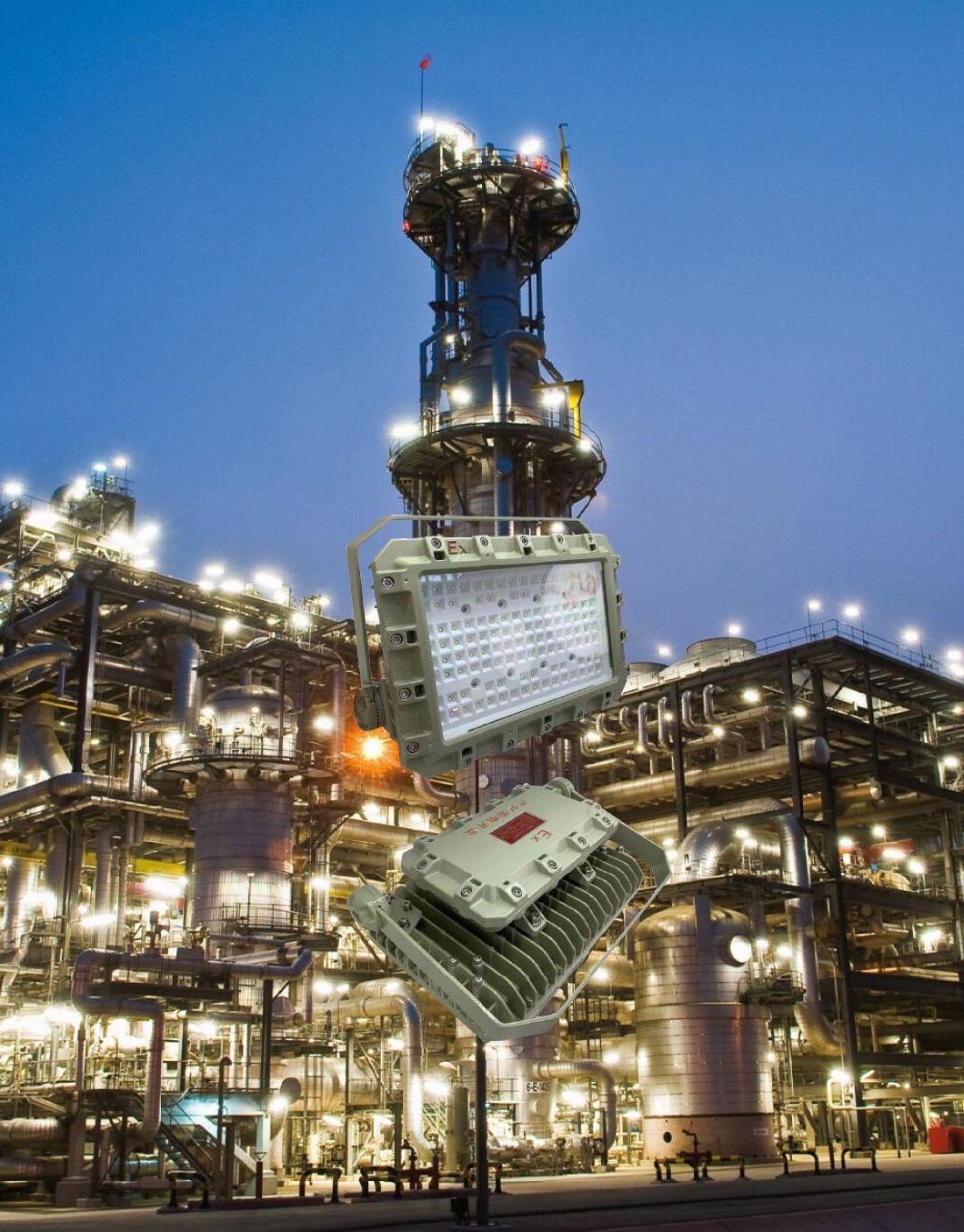

SUITABLE FOR: Mining Sites, Heavy Industrials, Storage Facility, Paper mills, Wastewater Treatment Plants, Loading Docks, Platforms, Shipyards, Chemical Processing Facility, Petrochemical Processing Facility. The Flood light Series LED Luminaires are designed for installations where moisture, dirt, dust, corrosion and vibration may be present, or NEMA 3 and 4X areas where wind, water, snow or high ambient can be expected. They can be used in locations made hazard-ous by the presence of flammable vapors or gases or combustible dusts as defined by the NEC and IEC and Atex.CES-J Series are ideal for retrofit of existing HPS/MH and offer higher efficacy for increased energy savings, lower maintenance costs and shorter paybacks.

Best-in-class system efficacy - Up to 130 Lm / W
Universal Voltage: AC 100~277V / 347~480V (50/60Hz)
Instant illumination and restrike - no warm-up time required
Wide ambient temp. range from - 40 C to + 60 C ( -40 F ~ + 140 F)
Safe and reliable heat transfer - Offering a T-rating of T6 ( CI D1 )
Shock-and vibration-resistant - Durable LEDs with solder-less board connection Copper-free aluminum body and frame -corrosion resistant
All exposed fasteners with quality stainless steel
High Temperature silicone gasketing
Thermal shock and impact resistant glass lens
Harsh & Hazardous Duty

Zone 1 & Zone 21
Zone 2 & Zone 22
Class I, Div. 2,  Group A,B,C,D
Class II, Div. 2, Groups F,G
Class III
Enclosed and gasketed
Wet Locations / Type 4X / IP 66
UL-1598/8750 for LED Lighting
UL-1598(A)
UL-844 and CSA C22.2 for Hazardous locations DLC 4.0 Premium


(1)DC available on special request
(2)Warm white available indent only
*AC Current rating at 85 ~ 265VAC
**Black housing
***Marine coating
