• Model NO.：LCD-BHD5102-40
• Color Temperature：Warm White
• Emitting Color：Warm White
• LED Chips Brand：Nichia
• Certification：CCC, CE, C-tick, EMC, Energy Star, ETL, FCC, LVD, PSE, RoHS, SAA, SASO, UL, Atex Iecex TUV
• Transport Package：Carton Box
• Specification：400x400x250mm
• Trademark：LCD brand
• Origin：Shenzhen City, China
• HS Code：9405409000
• Production Capacity：50000PCS , Year

ParameterValue (unit)Supply voltage100-240VAC 50/60Hz,Apparatus category:II 3GDATEX marking for zone 2II3G Ex nR IIC T6 GcATEX marking for zone 22II 3D Ex tc IIIC T80 ºC Dc IP66Certificate numberTÜV 18 ATEX 8228/IECEx TUR 18.0028StandardsEN 60079-0:2012/A11:2013; IEC60079-0:2011 Edition 6.0; EN 60079-15:2010; IEC 60079-15:2010 Edition 4.0; EN 60079-31:2014; IEC60079-31:2013 Edition 2.0.Protection classclass I (II option)Ingress protectionIP 66Resistance to shockIK09Allowable ambient temperatureT: - 30ºC~+ 50ºClighting of sourceLUMILEDs SMD3030Power10 W - 60 WCable entryTwo entries Ex e M25 & M27x1,5 for cable diameters Ø6-15 mm,Through wiring3 x 2,5 mm2, max. 16 A,(entry and exit on one side)Connecting terminals (max)L, N, Ground - max.4 mm2Colour temperature4000K (optionally 3000K, 5000K, 6500K)Estimated service life:70,000h at Tamb=40°CExternal dimensions125x113x720(mm) 125x113x1020(mm) 125x113x1320(mm)

Zones 1 & 21or 2 & 22 Linear type luminaire

LCD-BHD51 Ex LED luminaire is also intended for general lighting industrial high bays and:
• spaces classified to zone 2,22 (optionally 21) hazardous by dust, gas, vapour and mist of flammable
liquids explosion in temperature class up to T6
• luminaire for indoor or outdoor use
• additional spaces where occurence of high dust concentration and water splashes are possible, such as:

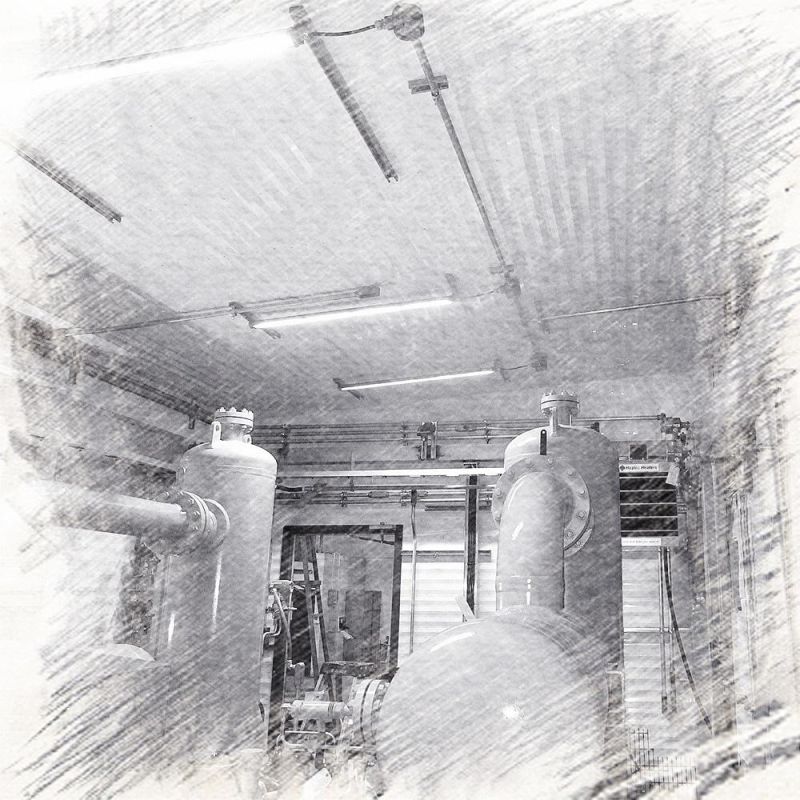

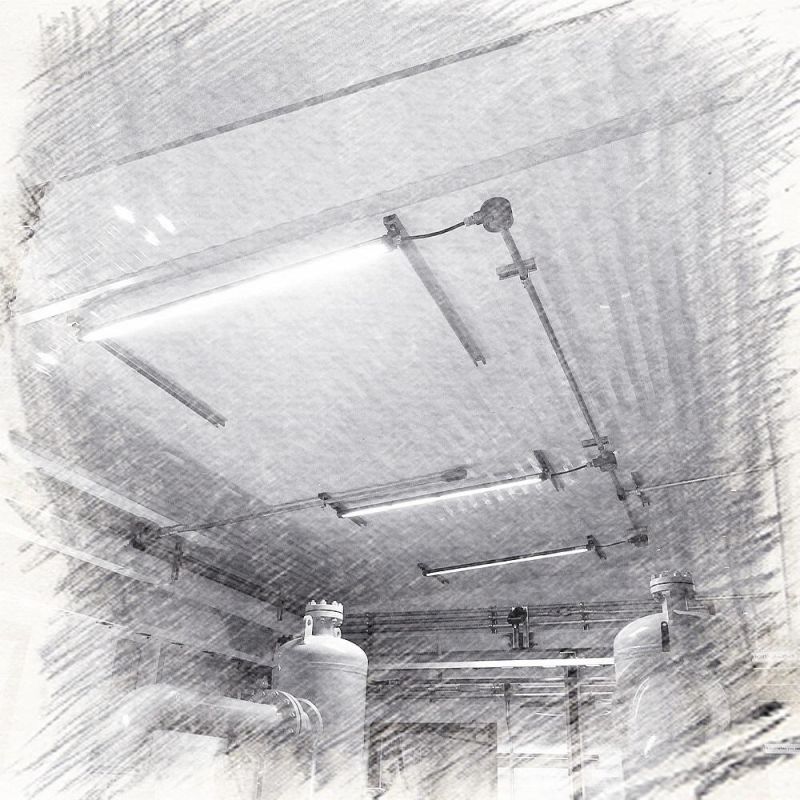

boiler-rooms, wash-rooms, garrages, island station roofs, warehouses, processing lines for chemical industry,
oil and gas industry,loose mining and building material industry etc.

Advantages

• robust and compact design
• quick, simple and easy installation
• optional installation of lampshade on hinges during
fluorescent lamp replacement
• high resistance to a corrosive industrial environment,
• high luminous efficacy- 0.9
• high-quality ignition systems
• UV-resistant

CONSTRUCTION

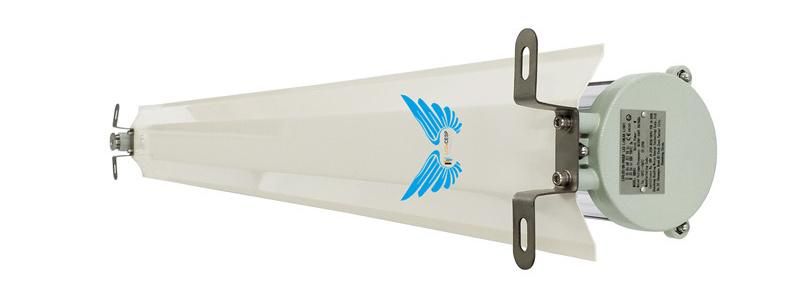

LCD-BHD51 series of explosion-proof LED linear light is designed and manufactured with a small size, light weight, long life, pollution-free, maintenance-free, safe, energy saving, durable and environmental-friendly Explosion-proof LED linear light.

Housing: high light transmittance PC material , the strength of more than 4J, can reduce the damage to the light in the abnormal operation.
Diffuser: PC polycarbonate plastic
Gasket(waterproof O-ring): Nitrile rubber, good aging and corrosion resistance.
Light shell: Aluminum alloy high pressure die-casting, with good microstructure, hardness and wear resistance

Fasteners: STS304 stainless steel with high corrosion resistance and high strength
The light fitting accessories and lamp housing split structure design, easy installation and maintenance; selection of imported light source chip energy saving, environmental protection, high brightness, life expectancy up to 100,000 hours.

TECHNICAL DATA

MODEL WATTAGE10/20W40W60WLUMEN OUTPUT1300-2400 LM4800 LM7200 LMDIMENSIONS28.3 x 4.4 x 5 in40 x 4.4 x 5 in52 x 4.4 x 5 in(720 x 113 x 125 mm)(1020 x 113 x 125 mm)(1320 x 113 x125 mm)NET FIXTURE WEIGHT (with PM type of mounting)7.5 lbs (3.4 kg)8.4 lbs (3.8 kg)9.25 lbs (4.2 kg)ENCLOSURE MATERIALCopper free aluminum alloy and PC pipeFINISHHigh voltage electrostatic spraying surfaceHARDWARE AND MOUNTINGStainless steel parts and screws with high anti-corrosion performanceCABLE GLANDS AND CONNECTORSClassified for CID1 nickel plated brass adapter from Atex Ex nR M27LENSN/ALIGHT SOURCELumiled 3030COLOR RENDITION INDEX (CRI)> 80INPUT POWER (+25°C)20W40W60WFIXTURE EFFICIENCY120 LPW120 LPW120 LPWLED DRIVERLifudLifudLifud100-240VAC100-240VAC100-240VACLED DRIVER PROTECTIONShort circuit, over load protection, over voltage, open circuit protectionShort circuit, over load protection, over voltage, open circuit protectionShort circuit, over load protection, over voltage, open circuit protectionSURGE PROTECTION4 kV4 kV4 kVPOWER FACTOR> 0.9> 0.9> 0.9THD (total harmonic distortion)<20%<20%<20%INRUSH CURRENT<60А<60А<60АAMBIENT OPERATING TEMPERATURE-30°C to +50°C-30°C to +50°C-30°C to +50°CT-RATING for (+55°C)Т6Т6T6FIXTURE LIFE (+25°C)>50 000 hours>50 000 hours>50 000 hoursFIXTURE LIFE (+55°C)N/AN/AN/AFIXTURE LIFE (+65°C)N/AN/AN/AWARRANTY5 Year5 Years5 Years
LCD-CES-EX-GB-01 Series
LED Explosion proof High Bay & flood Light for hazardous location

Feature:
•    Available from 100W (>10,000lm)- 200W (>22,000lm )
•    Offered with 5 mounting options: Ceiling mount, Drop mount, Wall mount, U-Bracket mount, Pole mount
•    1-10V Dimming is available(dimming and non-dimming optional)
•    Motion sensor, photocell and Controller options are available
•    50,000+ hours LED lifespan
•    High Quality LM80 Certify Chip
•    Operation temp: -40°C to +50°C
•    70% - 80% saving compare to HPS/MH
•    Material: Die Cast Aluminum
•    Lens: Super Clear Tempered Glass
•    Diver: high reliability and long life power supply
•    Industry-leading efficacy: up to 110-140 LPW
•    Standard: IECEX/ATEX:IEC60079-0/l/28/31
ATEX & IECEx: Zone 1 & 21, Zone 2 & 22; IP66
                          IEC/EN 60079-0,1,28,31;
Ex Mark: II 2G Ex db op is IIC T4...T5…T6 Gb;
                II 2D Ex tb op is IIIC T103°C ... T98°C ... T93°C Db;

Specifications
ATEX & I ECEx: Operating temperature: -40°(to +55°( (-40° F to 131° F). LEDs: Long-life, high-efficiency, micro-power, surface mount LEDs.
Drivers(s):Class 2, 50/60Hz. 100 - 277V, 4kV standard, 6kV optional surge protection. Lifespan:50,000+hour LED lifespan based on IES LM-80 results & TM-21 calculations at 25°C. IP Rating:Ingress Protection rating of NEMA 4/4X (IP66) for dust and water. Housing: Die-cast aluminum housing. Mounting: U-Bracket, slipfitter or wall mount options available. Lens:High transmittance tempered glass. Effective Projected Area: EPA = 0.61. Vibration Rating: 3G vibration tested per ANSI C136.31
Dimming Driver: Driver includes dimming control wiring for 1-10V dimming systems. Requires separate 1-10V DC dimming circuit. Dims as low as 10%.(Optional
dimming and non-dimming). CCT: Available in 2700K ~ 6500K color temperature. CRI: Minimum CRI of ≥70.Beam angle: Standard distribution is NEMA high/low bay
lights (Type6). Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-years period. Color Uniformity:LCD-CES's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017. Finish: Formulated for high durability and long-lasting color. Green Technology: Mercury and UV free. RoHS-compliant components. IESNA LM-79 Testing: LCD LED luminaires have been tested by an independent laboratory in accordance with IESNALM-79.

Applications:
• Oil and gas refineries, drilling rigs, petrochemical facilities, food
and beverage facilities, platforms, loading docks, tunnels, outdoor
wall and stanchion mounted general area lighting, and where
flammable vapors, gases, ignitable dusts, fibers or flyings are
present
• Locations requiring continuous and consistent light levels in
extreme ambient temperatures
• Where extremely corrosive, wet, dusty, hot and/or cold conditions
exist
• Type 4X, marine, wet locations and hose-down environments
• Confined space or low ceiling areas, such as tunnels, utility
rooms, over doorways, entries, landings, etc.
• Areas requiring frequent on/off of lights
• Areas where maintenance is difficult or challenging
• Areas requiring shatter-protected products, such as food
processing facilities
• Outdoor wall or ceiling mounted area illumination
• Low mounting heights
• Classified and hazardous locations

***INDUSTRIEL PROJECTEUR
PROJECTEUR IP65
FOURNI AVEC UN CONNECTEUR DE LIAISON IP67
Extérieurs ou intérieurs. Éclairage de forte puissance
EXTERNAL PROJECTOR
PROJECTEUR INDUSTRIEL
PROJECTEUR HAUTE PUISSANCE 100W - 150W & 200W
Étanche LED ultra performant à choix de puissance intégré.

ILLUMINAZIONE INDUSTRIALE
FARETTI
Proiettore rettangolare
Proyector rectangular / Proyector cuadrado
Proiettore Quadro
Proiettore a LED
Proyector a LED
LED PER ILLUMINAZIONE COMMERCIALE E INDUSTRIALE
un proiettore a led dimmerabile 1-10V dotato di un driver  1-10V
lampade a led, faretti led da interno, plafoniere led, luci led da incasso, spot a led
L'illuminazione industriale led
lampade industriali
lampade led industriali
lampadario industrial
l'illuminazione led industrial
l'illuminazione industriale a led
l'illuminazione industriale
L'illuminazione industriale led
dell'illuminazione per ufficio
lampada ufficio
l'illuminazione led industrial
plafoniere industriali led
plafoniera led industrial
L'illuminazione led industrial
lampade industriali led - lampade a led per capannoni industriali, fari a led per capannoni industriali, luci led per ufficio
luci industriali
l'illuminazione capannoni
fari industriali a led

Iluminación Industrial Exterior
Iluminación Industrial Exterior
Iluminación Exterior
PROYECTOR LED
Iluminación Led Industrial

Eclairage extérieur

Projecteurs de dernière
projecteurs
Eclairage technique
Eclairage commercial
Projecteurs linéaires professionnels
Projecteurs professionnels

Model No.           Power(W)      Lumens(lm)      Color temperature                     Input Voltage     Current      Weight(kg)        Dimensions (mm)

LCD-CES-J20       20W               1300              3000k / 4000k / 6500K              85 ~ 265VAC         0.12A        4.0Kg                    200x200x147
LCD-CES-J30       30W               2600              3000k / 4000k / 6500K              85 ~ 265VAC         0.12A        4.0Kg                    200x200x147
LCD-CES-J40       40W               3900              3000k / 4000k / 6500K              85 ~ 265VAC         0.12A        4.0Kg                    200x200x147
LCD-CES-J60       60W               6500              3000k / 4000k / 6500K              85 ~ 265VAC         0.12A        7.5Kg                    300x300x165
LCD-CES-J80       80W              10400             3000k / 4000k / 6500K              85 ~ 265VAC         0.12A        7.5Kg                    300x300x165
LCD-CES-J100    100W             13000             3000k / 4000k / 6500K              85 ~ 265VAC         0.12A        7.5Kg                    300x300x165
LCD-CES-J120    120W             19500             3000k / 4000k / 6500K              85 ~ 265VAC         0.12A        10.5Kg                  400x400x169
LCD-CES-J150    150W             26000             3000k / 4000k / 6500K              85 ~ 265VAC         0.12A        10.5Kg                  400x400x169
LCD-CES-J185    185W             39000             3000k / 4000k / 6500K              85 ~ 265VAC         0.12A        10.5Kg                  400x400x169

SUITABLE FOR: Mining Sites, Heavy Industrials, Storage Facility, Paper mills, Wastewater Treatment Plants, Loading Docks, Platforms, Shipyards, Chemical Processing Facility, Petrochemical Processing Facility. The Flood light Series LED Luminaires are designed for installations where moisture, dirt, dust, corrosion and vibration may be present, or NEMA 3 and 4X areas where wind, water, snow or high ambient can be expected. They can be used in locations made hazard-ous by the presence of flammable vapors or gases or combustible dusts as defined by the NEC and IEC and Atex.CES-J Series are ideal for retrofit of existing HPS/MH and offer higher efficacy for increased energy savings, lower maintenance costs and shorter paybacks.

Best-in-class system efficacy - Up to 130 Lm / W
Universal Voltage: AC 100~277V / 347~480V (50/60Hz)
Instant illumination and restrike - no warm-up time required
Wide ambient temp. range from - 40 C to + 60 C ( -40 F ~ + 140 F)
Safe and reliable heat transfer - Offering a T-rating of T6 ( CI D1 )
Shock-and vibration-resistant - Durable LEDs with solder-less board connection Copper-free aluminum body and frame -corrosion resistant
All exposed fasteners with quality stainless steel
High Temperature silicone gasketing
Thermal shock and impact resistant glass lens
Harsh & Hazardous Duty

Zone 1 & Zone 21
Zone 2 & Zone 22
Class I, Div. 2,  Group A,B,C,D
Class II, Div. 2, Groups F,G
Class III
Enclosed and gasketed
Wet Locations / Type 4X / IP 66
UL-1598/8750 for LED Lighting
UL-1598(A)
UL-844 and CSA C22.2 for Hazardous locations DLC 4.0 Premium


(1)DC available on special request
(2)Warm white available indent only
*AC Current rating at 85 ~ 265VAC
**Black housing
***Marine coating
