Atex Iecex Outdoor Indoor High Performance Light for Installation Within Safety Critical Areas Lighting Petro Chemistry 20W 40W 60W LED Flood Light 5 Years
LCD (HK) -CESP LIGHTING CO., LIMITED- Lamp Body Material:Aluminum Alloy
- IP Rating:IP66
- Base Type:LED Engine
- Irradiated Area:10-15m²
- Input Voltage:12v
- Power:20-60W
Base Info
- Model NO.:LCD-BHD5100-40
- Color Temperature:3000K 4000K 6500K
- Emitting Color:Warm White
- LED Chips Brand:Lumileds SMD3030
- Certification:CCC, CE, C-tick, EMC, Energy Star, ETL, FCC, LVD, PSE, RoHS, SAA, SASO, UL, Atex Iecex
- Transport Package:Carton Box
- Specification:300x300x250mm
- Trademark:LCD brand
- Origin:Shenzhen City, China
- HS Code:9405409000
- Production Capacity:50000PCS , Year
Description

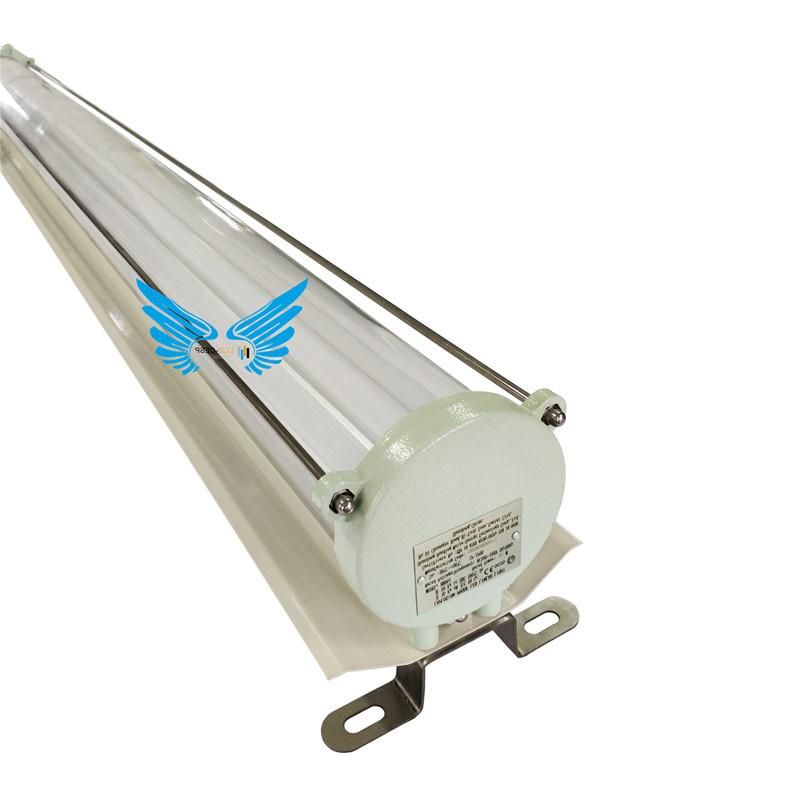

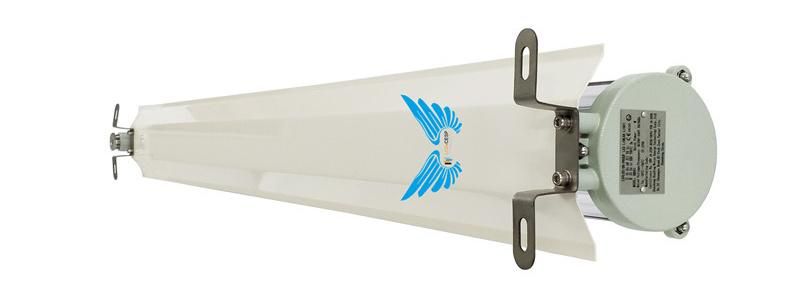

Zones 1 & 21or 2 & 22 Linear type luminaire
LCD-BHD51 Ex LED luminaire is also intended for general lighting industrial high bays and:
• spaces classified to zone 2,22 (optionally 21) hazardous by dust, gas, vapour and mist of flammable
liquids explosion in temperature class up to T6
• luminaire for indoor or outdoor use

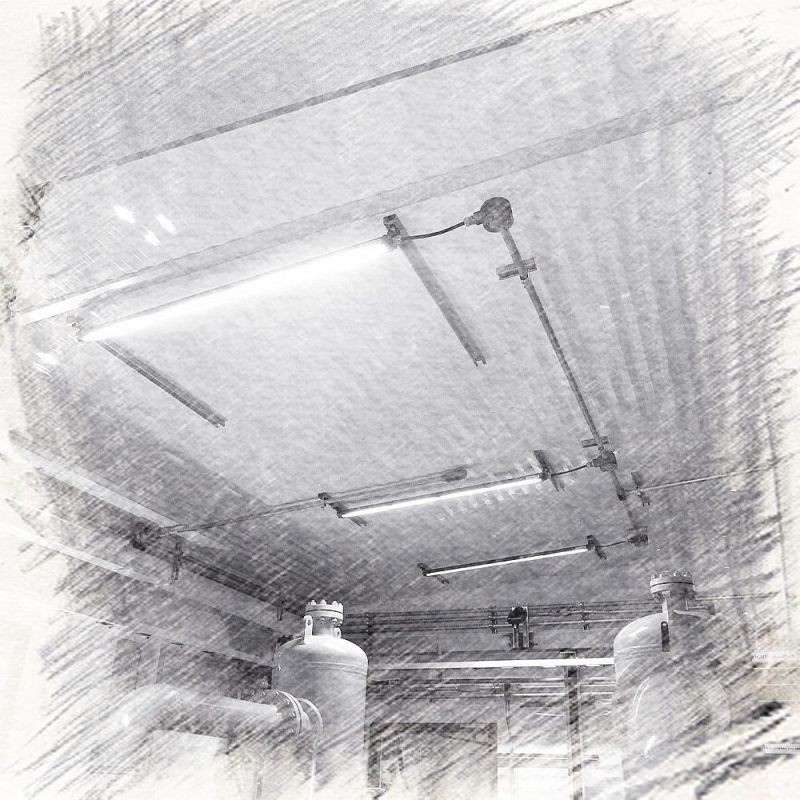

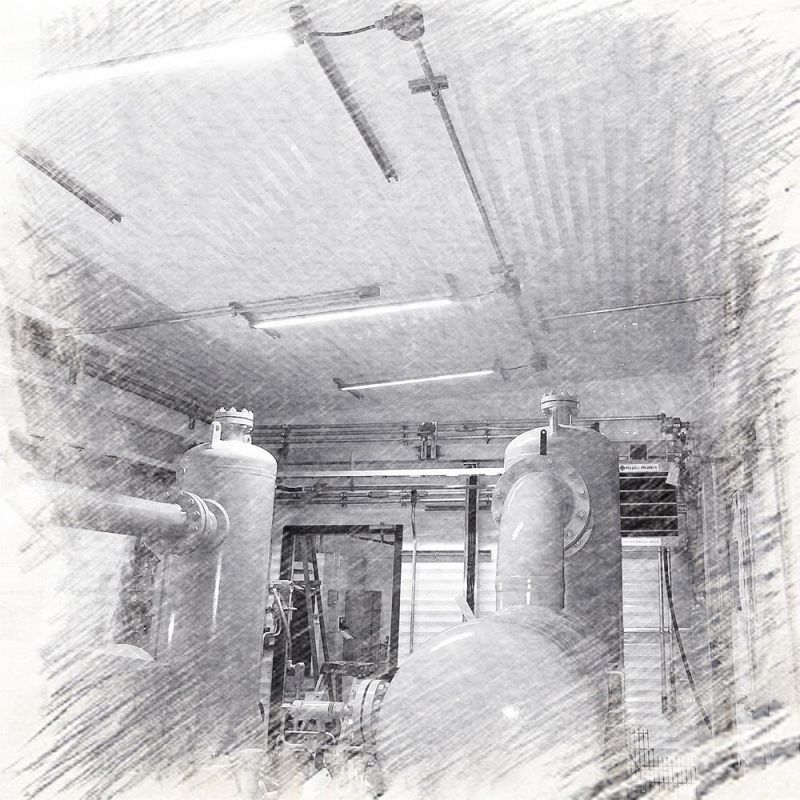

• additional spaces where occurence of high dust concentration and water splashes are possible, such as:
boiler-rooms, wash-rooms, garrages, island station roofs, warehouses, processing lines for chemical industry,
oil and gas industry,loose mining and building material industry etc.
Advantages
• robust and compact design
• quick, simple and easy installation
• optional installation of lampshade on hinges during
fluorescent lamp replacement
• high resistance to a corrosive industrial environment,
• high luminous efficacy- 0.9
• high-quality ignition systems
• UV-resistant
CONSTRUCTION
LCD-BHD51 series of explosion-proof LED linear light is designed and manufactured with a small size, light weight, long life, pollution-free, maintenance-free, safe, energy saving, durable and environmental-friendly Explosion-proof LED linear light.
Housing: high light transmittance PC material , the strength of more than 4J, can reduce the damage to the light in the abnormal operation.
Diffuser: PC polycarbonate plastic
Gasket(waterproof O-ring): Nitrile rubber, good aging and corrosion resistance.
Light shell: Aluminum alloy high pressure die-casting, with good microstructure, hardness and wear resistance
Fasteners: STS304 stainless steel with high corrosion resistance and high strength
The light fitting accessories and lamp housing split structure design, easy installation and maintenance; selection of imported light source chip energy saving, environmental protection, high brightness, life expectancy up to 100,000 hours.
TECHNICAL DATA
LCD-CES-EX-GB-01 Series
LED Explosion proof High Bay & flood Light for hazardous location
Feature:
• Available from 100W (>10,000lm)- 200W (>22,000lm )
• Offered with 5 mounting options: Ceiling mount, Drop mount, Wall mount, U-Bracket mount, Pole mount
• 1-10V Dimming is available(dimming and non-dimming optional)
• Motion sensor, photocell and Controller options are available
• 50,000+ hours LED lifespan
• High Quality LM80 Certify Chip
• Operation temp: -40°C to +50°C
• 70% - 80% saving compare to HPS/MH
• Material: Die Cast Aluminum
• Lens: Super Clear Tempered Glass
• Diver: high reliability and long life power supply
• Industry-leading efficacy: up to 110-140 LPW
• Standard: IECEX/ATEX:IEC60079-0/l/28/31
ATEX & IECEx: Zone 1 & 21, Zone 2 & 22; IP66
IEC/EN 60079-0,1,28,31;
Ex Mark: II 2G Ex db op is IIC T4...T5…T6 Gb;
II 2D Ex tb op is IIIC T103°C ... T98°C ... T93°C Db;
Specifications
ATEX & I ECEx: Operating temperature: -40°(to +55°( (-40° F to 131° F). LEDs: Long-life, high-efficiency, micro-power, surface mount LEDs.
Drivers(s):Class 2, 50/60Hz. 100 - 277V, 4kV standard, 6kV optional surge protection. Lifespan:50,000+hour LED lifespan based on IES LM-80 results & TM-21 calculations at 25°C. IP Rating:Ingress Protection rating of NEMA 4/4X (IP66) for dust and water. Housing: Die-cast aluminum housing. Mounting: U-Bracket, slipfitter or wall mount options available. Lens:High transmittance tempered glass. Effective Projected Area: EPA = 0.61. Vibration Rating: 3G vibration tested per ANSI C136.31
Dimming Driver: Driver includes dimming control wiring for 1-10V dimming systems. Requires separate 1-10V DC dimming circuit. Dims as low as 10%.(Optional
dimming and non-dimming). CCT: Available in 2700K ~ 6500K color temperature. CRI: Minimum CRI of ≥70.Beam angle: Standard distribution is NEMA high/low bay
lights (Type6). Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-years period. Color Uniformity:LCD-CES's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017. Finish: Formulated for high durability and long-lasting color. Green Technology: Mercury and UV free. RoHS-compliant components. IESNA LM-79 Testing: LCD LED luminaires have been tested by an independent laboratory in accordance with IESNALM-79.
Applications:
• Oil and gas refineries, drilling rigs, petrochemical facilities, food
and beverage facilities, platforms, loading docks, tunnels, outdoor
wall and stanchion mounted general area lighting, and where
flammable vapors, gases, ignitable dusts, fibers or flyings are
present
• Locations requiring continuous and consistent light levels in
extreme ambient temperatures
• Where extremely corrosive, wet, dusty, hot and/or cold conditions
exist
• Type 4X, marine, wet locations and hose-down environments
• Confined space or low ceiling areas, such as tunnels, utility
rooms, over doorways, entries, landings, etc.
• Areas requiring frequent on/off of lights
• Areas where maintenance is difficult or challenging
• Areas requiring shatter-protected products, such as food
processing facilities
• Outdoor wall or ceiling mounted area illumination
• Low mounting heights
• Classified and hazardous locations
***INDUSTRIEL PROJECTEUR
PROJECTEUR IP65
FOURNI AVEC UN CONNECTEUR DE LIAISON IP67
Extérieurs ou intérieurs. Éclairage de forte puissance
EXTERNAL PROJECTOR
PROJECTEUR INDUSTRIEL
PROJECTEUR HAUTE PUISSANCE 100W - 150W & 200W
Étanche LED ultra performant à choix de puissance intégré.
ILLUMINAZIONE INDUSTRIALE
FARETTI
Proiettore rettangolare
Proyector rectangular / Proyector cuadrado
Proiettore Quadro
Proiettore a LED
Proyector a LED
LED PER ILLUMINAZIONE COMMERCIALE E INDUSTRIALE
un proiettore a led dimmerabile 1-10V dotato di un driver 1-10V
lampade a led, faretti led da interno, plafoniere led, luci led da incasso, spot a led
L'illuminazione industriale led
lampade industriali
lampade led industriali
lampadario industrial
l'illuminazione led industrial
l'illuminazione industriale a led
l'illuminazione industriale
L'illuminazione industriale led
dell'illuminazione per ufficio
lampada ufficio
l'illuminazione led industrial
plafoniere industriali led
plafoniera led industrial
L'illuminazione led industrial
lampade industriali led - lampade a led per capannoni industriali, fari a led per capannoni industriali, luci led per ufficio
luci industriali
l'illuminazione capannoni
fari industriali a led
Iluminación Industrial Exterior
Iluminación Industrial Exterior
Iluminación Exterior
PROYECTOR LED
Iluminación Led Industrial
Eclairage extérieur
Projecteurs de dernière
projecteurs
Eclairage technique
Eclairage commercial
Projecteurs linéaires professionnels
Projecteurs professionnels
Model No. Power(W) Lumens(lm) Color temperature Input Voltage Current Weight(kg) Dimensions (mm)
LCD-CES-J20 20W 1300 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 4.0Kg 200x200x147
LCD-CES-J30 30W 2600 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 4.0Kg 200x200x147
LCD-CES-J40 40W 3900 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 4.0Kg 200x200x147
LCD-CES-J60 60W 6500 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 7.5Kg 300x300x165
LCD-CES-J80 80W 10400 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 7.5Kg 300x300x165
LCD-CES-J100 100W 13000 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 7.5Kg 300x300x165
LCD-CES-J120 120W 19500 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 10.5Kg 400x400x169
LCD-CES-J150 150W 26000 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 10.5Kg 400x400x169
LCD-CES-J185 185W 39000 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 10.5Kg 400x400x169
SUITABLE FOR: Mining Sites, Heavy Industrials, Storage Facility, Paper mills, Wastewater Treatment Plants, Loading Docks, Platforms, Shipyards, Chemical Processing Facility, Petrochemical Processing Facility. The Flood light Series LED Luminaires are designed for installations where moisture, dirt, dust, corrosion and vibration may be present, or NEMA 3 and 4X areas where wind, water, snow or high ambient can be expected. They can be used in locations made hazard-ous by the presence of flammable vapors or gases or combustible dusts as defined by the NEC and IEC and Atex.CES-J Series are ideal for retrofit of existing HPS/MH and offer higher efficacy for increased energy savings, lower maintenance costs and shorter paybacks.
Best-in-class system efficacy - Up to 130 Lm / W
Universal Voltage: AC 100~277V / 347~480V (50/60Hz)
Instant illumination and restrike - no warm-up time required
Wide ambient temp. range from - 40 C to + 60 C ( -40 F ~ + 140 F)
Safe and reliable heat transfer - Offering a T-rating of T6 ( CI D1 )
Shock-and vibration-resistant - Durable LEDs with solder-less board connection Copper-free aluminum body and frame -corrosion resistant
All exposed fasteners with quality stainless steel
High Temperature silicone gasketing
Thermal shock and impact resistant glass lens
Harsh & Hazardous Duty
Zone 1 & Zone 21
Zone 2 & Zone 22
Class I, Div. 2, Group A,B,C,D
Class II, Div. 2, Groups F,G
Class III
Enclosed and gasketed
Wet Locations / Type 4X / IP 66
UL-1598/8750 for LED Lighting
UL-1598(A)
UL-844 and CSA C22.2 for Hazardous locations DLC 4.0 Premium
(1)DC available on special request
(2)Warm white available indent only
*AC Current rating at 85 ~ 265VAC
**Black housing
***Marine coating
